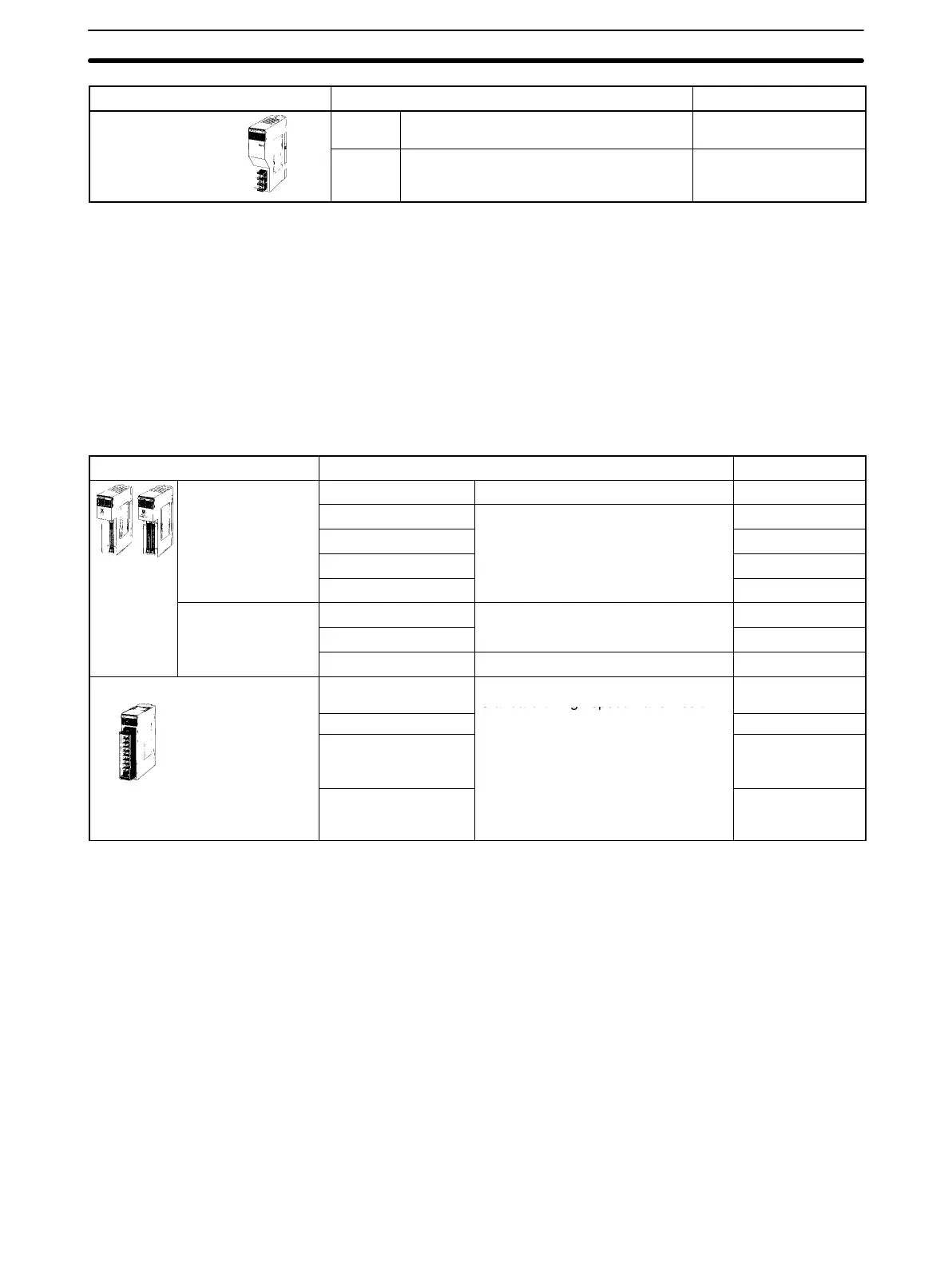

Omron C200HX Series User Manual

Appendix AStandard Models
99
Name Model numberSpecifications
B7A Interface Units 15 or 16
input pts
Connects to B7A Link Terminals. Standard
transmission delay.
C200H-B7AI1
16
output
pts
Connects to B7A Link Terminals. Standard
transmission delay.
C200H-B7AO1 (see
note)
Note 1. If the Interrupt Input Unit is mounted on an Expansion I/O Rack, the interrupt function cannot be used
and the Interrupt Input Unit will be treated as an ordinary 8-point Input Unit. Moreover, Interrupt Input
Units cannot be used on Slave Racks. In addition, Interrupt Input Units require that a version 2 (i.e., mod-
el numbers with a “-V2” suffix) Backplane be used at the CPU Rack. If an earlier version Backplane is
mounted, the interrupt function cannot be used. When mounting the C200H-OC225, C200H-OD212, or
C200H-B7AO1 to a Backplane, make sure that the model number of the Backplane includes the suffix
“-V1” or “-Vj.” The C200H-OC225, C200H-OD212, or C200H-B7AO1 cannot be mounted to any Back-
plane the model number of which does not include the suffix “-V1” or “-Vj.”
2. The C200H-OC225 can overheat if more than 8 outputs are turned ON simultaneously.
Group-2 I/O Units
Name Specifications Model number
DC Input Units 64 pts 12 VDC C200H-ID111
32 pts 24 VDC C200H-ID216
64 pts C200H-ID217
32 pts C200H-ID218
64 pts C200H-ID219
Transistor Output
Units
32 pts 16 mA at 4.5 V to 100 mA at 26.4 V C200H-OD218
Units
32 pts C200H-OD219
32 pts 0.5 A (5 A/Unit) at 24 VDC C200H-OD21B
B7A Interface Units 32 input
pts
Connects to B7A Link Terminals.
Standard or high-speed transmission
C200H-B7A12
32 output pts
S a da d o g speed a s ss o
delay.
C200H-B7A02
16 input and
16 output
points
C200H-B7A21
32 input and
32 output
points
C200H-B7A22
