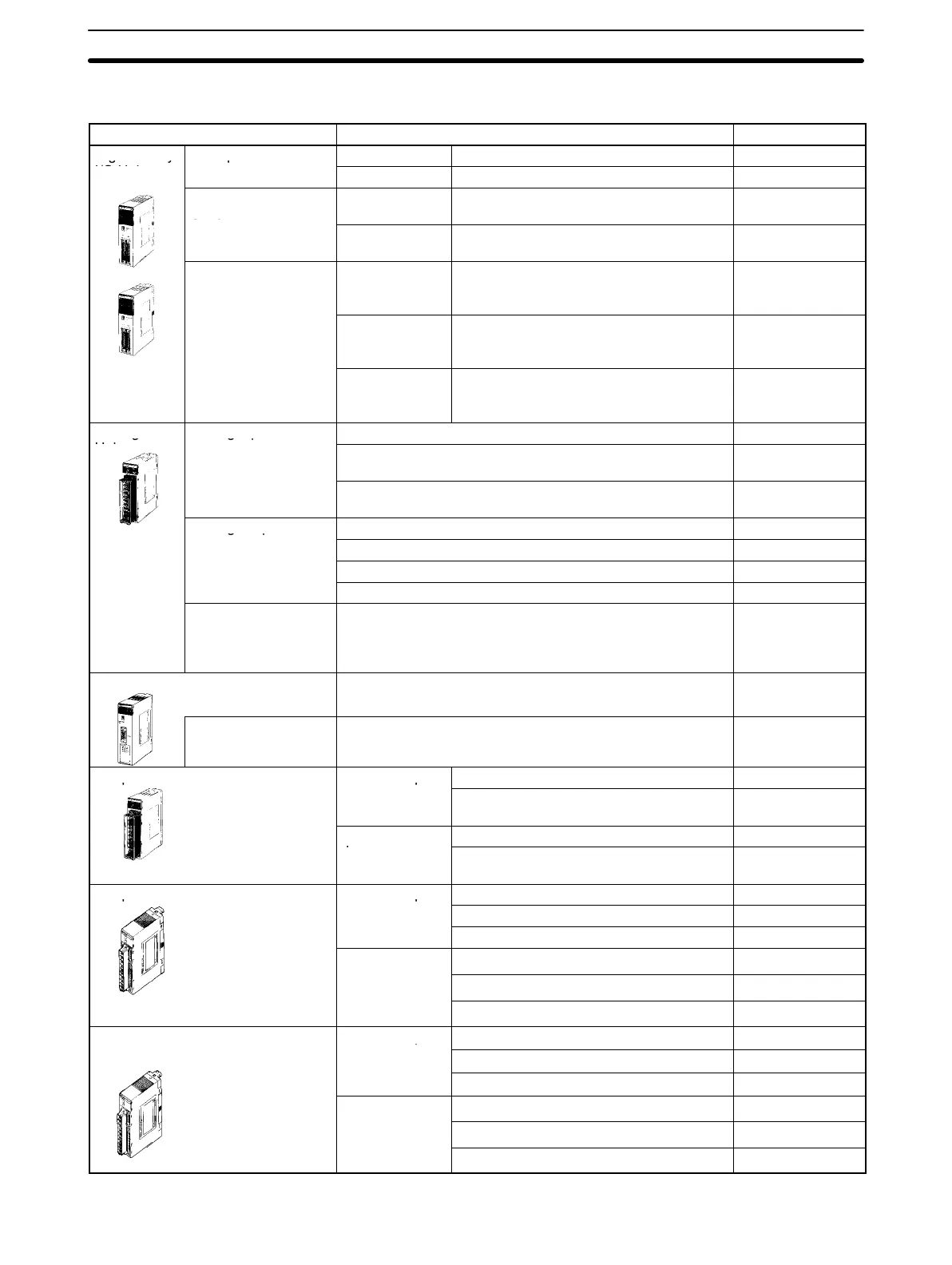

Omron C200HX Series User Manual

Standard Models Appendix A
100
Special I/O Units
Name Specifications Model number
High-density
I/O U i
DC Input Units
32 pts 5 VDC (TTL inputs); w/high-speed input C200H-ID501
gy
I/O Units
(see note 1)
p
32 pts 24 VDC; w/high-speed input C200H-ID215
(
see note
1)
Transistor Output
Units
32 pts 0.1 A, 24 VDC (useable as 128-point
dynamic output unit)
C200H-OD215
Us
32 pts 35 mA, 5 VDC (TTL outputs) (useable as
128-point dynamic output unit)
C200H-OD501
DC Input/Transistor
Output Units
16 input and 16
output pts
24-VDC inputs; w/high-speed input; 0.1-A,
24-VDC outputs (useable as 128-point
dynamic input unit)
C200H-MD215
16 input and 16
output pts
5-VDC TTL inputs; w/high speed input;
35-mA, 5-VDC TTL outputs (useable as
128-point dynamic input unit)
C200H-MD501
16 input and 16
output pts
12-VDC TTL inputs; w/high speed input;
12-VDC TTL outputs (useable as
128-point dynamic input unit)
C200H-MD115
Analog I/O
Ui
Analog Input Units 4 to 20 mA, 1 to 5/0 to 10 V (switchable); 4 inputs; 12 bits C200H-AD001
g
Units
gp
4 to 20 mA, 1 to 5/0 to 10/–10 to 10 V (switchable); 8 inputs;
12 bits or BCD
C200H-AD002
4 to 20 mA, 1 to 5/0 to 10/–10 to 10 V (switchable); 8 inputs;
16 bits
C200H-AD003
Analog Output Units 4 to 20 mA, 1 to 5/0 to 10 V (switchable); 2 outputs C200H-DA001
gp
4 to 20 mA, –10 to 10 V; 4 outputs C200H-DA002
1 to 5/0 to 10/–10 to 10 V (switchable); 8 outputs C200H-DA003
4 to 20 mA; 8 outputs C200H-DA004
Mixed Analog I/O
Units
4 to 20 mA, 1 to 5/0 to 10/–10 to 10 V (switchable); 2 inputs;
16 bits
4 to 20 mA, 1 to 5/0 to 10/–10 to 10 V (switchable);
2 outputs
C200H-MAD01
Fuzzy Logic Unit Programmed using the Fuzzy Support Software. Up to 8
inputs and 4 outputs.
C200H-FZ001
Fuzzy Support
Software
Available on either 3.5” or 5.25” floppy disks. C500-SU981-E
Temperature Sensor Units Thermocouple K(CA) or J(IC), switchable; 4 inputs C200H-TS001
p
p
K(CA) or L(Fe-CuNi) DIN standards;
4 inputs
C200H-TS002
Pt resistance
h
Pt 100 Ω; 4 inputs C200H-TS101
thermometer
Pt 100 Ω; 4 inputs; DIN and 1989 JIS
standards
C200H-TS102
Temperature Control Units Thermocouple
Transistor output C200H-TC001
p
p
Voltage output C200H-TC002
Current output C200H-TC003
Pt resistance
thermometer
Transistor output C200H-TC101
thermometer
Voltage output C200H-TC102
Current output C200H-TC103
Heat/Cool
TtCtlUit
Thermocouple
Transistor output C200H-TV001
Temperature Control Units
p
Voltage output C200H-TV002
Current output C200H-TV003
Pt resistance
thermometer
Transistor output C200H-TV101
thermometer
Voltage output C200H-TV102
Current output C200H-TV103
