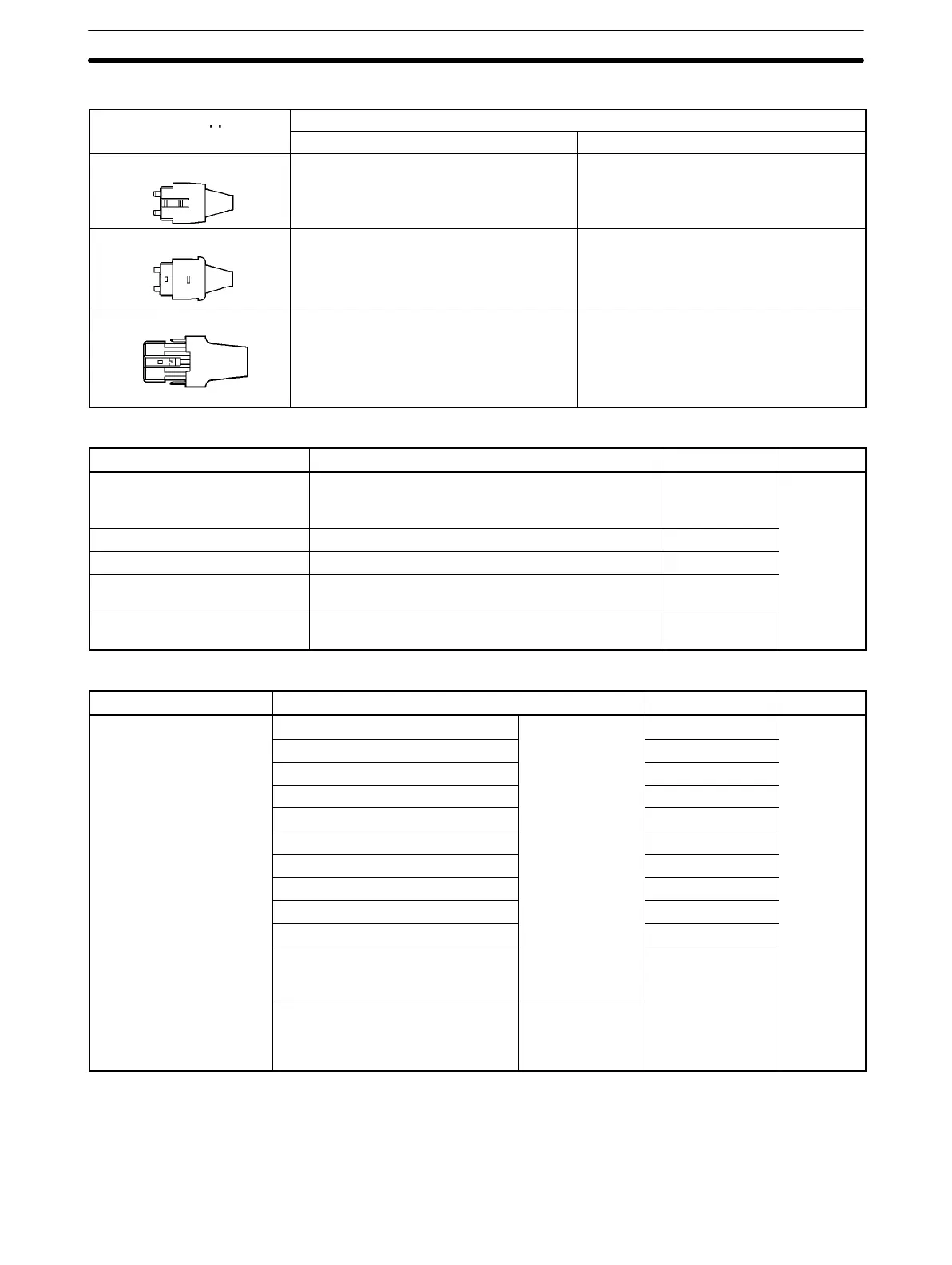

Standard Models Appendix A
106
Applicable Optical Fiber Connectors
Model number/Appearance
Applicable Units
pp
SYSMAC NET SYSMAC LINK
S3200-COCF2011 CV500-SNT31 CV500-SLK11
C1000H-SLK11
S3200-COCF2511 C200HS-SNT32 C200HW-SLK13/14
S3200-COCH62M S3200-LSU03-01E
S3200-NSUA1-00E
S3200-NSUG4-00E
S3200-NSB11-E
C500-SNT31-V4
B700-AL001
---
All Plastic Optical Fiber Cable for SYSMAC BUS/SYSMAC WAY
Name Specifications Model number Standards
All Plastic Optical Fiber Cable Cable only; order desired length in 5 m increments
between 5 and 100 m, or in increments of 200 m or
500 m.
3G5A2-PF002
---
Optical Connectors A Two optical connectors (brown) for APF (10 m max.) 3G5A2-CO001
Optical Connectors B Two optical connectors (black) for APF (8 to 20 m) 3G5A2-CO002
All Plastic Optical Fiber Cable
Set
1-m cable with an Optical Connector A connected to
each end
3G5A2-PF101
Optical Fiber Processing Kit Accessory: 125-mm nipper (Muromoto Tekko’s 550M)
for APF
3G2A9-TL101
Plastic Clad Optical Fiber Cable for SYSMAC BUS/SYSMAC WAY
Name Specifications Model number Standards
Plastic Clad Optical Fiber
Cables (indoor)
0.1 m, w/connectors
Ambient temp:
10° to 70°C
3G5A2-OF011 ---
Cables (indoor)
1 m, w/connectors
–10° to 70°C
3G5A2-OF101
2 m, w/connectors 3G5A2-OF201
3 m, w/connectors 3G5A2-OF301
5 m, w/connectors 3G5A2-OF501
10 m, w/connectors 3G5A2-OF111
20 m, w/connectors 3G5A2-OF211
30 m, w/connectors 3G5A2-OF311
40 m, w/connectors 3G5A2-OF411
50 m, w/connectors 3G5A2-OF511
Cable only; order desired length be-
tween 1 and 500 m in increments of
1 m.
3G5A2-OF002
Cable only; order desired length be-
tween 501 and 800 m in increments
of 1 m.
Ambient temp:
0° to 55°C (do
not expose to
direct sunlight)
