Omron CJ2H-CPU6*-EIP Series Connection Guide

7
．
Serial Communications Connection Procedure
33
7

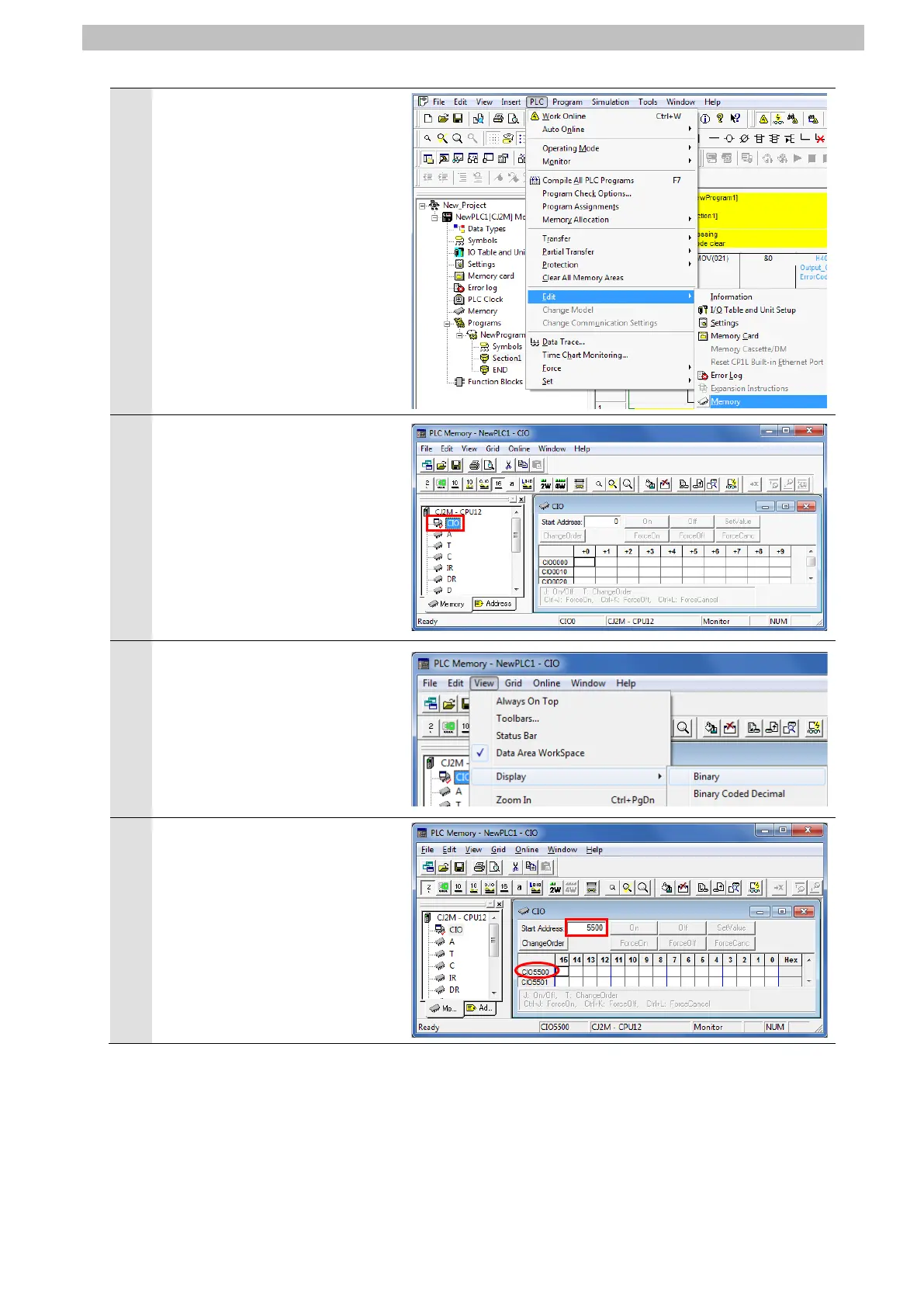

Select Edit - Memory from the
PLC Menu.
8
Double-click CIO on the Memory
Tab of the PLC Memory
Window.
9
Select Display - Binary from
the View Menu.
10
Enter 5500 in the Start Address
Field in the displayed CIO
Window.
Check that the start address
changes to CIO5500.
