9.5. Ladder program
9.5.1. Functional Components of the Ladder Program
The functional components of this program are shown below.
Major classification Minor classification Description
1.Initialization
processing
1.1.Response code clear
1.2.Control word setting
for CMND instruction
1.3.Send/receive symbol
setting
The area of use is cleared, and the
initialization setting is performed as a
preparation for communications.
2.CMND
instruction
execution
management
2.1.CMND instruction
executing
2.2.CMND instruction
execution processing
2.3.Normal/error detection
processing
The CMND instruction (Modbus-RTU
communication) is executed.
A normal end or an error end is detected
based on the related flags and receive
data.
3.Normal end state
management
3.1.Normal end
processing
3.2.Response code setting
The normal completion flag is turned ON.
The response code for a normal end is
set.
4.Error end state
management
4.1.Error end processing
4.2.Response code setting
The error end flag is turned ON.
The response code corresponding to the
error cause is set.

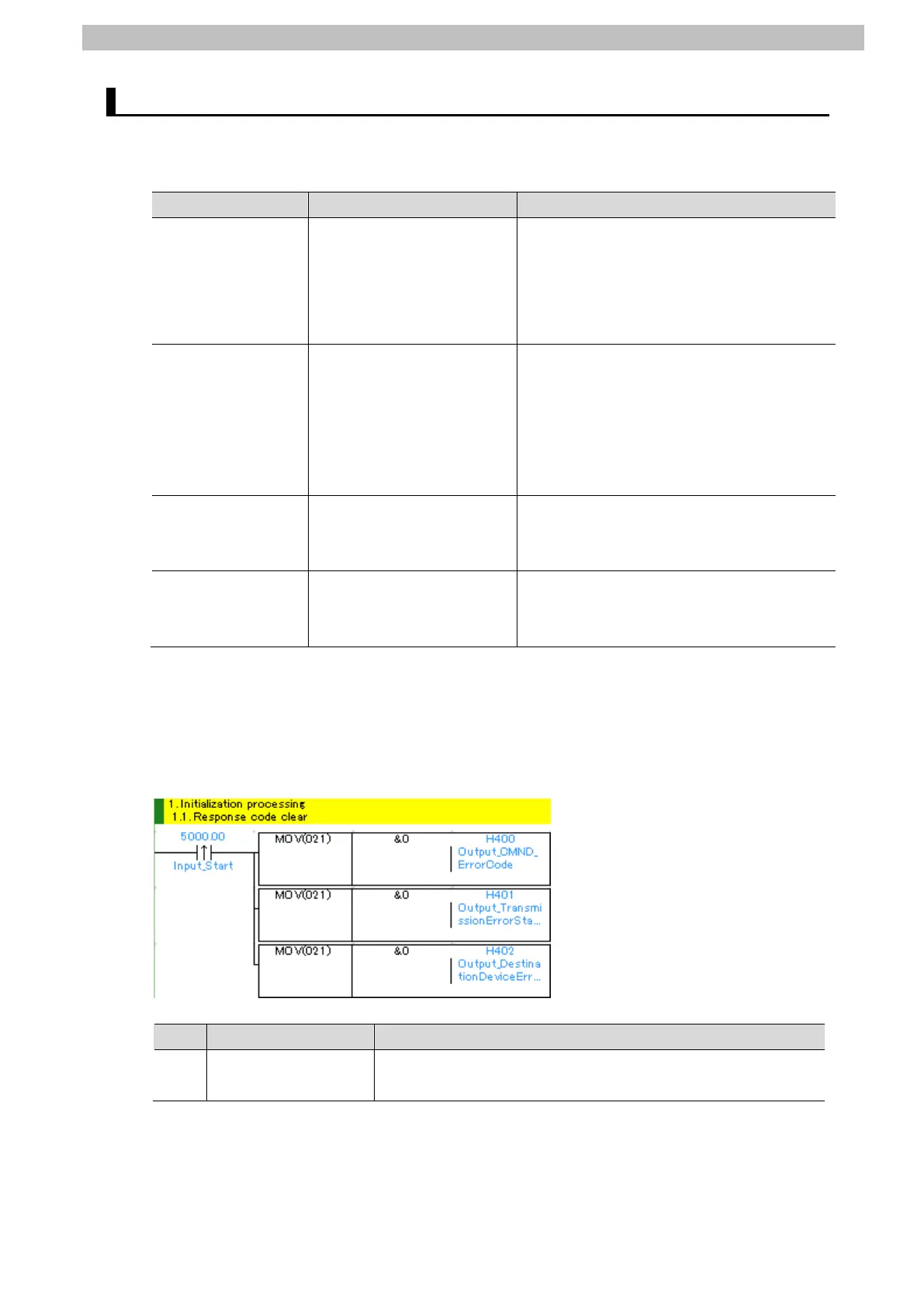

9.5.2. Detailed Description of Each Functional Component
The program configured for this document is shown below.
●1.Initialization processing
No. Outline Description
1.1. Response code
clear
Initializes the Error code storage area.
