Omron CK3E Series - Controller Settings

67
7

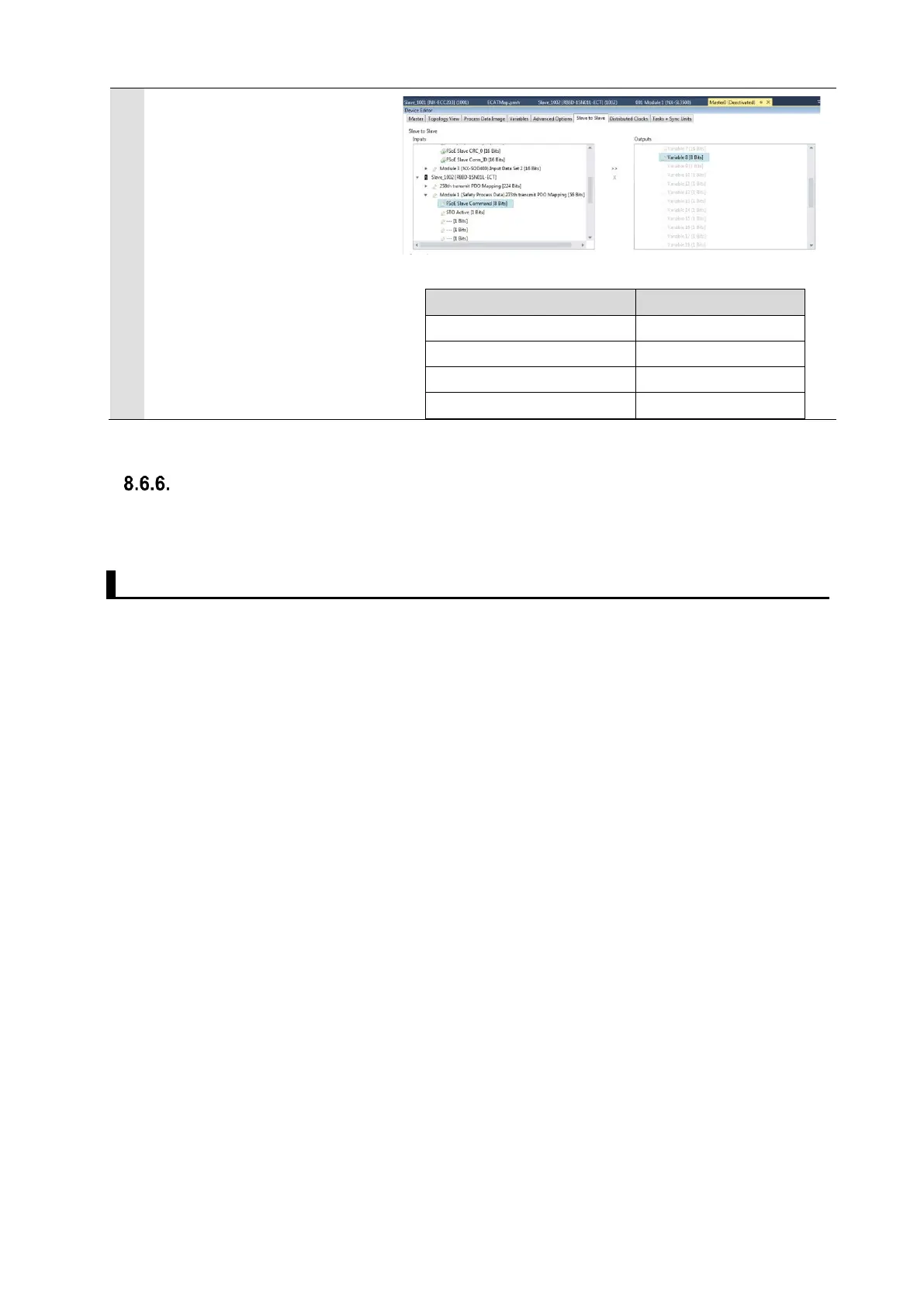

Expand
Slave_1001[R88D-1SN01L-EC
T] – Module 1 (Safety Process
Data). 273th receive PDO
Mapping in Inputs.
Expand Module 1
(NX-SL3500).Output Data Set
1 in Outputs.
Select an Inputs item, then
select the corresponding
Outputs item and click >>.
Associate the following items:
Inputs
Outputs
FSoE Slave Command
Variable 8
Variable 9
Variable 10
Variable 11
Creation of ENI Files and Download to the Controller
Perform the procedure provided in 6.4.4 Creation of an EtherCAT Network Information File.
8.7. Controller Settings
Perform the procedure provided in 6.5 Controller Settings.
