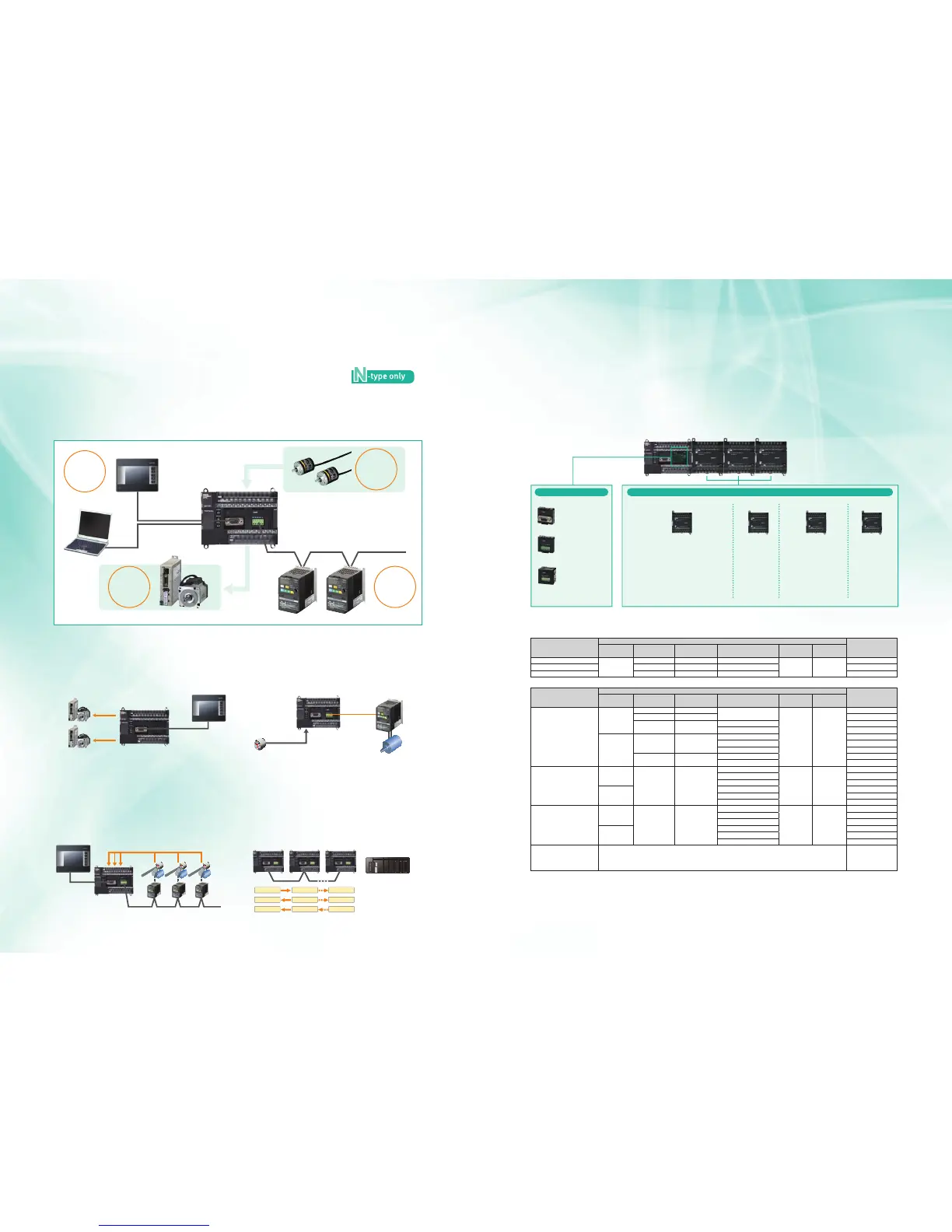

Efficient and effective
The machine controller for Lean Automation solutions
Optional units for more flexibility
Pulse outputs
control. Note : models with transistor outputs.
High-speed counters
Modbus-RTU easy Master
Serial PLC links
units.
HMI
connection
High-speed
counters
Pulse outputs
Modbus-RTU
master
outputs
encoder
can also be
connected.
counter
Option units Expansion units and expansion I/O units
N-type CPU Unit with 30 or 40 I/O Points
RS-232C
Option Board
CP1W-CIF01
Units with 40 I/O
CP1W-40EDR / CP1W-40EDT /
CP1W-40EDT1
Units with 20 I/O
CP1W-20EDR1 / CP1W-20EDT /
CP1W-20EDT1
Units with 32 Outputs
CP1W-32ER / CP1W-32ET /
CP1W-32ET1
Analog I/O Unit
CP1W-MAD11
Analog Input Unit
CP1W-AD041
Analog Output Unit
CP1W-DA041
CompoBus/S
CP1W-SRT21
Profibus-DP
CPM1A-PRT21
DeviceNet
CPM1A-DRT21
Units with 16 Outputs
CP1W-16ER / CP1W-16ET /
CP1W-16ET1
Units with 8 Outputs
CP1W-8ER / CP1W-8ET /
CP1W-8ET1
Unit with 8 Inputs
CP1W-8ED
Temperature
Sensor Units
(Thermocouples)
CP1W-TS001
CP1W-TS002
Temperature
Sensor Units
(Platinum
Resistance
Thermometers)
CP1W-TS101
CP1W-TS102
RS-422A/485 Option Board
CP1W-CIF11
(Maximum transmission
distance: 50m)
RS-422A/485 Option Board
(Isolated-type)
CP1W-CIF12
(Maximum transmission
distance: 500m)
Expansion Units and Expansion I/O Units
Expansion I/O Units Analog I/O Units Temperature Sensor Units Fieldbus slaves
CPM1A expansion units can be used under the same conditions as for the CP1W.
E-type CP1E CPU Units (Basic Models)
Product Name Specifications Model
Power supply Inputs Outputs Output type Program
Capacity
Data memory
capacity
E-type with 20 I/O Points 100 to 240 VAC 12 8 Relay 2K steps 2K words CP1E-E20DR-A
E-type with 30 I/O Points 18 12 Relay CP1E-E30DR-A
E-type with 40 I/O Points 24 16 Relay CP1E-E40DR-A
N-type CP1E CPU Units (Application Models)
Product Name Specifications Model
Power supply Inputs Outputs Output type Program
Capacity
Data memory
capacity
N-type with 20 I/O Points 100 to 240 VAC 12 8 Relay 8K steps 8K words CP1E-N20DR-A
12 Digital + 2 Analog* 8 Digital + 1 Analog* CP1E-NA20DR-A*
12 8 Transistor (sinking) CP1E-N20DT-A
Transistor (sourcing) CP1E-N20DT1-A
24 VDC 12 12 Relay CP1E-N20DR-D
Transistor (sinking) CP1E-N20DT-D
Transistor (sourcing) CP1E-N20DT1-D
12 Digital + 2 Analog* 8 Digital + 1 Analog* Transistor (sinking) CP1E-NA20DT-D*
Transistor (sourcing) CP1E-NA20DT1-D*
N-type with 30 I/O Points 100 to 240 VAC 18 12 Relay 8K steps 8K words CP1E-N30DR-A
Transistor (sinking) CP1E-N30DT-A
Transistor (sourcing) CP1E-N30DT1-A
24 VDC Relay CP1E-N30DR-D
Transistor (sinking) CP1E-N30DT-D
Transistor (sourcing) CP1E-N30DT1-D
N-type with 40 I/O Points 100 to 240 VAC 24 16 Relay 8K steps 8K words CP1E-N40DR-A
Transistor (sinking) CP1E-N40DT-A
Transistor (sourcing) CP1E-N40DT1-A
24 VDC Relay CP1E-N40DR-D
Transistor (sinking) CP1E-N40DT-D
Transistor (sourcing) CP1E-N40DT1-D
Battery Set For N-type CP1E CPU Units
Note: Mount a Battery to an N-type CP1E CPU Unit if the data in the following areas must be backed up for power interruptions. DM Area (D)
(except backed up words in the DM Area), Holding Area (H), Counter Completion Flags (C), Counter Present Values (C), Auxiliary Area (A), and
Clock Function.(Use batteries within two years of manufacture.)
CP1W-BAT01
Note: There are no accessories included with N-type CP1E CPU units. RS-232C connectors for the built-in RS-232C port and the battery (CP1W-BAT01) are not included.
*Note: CP1E-NA model available early 2010
