Omron CP2E User Manual

Ethernet
6

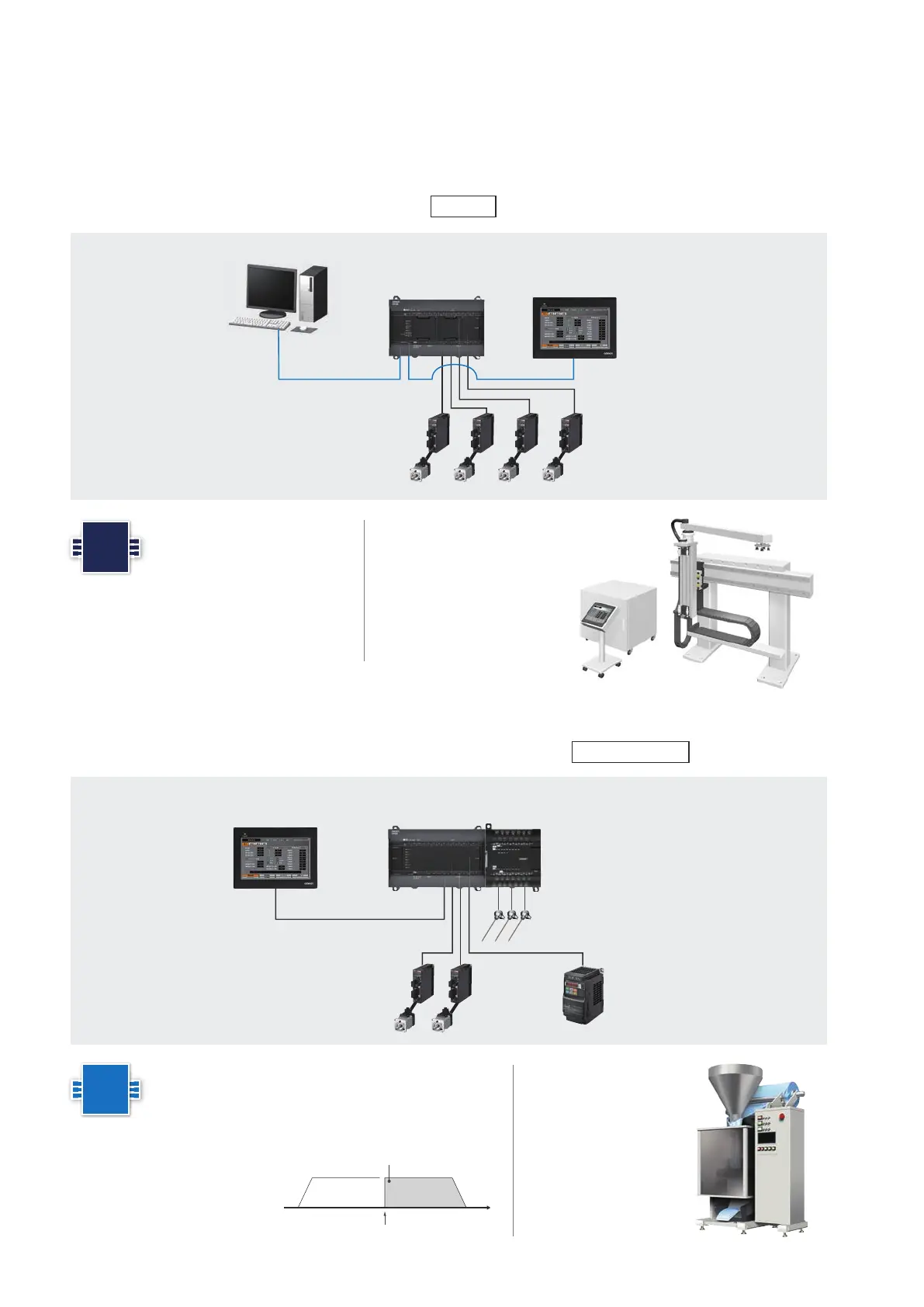

Reduced effort to realize complex machines
Positioning on mark for Packaging Machines
CP2ENB
Operate with 4-axis
simultaneously to reduce
machine cycle time
Pick and Place
Constant movement from
mark detection to seal
position
Packaging machine
Inverter
RS-485
Temperature Sensor
RS-232C
Stop after a defined
amount of pulses
(Time)
Interrupt input
Simplified positioning:
4-axis can operate simultaneously for
a faster positioning.
With one instruction you can
execute a fixed positioning
on Interrupt input (mark)
independently by PLC cycle time.
Interrupt feeding
PID Control with auto tuning
Servomotor/Servo Drive
Servomotor/Servo Drive
CP2E-N NB
CP1W-TS003
Temperature Sensor Unit
Speed
control
Position
control
Up to 4-axis linear interpolation
CP2E-N
CP2E-N/CP2E-S
4-axis positioning
Instruc
-
tion
FB
Linear interpolation
Fixed positioning on interrupt
(IFEED instruction)

Omron CP2E Specifications

General

Expansion I/O Units	Up to 7 units
Model	CP2E
Type	Programmable Logic Controller (PLC)
Analog Inputs	Available via expansion units
Analog Outputs	Available via expansion units
Communication Ports	RS-232C
Ethernet Port	Yes
Power Supply	100 to 240 VAC or 24 VDC (depending on the model)
