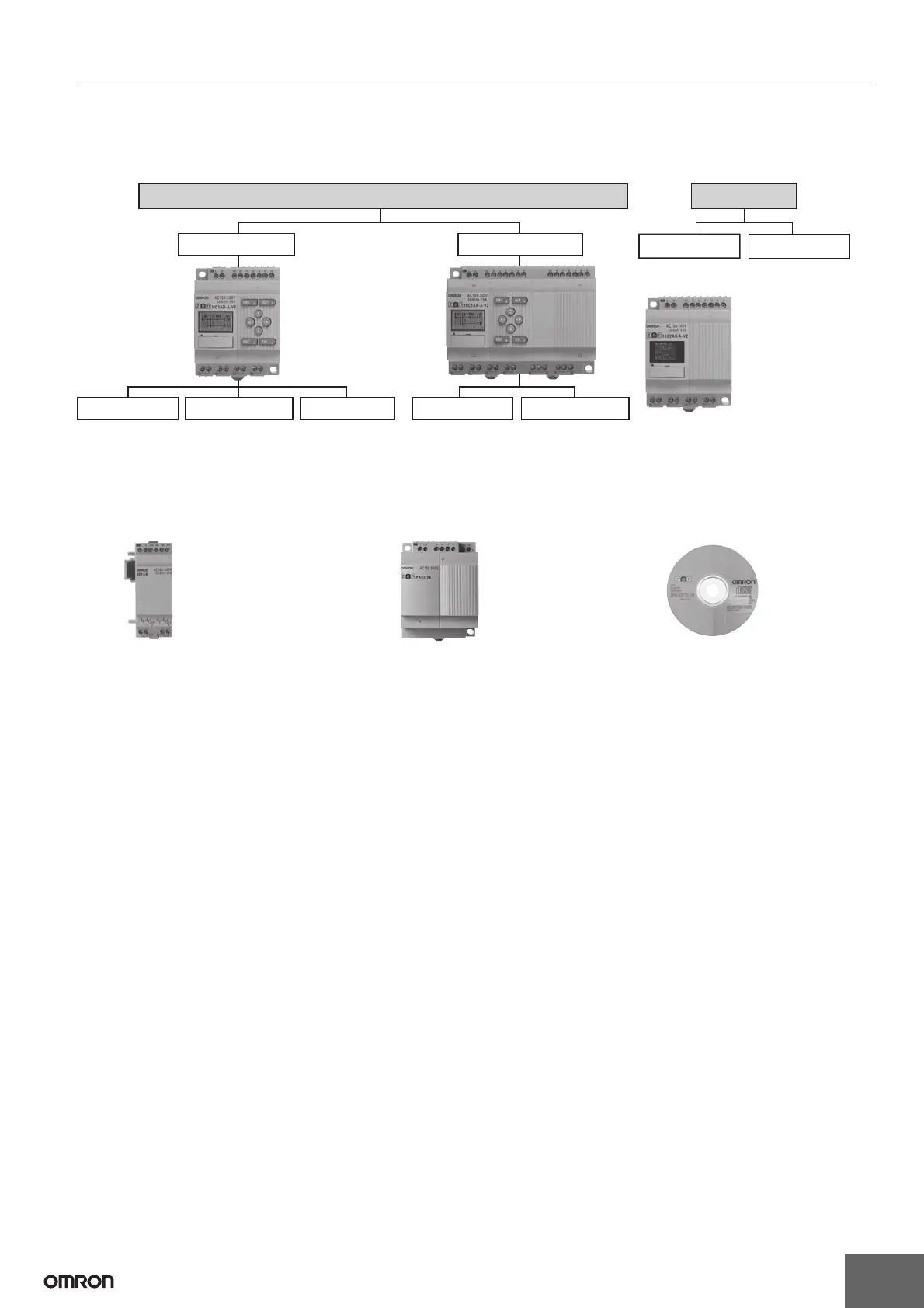

■ Series Configuration
CPU Units
Power supply voltage: 100 to 240 VAC, 12 to 24 VDC, Output: Relay, transistor output
With LCD display, operation buttons, and calendar/clock function LED type
10 I/O points
Standard LCD type Economy type Standard LCD type Economy type
Communications type
20 I/O points
10 I/O points 20 I/O points
ZEN-10C1@ ZEN-10C3@ ZEN-10C4@ ZEN-20C1@ ZEN-20C3@
ZEN-10C2@
(10 I/O points)
ZEN-20C2@
This CPU Unit has no LCD,
operation buttons, or
calendar/clock function.
Expansion I/O Units
cannot be connected.
Expansion I/O Units
cannot be connected.
RS-485 communications
type.
Expans
i
on I
/O
Un
i
ts
Only 35-mm wide.
4 input, 4 output points
Power
S
upply Un
i
t
Same shape and design as ZEN.
24 VDC, 30 W
S
upport
S
o
f
tware
Allows easy programming and
operation simulation.

Omron CP2E Specifications

General

Expansion I/O Units	Up to 7 units
Model	CP2E
Type	Programmable Logic Controller (PLC)
Analog Inputs	Available via expansion units
Analog Outputs	Available via expansion units
Communication Ports	RS-232C
Ethernet Port	Yes
Power Supply	100 to 240 VAC or 24 VDC (depending on the model)
