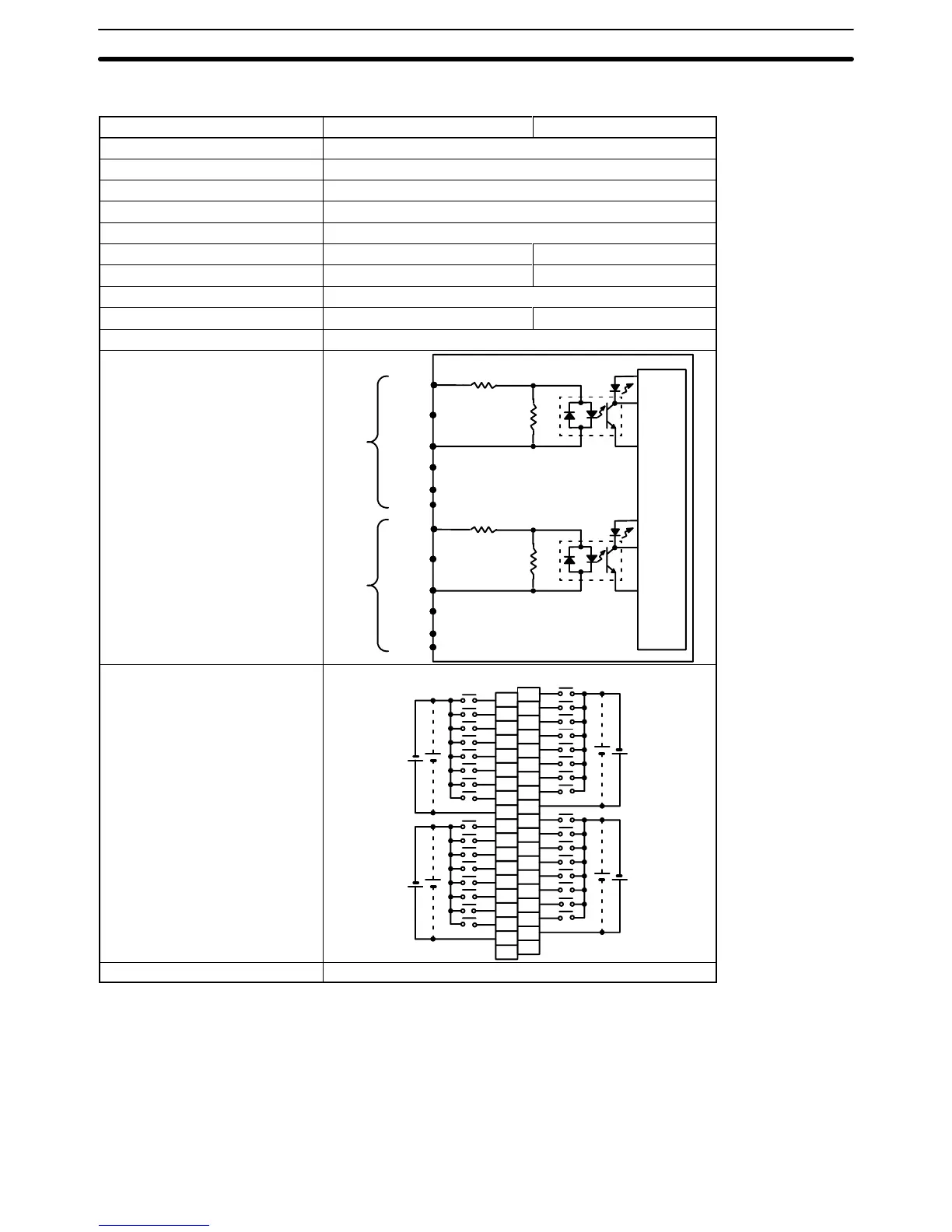

Appendix BSpecifications
111
DC Input Units Continued
Item 3G2A5-ID215 3G2A5-ID218
Input Voltage 12 to 24 VDC
+10%
/
–15%
Input Impedance 2.2 k
Input Current 10 mA typical (at 24 VDC)
ON Voltage 10.2 VDC min.
OFF Voltage 3.0 VDC max.
ON Delay 15 ms max. 1.5 ms max.
OFF Delay 15 ms max. 1.5 ms max.
No. of Inputs 32 (8 inputs/common, 4 circuits)
Internal Current Consumption 160 mA, 5 VDC max. 260 mA, 5 VDC max.
Weight 450 grams max.
Circuit Configuration
See
below.
COM
COM
IN 00
to
IN 07
IN 15
IN 08
to
COM
COM
IN 00
to
IN 07
IN 15
IN 08
to
Inter-
nal
Circuit
2.2 k
2.2 k
See
below.
I
II
ID215:
560
ID218:
750
Terminal Connections
+
COM
NC
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
COM
12 to 24
VDC
+
12 to 24
VDC
+
COM
NC
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
COM
12 to 24
VDC
+
12 to 24
VDC
A
B
+
+
+
+
I
II
Dimensions B-shape
