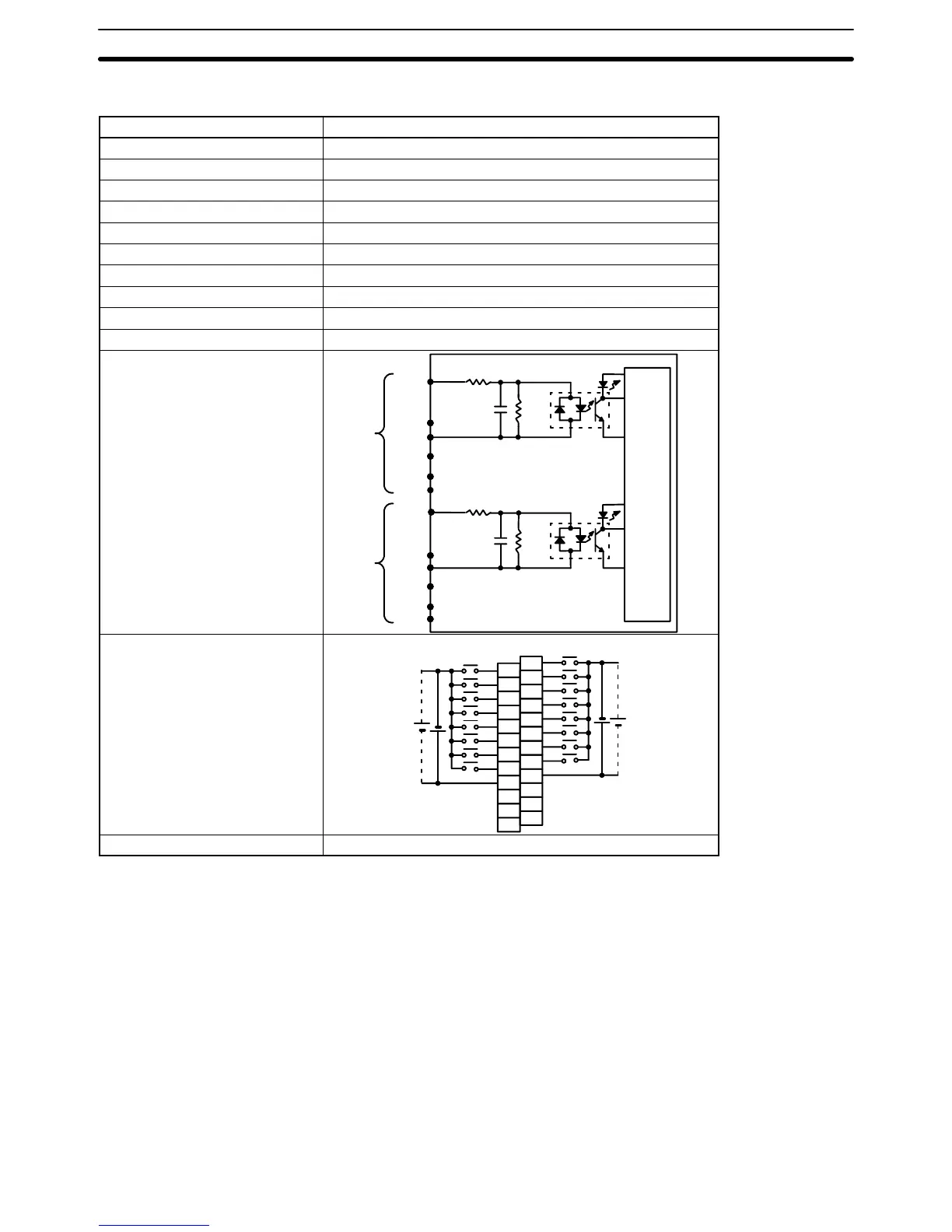

Omron CV500 Installation Guide

Appendix BSpecifications
114
DC Input Units Continued
Item C500-ID218CN
Input Voltage 12 to 24 VAC
+10%
/
–15%
Input Impedance 2.2 k
Input Current 10 mA typical (at 24 VDC)
ON Voltage 10.2 VDC min.
OFF Voltage 3.0 VDC max.
ON Delay 1.5 ms max.
OFF Delay 1.5 ms max.
No. of Inputs 32 (8 inputs/common, 4 circuits)
Internal Current Consumption 200 mA, 5 VDC max.
Weight 450 grams max.
Circuit Configuration
Inter-
nal
Circuit
COM
COM
IN
00
to
IN 07
IN 15
2.2 k
2.2 k
IN 08
to
COM
COM
IN 00
to
IN 07
IN 15
IN 08
to
0.04
F
0.04
F
470

470

I
II
Terminal Connections
+
0
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
11
12
COM
NC
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
COM
A
B
+
+
+
NC
NC
NC
NC
NC
12
to
24 VDC
Dimensions E-shape, with no 4-terminal block
