36
2-3-5 Termination Resistance Units
A T ermination Resistance Unit (CV500-TER01) must be attached to all unused
I/O connectors of I/O Control and I/O Interface Units in the system. Failure to
attach T ermination Resistance Units to the unused I/O connectors will result in

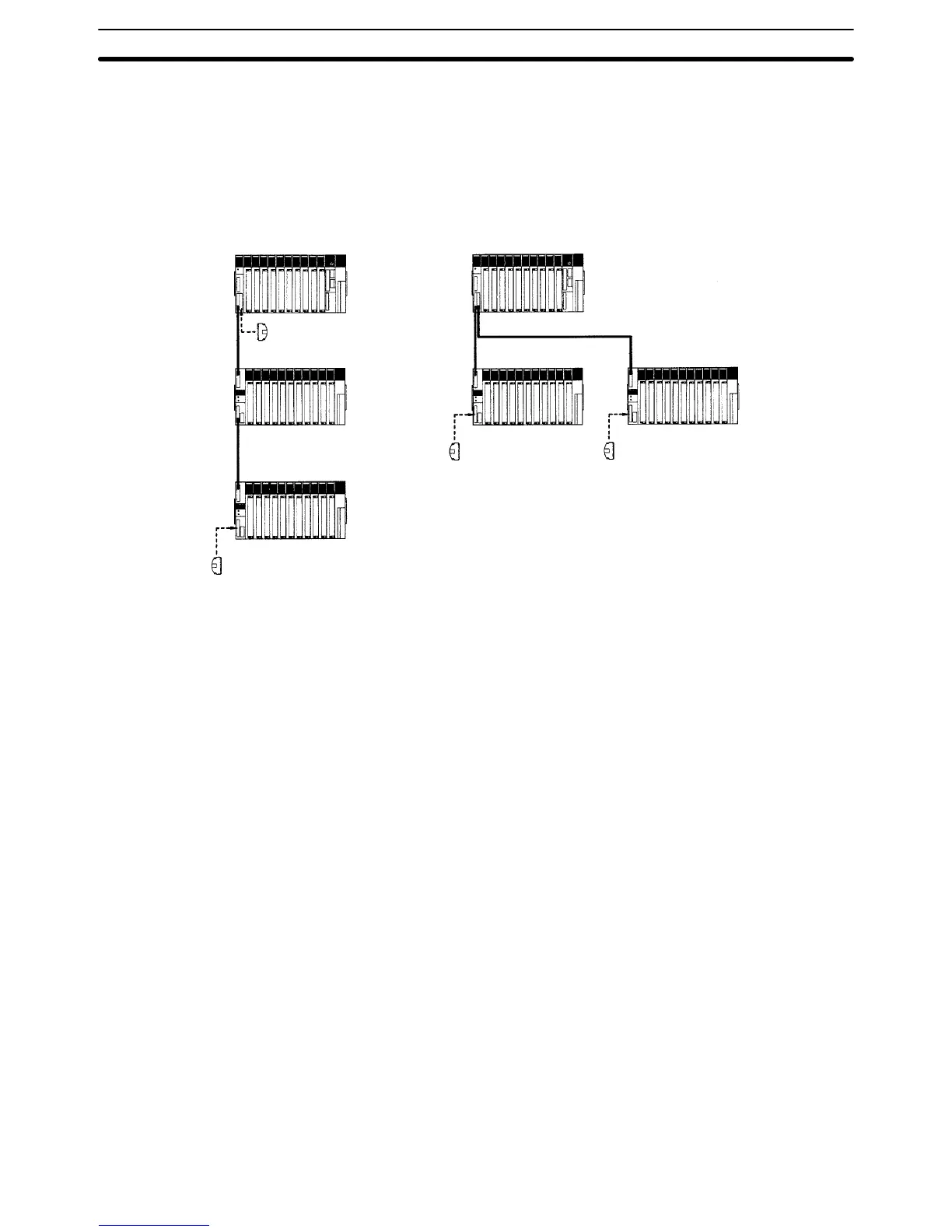

an error and the incorrect operation of the PC. The following example illustrates
the locations where Termination Resistance Units are required. Two Termina-
tion Resistance Units are provided with the CV500-IC101/201 I/O Control Unit.
CPU Rack
Termination
Resistance Unit
Termination
Resistance Unit
CPU Rack
Termination
Resistance
Unit
Termination
Resistance
Unit
Note Attach and remove T ermination Resistance Units only when PC power is OFF .
Rack Components Section 2-3
