Expansion Data Memory Unit
Mount
the Expansion Data Memory Unit to the CV1000 CPU using the
following
procedure.
1, 2, 3...
1. Turn OFF the power to the PC.
Caution Do
not attempt to mount or remove the Memory Unit while the power to the PC is
ON.
During mounting or removal, exercise care that you do not directly touch the
memory elements or connector pins of the Unit. Hold the Unit by the lever.
2. Remove the Expansion Data Memory Unit cover on the front panel of the
CPU
by pushing the lever
on the cover upwards, as indicated by the arrow
on the cover.

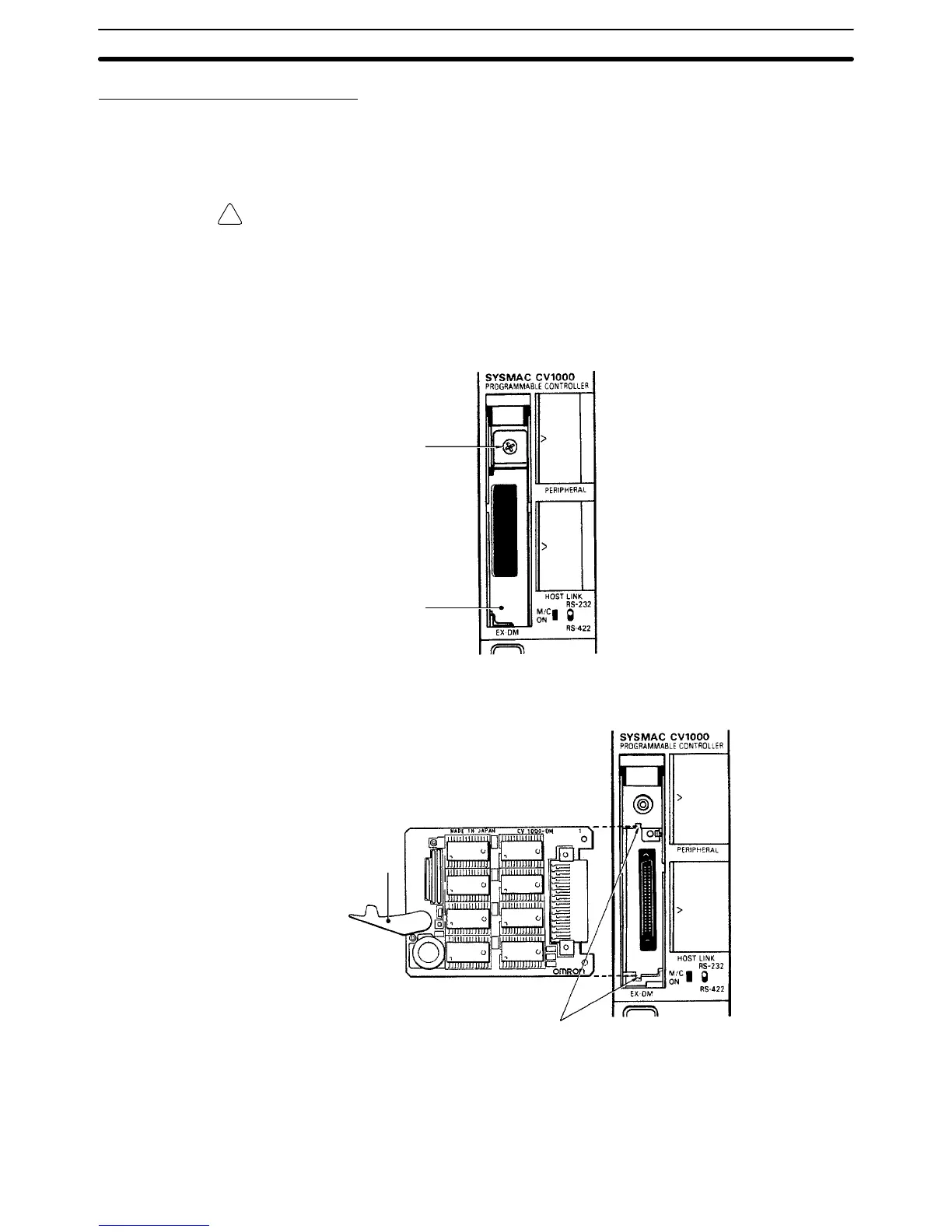

Bracket screw
Bracket
3. Loosen the bracket screw and remove the bracket.
Expansion
Data Memory Unit
PCB guides
Pullout lever
4. Hold
the Expansion Data Memory Unit with the component side
to the right,
and
insert the Unit into the PCB guides. In doing so, a slight resistance will
be
felt as the connector on the Memory Unit mates with the connector on the
CPU.
Continue pushing until the Memory Unit is inserted completely into the
CPU.
Mounting the Expansion
Data Memory Unit
Assembly Section 3-1
To Next Page
