43
3-1-2 Memory Card and Expansion Data Memory Unit
Extra
memory is available in two forms, via the use of Memory Cards
or by using
an Expansion Data Memory Unit. This section outlines the procedure for mount
-
ing and removing these optional memory devices.
Memory Cards
The Memory Card can be used to store data and programs as files. Memory
Cards are optional and are not supplied with the CPU. They must be ordered
separately and installed by the user
Mount a Memory Card to the CPU using the following procedure.
1, 2, 3...
1. Open the cover of the Memory Card compartment.
2. If
the Memory Card is RAM or EEPROM, set the write-protect switch to OFF
so that data can be written to the Card.
3. Insert
the Memory Card into its compartment. In doing so, a slight resistance
will
be felt
as the connector on the Memory Card mates with the connector
on
the CPU. Continue pushing until the Memory Card is inserted completely
into
the CPU. If the Memory Card ON/OFF switch is ON, the Memory Card
indicator will light.
4. Close the cover.

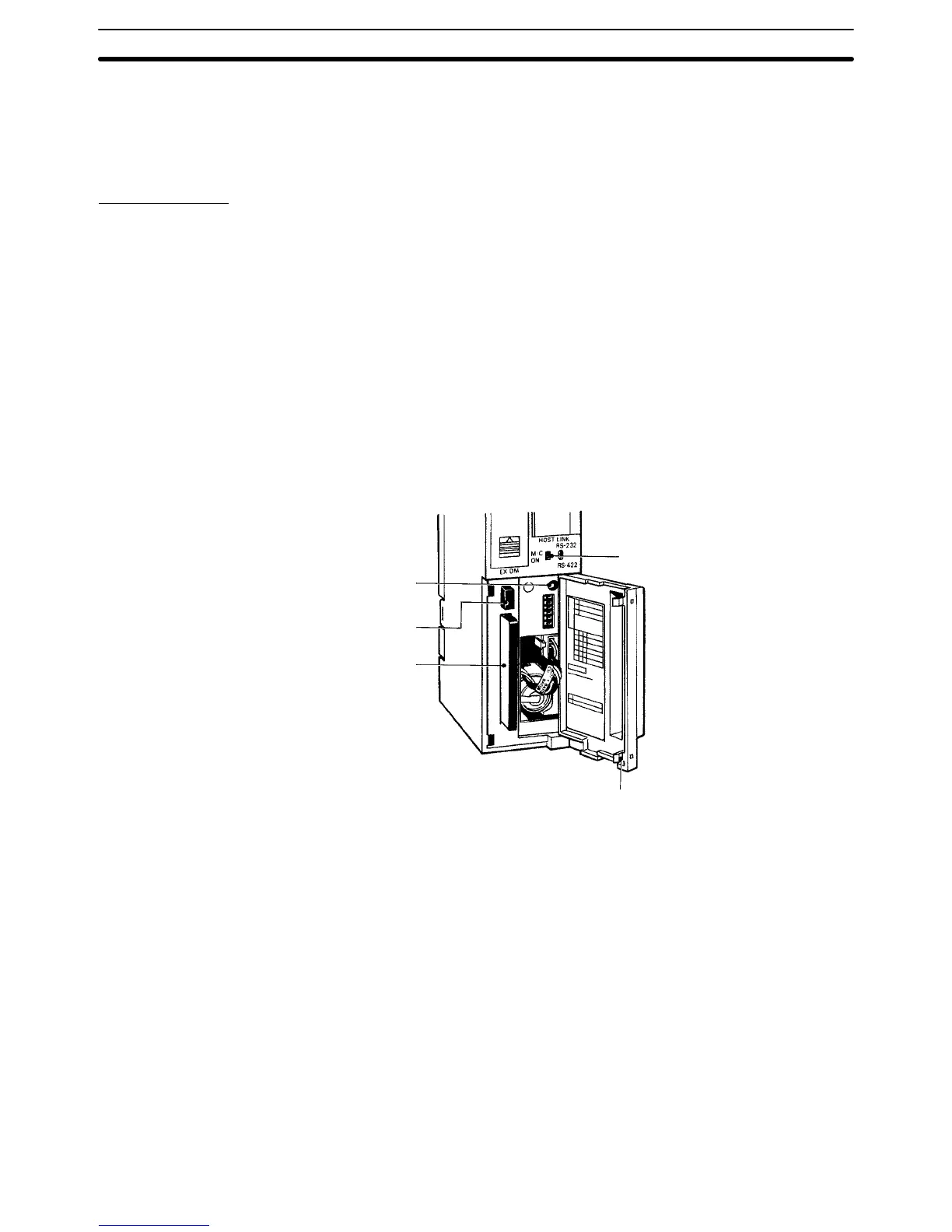

Memory
Card indicator
Memory Card
ON/OFF switch
Memory Card
eject button
Memory Card
Cover
Removing a Memory Card
1, 2, 3...
1. Open the cover of the Memory Card compartment.
2. Press
the Memory Card ON/OFF switch once if the
Memory Card indicator
is lit. The Memory Card indicator will turn OFF.
3. Press
the Memory Card eject button. The Memory Card will be released al
-
lowing it to be removed.
4. Pull out the Memory Card.
5. Close the cover.
Note 1. Do not expose the Memory Card to high temperature, humidity, or direct
sunlight.
2. Do not bend the Card or subject it to shock.
3. Do not apply excess force to the Card when inserting or removing it.
4. Do
not remove the Card while the Memory Card indicator is lit; doing so may
result in data errors in the memory.
Mounting a Memory Card
Assembly Section 3-1
