12
E32

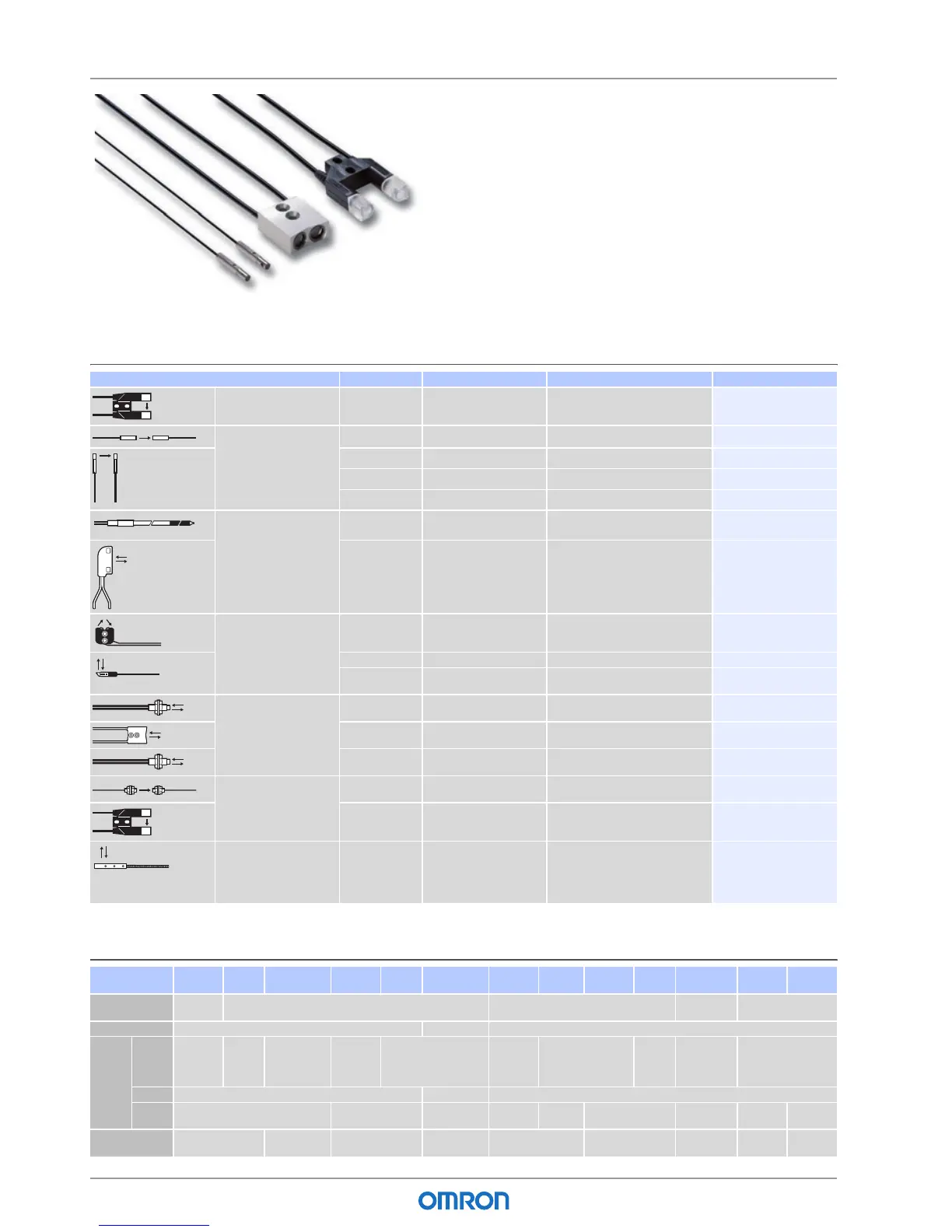

Fiber sensor heads
Special application fiber sensor heads
For a wide range of special applications, the task optimised fiber heads provide best
fitting sensing performance and adaption to environmental requirements.
• Detection of special objects (liquids, transparent foils, etc.)
• Fiber heads ideal for colour mark detection
• Fiber heads optimised for special tasks (wafer mapping, hot reflective surface
detection, etc.)
Ordering information
Specifications
Senor Type Size Sensing distance (in mm)
*1
*1
Sensing distance measured with E3X-DA-S family in standard mode. In high resolution mode the sensing distance is approx. 30% higher.
Comment Order code
Fork shape 36x24x8 mm 10 – E32-G14
Wafer mapping dia 3 1900 – E32-T22S
dia 3 1300 – E32-T24S
dia 3 890 – E32-A03 2M
dia 2 340 – E32-A04 2M
Liquid level sensor dia 6 liquid contact Liquid level contact E32-D82F1 4M
15x23.5x5 mm tube contact Liquid level detection through transparent
tube or container
E32-D36T 2M
Label detection 20x20x5 mm 7.2 – E32-L25L
18x20x4 mm 4 – E32-L24L
34x25x8 mm 2.4 Very precise spot
(detection accuracy 100 μm)
E32-EL24-1 2M
Colour detection
*2
*2
With amplifier E3X-DAC-S
M6 300 Recommended for standard colour and
colour mark detection
E32-CC200 2M
23x20x9 mm 35 Recommended for higher precision colour
and colour mark detection
E32-A09 2M
M3 20 Recommended for very precise colour
mark detection
E32-EC31 2M
Transparent foil detection M4 depends on application With amplifier E3X-DA_ -S and
powertuning functionality
E32-ET11R + E39-F1
36x24x8 mm 10 - Fork shape for simplified mounting
- Only with amplifier E3X-DAC_ -S
E32-G14
Detection of hot
reflective surfaces
36x18x5.5 mm 18 - Heat resistant up to 300°C
- Limited reflective for accurate
detection of shiny surfaces
- Wide beam for tilt resistance
tolerance of object surface
E32-L66 2M
Item E32-D82F1 E32-G14 E32-A09 E32-CC200 E32-EC31 E32-L66 E32-EL24-1 E32-T22S
E32-T24S
E32-L24L
E32-L25L
E32-A04 E32-D36T E32-A03 E32-ET11R
Permissable
bending radius
R40 R25 R10 R4 R1
Cut to length Yes No Yes
Material Head PFA ABS Aluminium Brass-
nickel
plated
Stainless steel Brass-
nickel
plated and
aluminium
Brass-nickel plated Stainless
steel
ABS Brass-nickel plated
Fiber PMMA Glass PMMA
Sheath Polyethylene coating PVC, polyethylene and
polyolefin coating
Stainless steel
spiral coating
Polyethyl-
ene coating
PVC
coating
Polyethylene coating PVC coating Polyethyl-
ene coating
PVC coating
Degree of
protection
IEC 60529 IP67 IEC 60529 IP40 IEC 60529 IP67 IEC 60529 IP40 IEC 60529 IP67 IEC 60529 IP50 IEC 60529 IP67 IEC 60529
IP50
IEC 60529
IP67
