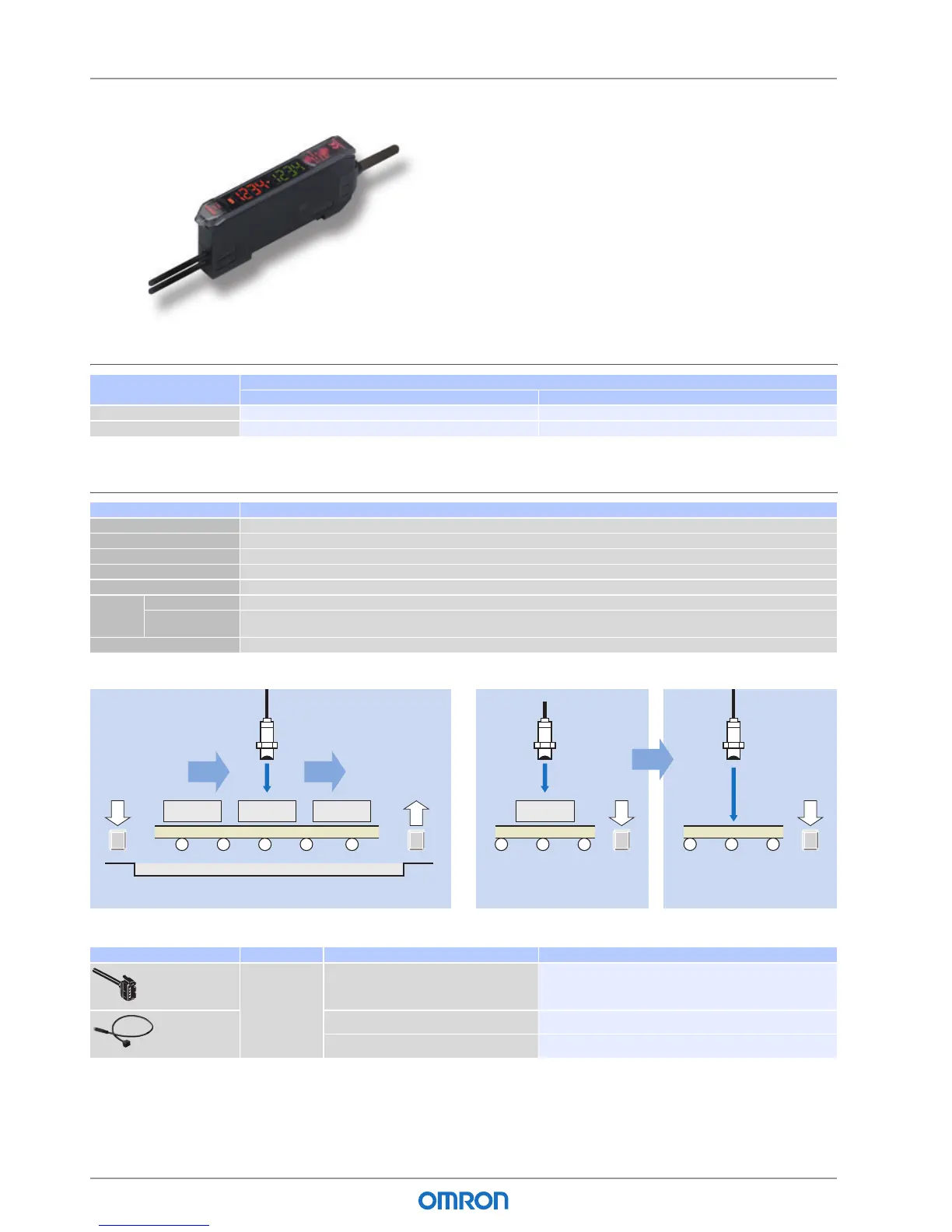

E3X-DA-SE-S
Fiber amplifier
Digital fiber amplifier with one button
teaching
E3X-DA-SE-S allows easy one button setting and provides the best value
performance ratio for standard applications.
• Auto-teaching during machine operation
• Digital double display for incident level and threshold
• Object or 2-point teaching within a few seconds
Ordering information
Specifications
1-button auto-teaching 2-point teaching
Fiber amplifier connectors
Item Order code
NPN output PNP output
Pre-wired E3X-DA11SE-S 2M E3X-DA41SE-S 2M
Connector version
*1
*1
Order connector separately.
E3X-DA6SE-S E3X-DA8SE-S
Item E3X-DA_SE-S
Light source (wave length) Red LED (650 nm)
Power supply voltage 12 to 24 VDC ±10%, ripple (p-p): 10% max.
Protective circuits Power supply reverse polarity protection, output short-circuit protection, mutual interference prevention
Response time Operation or reset: 1 ms
Sensitivity setting Teaching and digital up/down keys
Functions Auto power control High-speed control method for emission current
Mutual interference
prevention
Optical communications sync, possible for up to 10 Units
Digital displays Incident level + threshold
Pushing the TEACH button during 3 seconds or more
Workpiece
Workpiece Workpiece
Remove a workpiece and press
the TEACH button.
Position a workpiece and press
the TEACH button.
Workpiece
Shape Type Comment Order code
Fiber amplifier
connector
2 m PVC cable E3X-CN21
30 cm PVC cable with M12 plug connector (4 pin) E3X-CN21-M1J 0.3M
30 cm PVC cable with M8 plug connector (4 pin) E3X-CN21-M3J-2 0.3M
