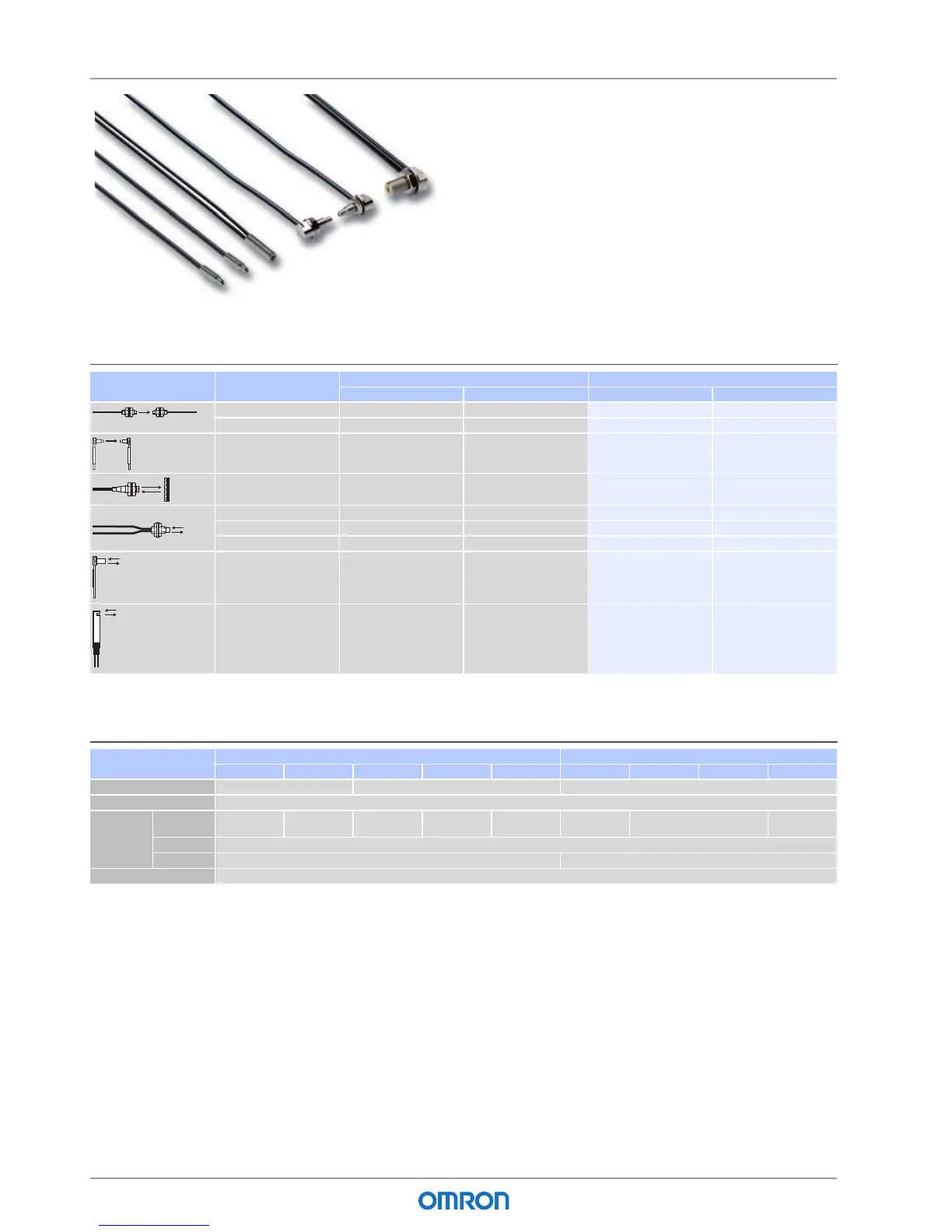

E32
Fiber sensor heads
Standard cylindrical fiber sensor heads
The standard cylindrical fiber optic sensing heads provide reliable object detection,
easy installation and long sensor lifetime for all general applications.
• High-flex fibers and 90° cable exit for cable breakage prevention
• Models with hexagonal back for simplified one-nut mounting
• Sizes M3 to M6
Ordering information
Specifications
Sensor type Size Sensing distance (in mm)
*1
*1
Sensing distance measured with E3X-DA-S family in standard mode. In high resolution mode the sensing distance is approx. 30% higher.
Order code
Standard High-flex Standard High-flex
M4 760 530 E32-TC200 2M E32-ET11R 2M
M3 220 130 E32-TC200E 2M E32-ET21R 2M
M4 – 530 – E32-T11N 2M
M6 250
*2
*2
Measured with E39-R3
– E32-R21 –
M6 300 170 E32-DC200 2M E32-ED11R 2M
M4 80 30 E32-D211 2M E32-D211R 2M
M3 80 30 E32-DC200E 2M E32-ED21R 2M
M6 – 170 – E32-D11N 2M
dia 6 mm 110 45 E32-D14L 2M E32-D14LR 2M
Item Standard High Flex
E32-_C200 E32-D14L E32-_C200E E32-D211 E32-R21 E32-E_R E32-D14LR E32-D211R E32-_11N
Permissable bending radius R25 R10 R1
Cut to length Yes
Material Head Brass-nickel
plated
Stainless steel Brass-nickel
plated
Stainless steel Plastic (ABS) Brass-nickel
plated
Stainless steel Brass-nickel
plated
Fiber PMMA
Sheath Polyethylene coating PVC coating
Degree of protection IEC 60529 IP67

Omron E32 Specifications

General

Model	E32
Ambient Temperature	-25 to 55°C
Power Supply Voltage	N/A (Fiber unit only)
Output Type	N/A (Fiber unit only)
Operating Temperature	-25 to 55°C
Protection Rating	IP67
