Fiber – general
E32

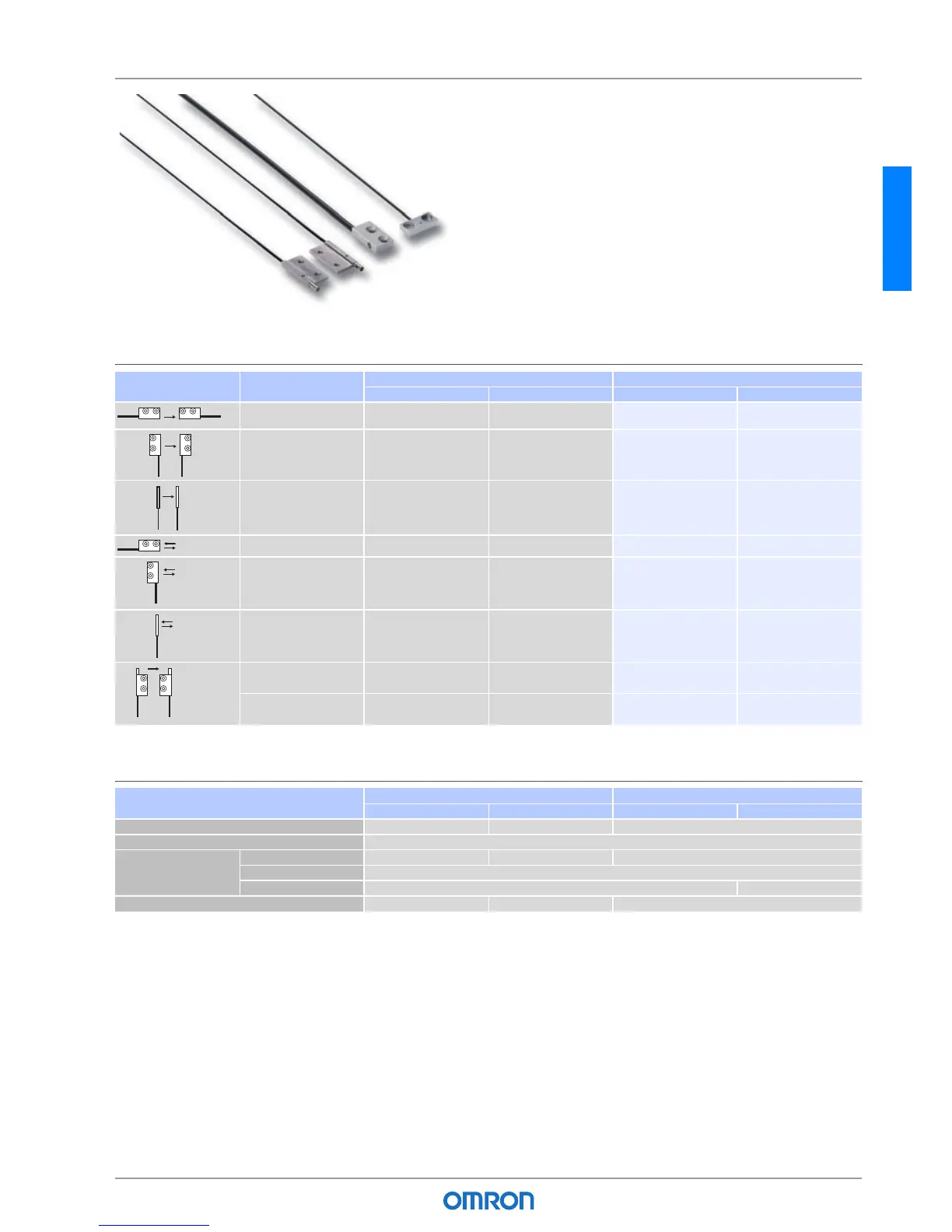

Fiber sensor heads
Square shape fiber sensor heads
The fiber heads in square shaped housing provide fast and easy installation on flat
surfaces.
• Models with sensing direction in X, Y or Z axis
• 3 or 4mm thick housings for minimal height requirement
• Standard or high-flex fibers
Ordering information
Specifications
Sensor type Size (in mm) Sensing distance (in mm)
*1
*1
Sensing distance measured with E3X-DA-S family in standard mode. In high resolution mode the sensing distance is approx. 30% higher.
Order code
Standard High-flex Standard High-flex
15x18x3/
15x10x4
760 560 E32-T15X 2M E32-ETS10R 2M
15x18x3 460 210 E32-T15Y 2M E32-T15YR 2M
15x18x3/
15x9x4
460 480 E32-T15Z 2M E32-ETS14R 2M
15x10x3 300 170 E32-D15X 2M E32-D15XR 2M
15x10x3 100 40 E32-D15Y 2M E32-D15YR 2M
15x10x3/
13x6x2.3
100 60 E32-D15Z 2M E32-EDS24R 2M
24.5x10x3 890 – E32-A03-1 2M –
20.5x2x2 340 – E32-A04-1 2M –
Item Standard High flex
E32-_15 E32-A E32-E E32-_15_R
Permissable bending radius R25 R10 R1
Cut to length Yes
Material Head Aluminium Brass-nickel plated Aluminium
Fiber PMMA
Sheath Polyethylene coating PVC coating
Degree of protection IEC 60529 IP67 IEC 60529 IP50 IEC 60529 IP67

Omron E32 Specifications

General

Model	E32
Ambient Temperature	-25 to 55°C
Power Supply Voltage	N/A (Fiber unit only)
Output Type	N/A (Fiber unit only)
Operating Temperature	-25 to 55°C
Protection Rating	IP67
