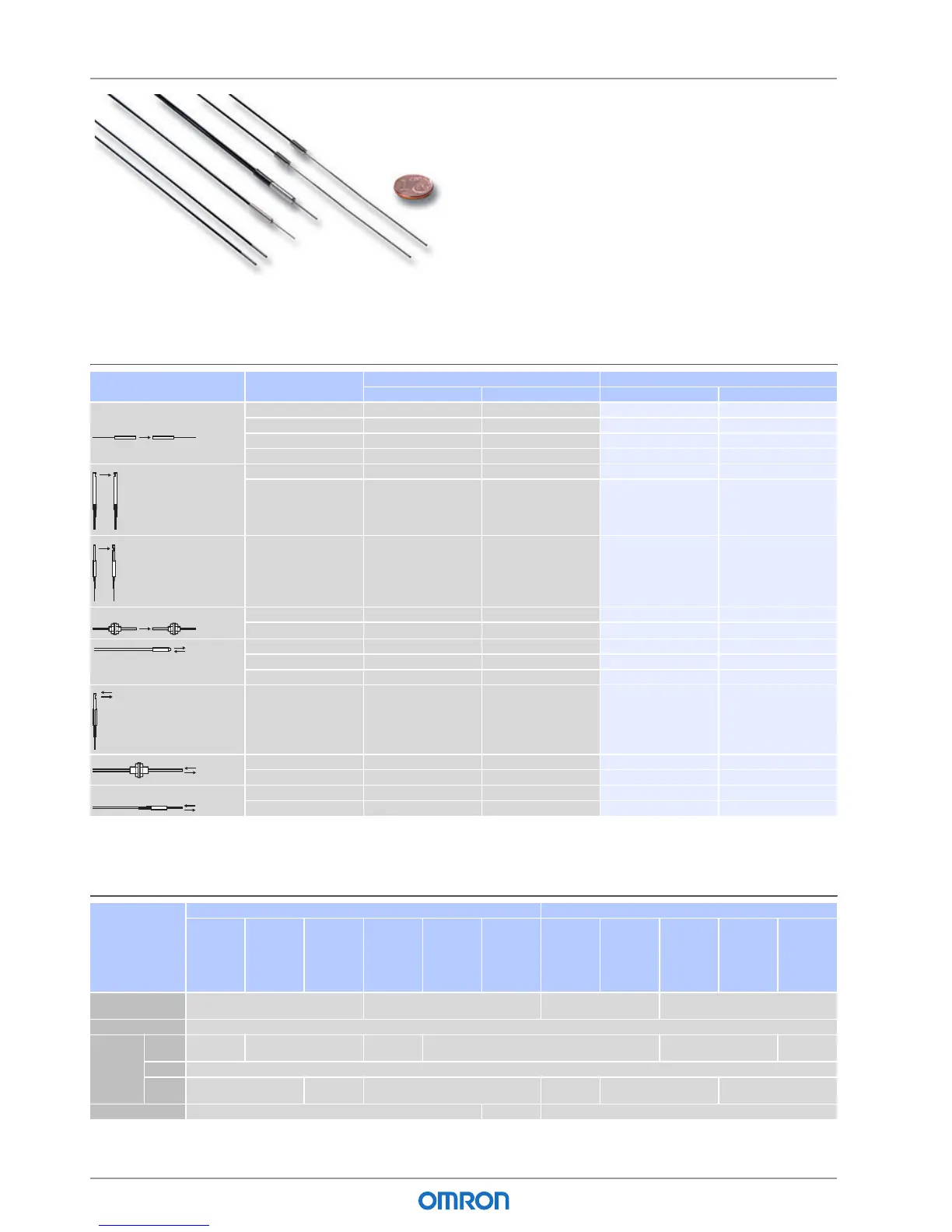

E32
Fiber sensor heads
Miniature fiber sensor heads
The miniature fiber heads provide high accuracy in smallest spaces and reliable
detection of minute objects.
• Sizes from dia 500 μm to 3 mm
• Side view models with precision axis alignment for highest accuracy
• Bendable sleeves for precision positioning
Ordering information
Specifications
Sensor type Size Sensing distance (in mm)
*1
*1
Sensing distance measured with E3X-DA-S family in standard mode. In high resolution mode the sensing distance is approx. 30% higher.
Order code
Standard High-flex Standard High-flex
dia 3 mm 750 530 E32-T12 2M E32-T12R 2M
dia 2 mm 220 130 E32-T22 2M E32-T22R 2M
dia 1.5 mm 220 130 E32-T222 2M E32-T222R 2M
dia 1 mm – 130 – E32-T223R 2M
dia 3 mm 460 210 E32-T14L 2M E32-T14LR 2M
dia 2 mm 340 – E32-A04 2M –
dia 1 mm 130 50 E32-T24 E32-T24R 2M
*2
*2
Models with 40 mm sleeve instead of 90 mm sleeve are available by adding ’4’ to the order code at the end, e.g. E32-TC200B4
dia 1.2 mm 750 530 E32-TC200B E32-TC200BR
dia 0.9 mm 220 130 E32-TC200F E32-TC200FR
dia 3 mm 80 30 E32-D22 2M E32-D22R 2M
dia 2 mm 75 40 E32-D32 2M E32-D32R 2M
dia 1.5 mm – 30 – E32-D22B 2M
dia 2 mm 30 15 E32-D24 E32-D24R 2M
*2
dia 2.5 mm 300 170 E32-DC200B 2M
*3
*3
Sleeve cannot be bent
E32-DC200BR
*3
dia 1.2 mm 80 30 E32-DC200F E32-DC200FR
dia 0.8 mm – 16 – E32-D33 2M
dia 0.5 mm – 3 – E32-D331 2M
Item Standard High-flex
E32-DC200B
E32-T12
E32-TC200B
E32-T14L E32-D32 E32-D22
E32-T222
E32-TC200F
E32-D24
E32-DC200F
E32-T22
E32-T24
E32-A04 E32-D32R
E32-D33
E32-D331
E32-D22B E32-DC200BR
E32-T12R
E32-TC200BR
E32-D22R
E32-T222R
E32-TC200FR
E32-D24R
E32-DC200FR
E32-T14LR
E32-T22R
E32-T223R
E32-T24R
Permissable bending
radius
R25 R10 R4 R1
Cut to length Yes
Material Head Brass-nickel
plated
Stainless steel Brass-nickel
plated
Stainless steel Brass-nickel plated Stainless steel
Fiber PMMA
Sheath Polyethylene coating PVC and
polyethylene
Polyethylene coating PVC and
polyethylene
PVC coating Polyethylene coating
Degree of protection IEC 60529 IP67 IEC 60529 IP50 IEC 60529 IP67

Omron E32 Specifications

General

Model	E32
Ambient Temperature	-25 to 55°C
Power Supply Voltage	N/A (Fiber unit only)
Output Type	N/A (Fiber unit only)
Operating Temperature	-25 to 55°C
Protection Rating	IP67
