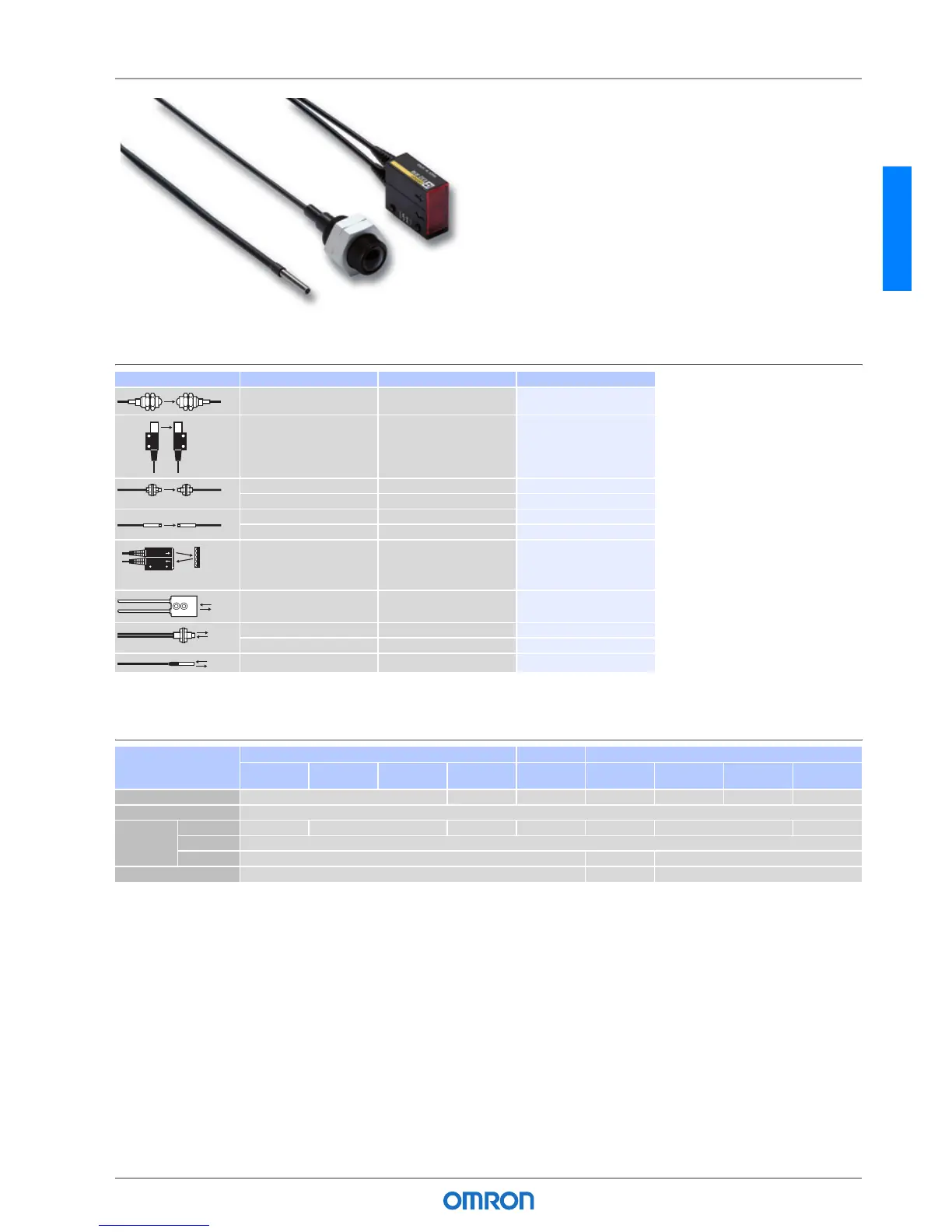

Fiber – general
E32
Fiber sensor heads
Longer distance fiber sensor heads
With built-in focal lenses the longer distance fiber heads provide enhanced
operational stability in dusty environments or long distance applications
• Sensing distance up to 20 m
• Built-in focal lens
• Sizes from dia 2mm to M14
Ordering information
Specifications
Sensor type Size Sensing distance (in mm)
*1
*1
Sensing distance measured with E3X-DA-S family in standard mode. In high resolution mode the sensing distance is approx. 30% higher.
Order code
M14 20000 E32-T17L
25,2x10.5x8 mm 3400 E32-T14
M4 1330 E32-T11L 2M
M3 680 E32-TC200A 2M
dia 3 mm 1330 E32-T12L 2M
dia 2 mm 440 E32-T22L 2M
21.5x27x10 mm 1500
*2
*2
Measured with E39-R1
E32-R16 2M
22x17.5x9 mm 700 E32-D16 2M
M6 400 E32-D11L 2M
M4 130 E32-D21L 2M
dia 3 mm 230 E32-D12 2M
Item Through-beam Retroreflective Diffuse reflective
E32-T17L/
E32-T14
E32-T11L/
E32-T12L
E32-TC200A E32-T22L E32-R16 E32-D16 E32-D11L E32-D21L E32-D12
Permissable bending radius R25 R10 R25 R4 R25 R10 R25
Cut to length Yes
Material Head ABS Brass-nickel plated Stainless steel ABS Aluminium Brass-nickel plated Stainless steel
Fiber PMMA
Sheath Polyethylene coating PVC coating Polyethylene coating
Degree of protection IEC 60529 IP67 IEC 60529 IP40 IEC 60529 IP67
Reflector

Omron E32 Specifications

General

Model	E32
Ambient Temperature	-25 to 55°C
Power Supply Voltage	N/A (Fiber unit only)
Output Type	N/A (Fiber unit only)
Operating Temperature	-25 to 55°C
Protection Rating	IP67
