Omron E3X-SD Series - Fiber Unit Overview

E3X-SD/-NA
8

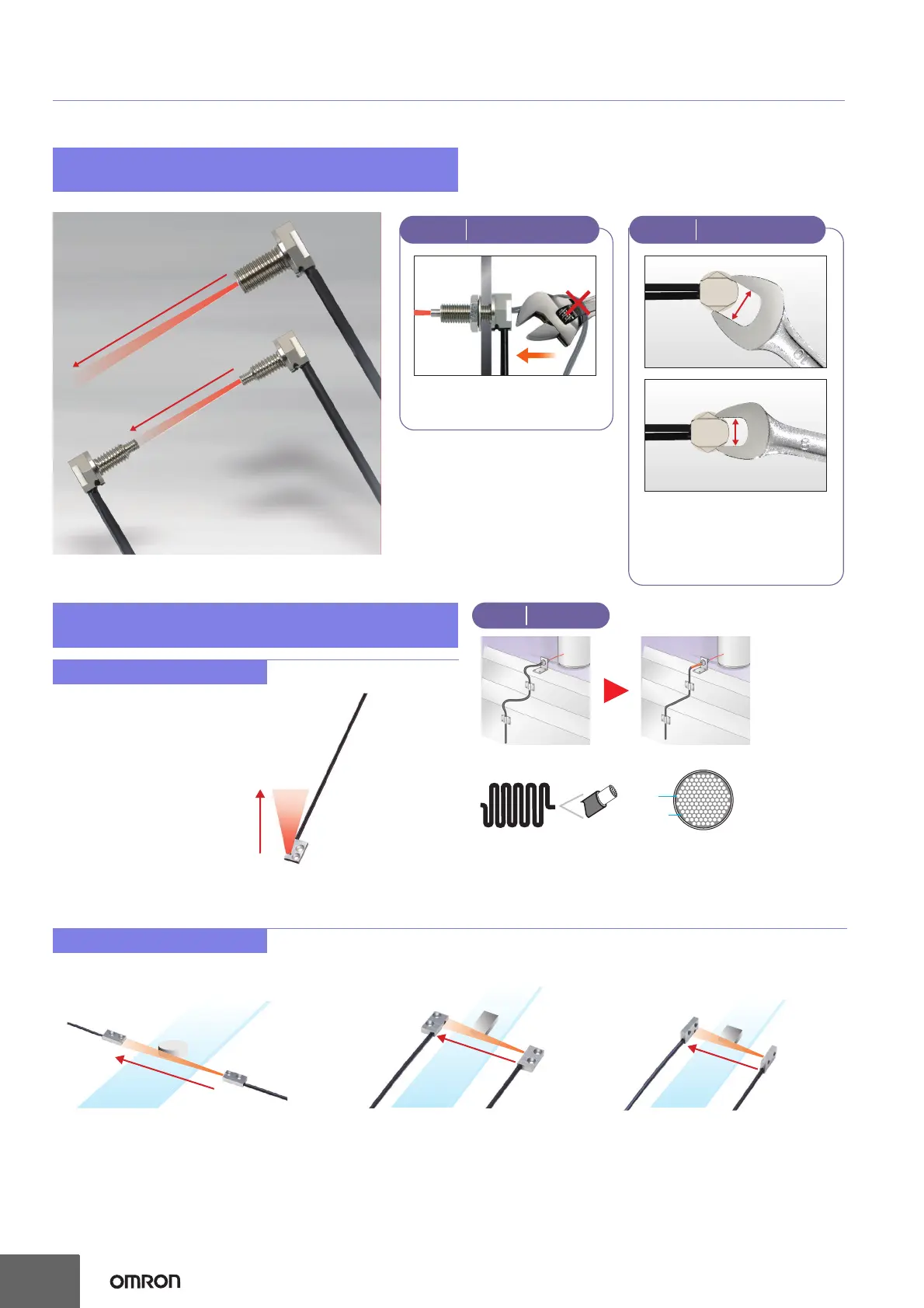

Fiber Unit Overview
New Head Shape
No snagging during maintenance.
Fiber flexibility prevents breaking.
L-shaped Attachment
Feature
1
Feature
2
10 mm*
Through-beam model,
M4 screw
E32-T11N
Reflective model,
M6 screw
E32-D11N
280 mm
90 mm
8 mm*
*For M6 models.
Convenient design
accommodates two wrench sizes.
Allows quick tightening.
No snagging, no breaking:
Right-angle (L-shaped) Models
Reflective Fiber Units
Size: 15 × 10 × 3 mm
Flat and flexible fiber models are easy to mount
and will not break.
20 mm
Flat View
E32-D15ZR
Flexible fiberConventional fiber
Cladding
Cores
No Breaking
Feature
A large number of ultrafine cores are all surrounded by cladding. As
a result, the fiber is flexible and can be bent without significantly
reducing the light intensity. This helps solve problems, such as
fiber being broken by getting caught on other objects.
Through-beam Fiber Units
Size: 15 × 8 × 3 mm
280 mm
110 mm
110 mm
Top View
E32-T15XR
Side View
E32-T15YR
Flat View
E32-T15ZR
