Photoelectric Sensors Technical Guide
Power Supply
When using a commercially available switching regulator, ground the
FG (frame ground) and G (ground) terminals.
If not grounded, switching noise in the power supply may cause
malfunction.

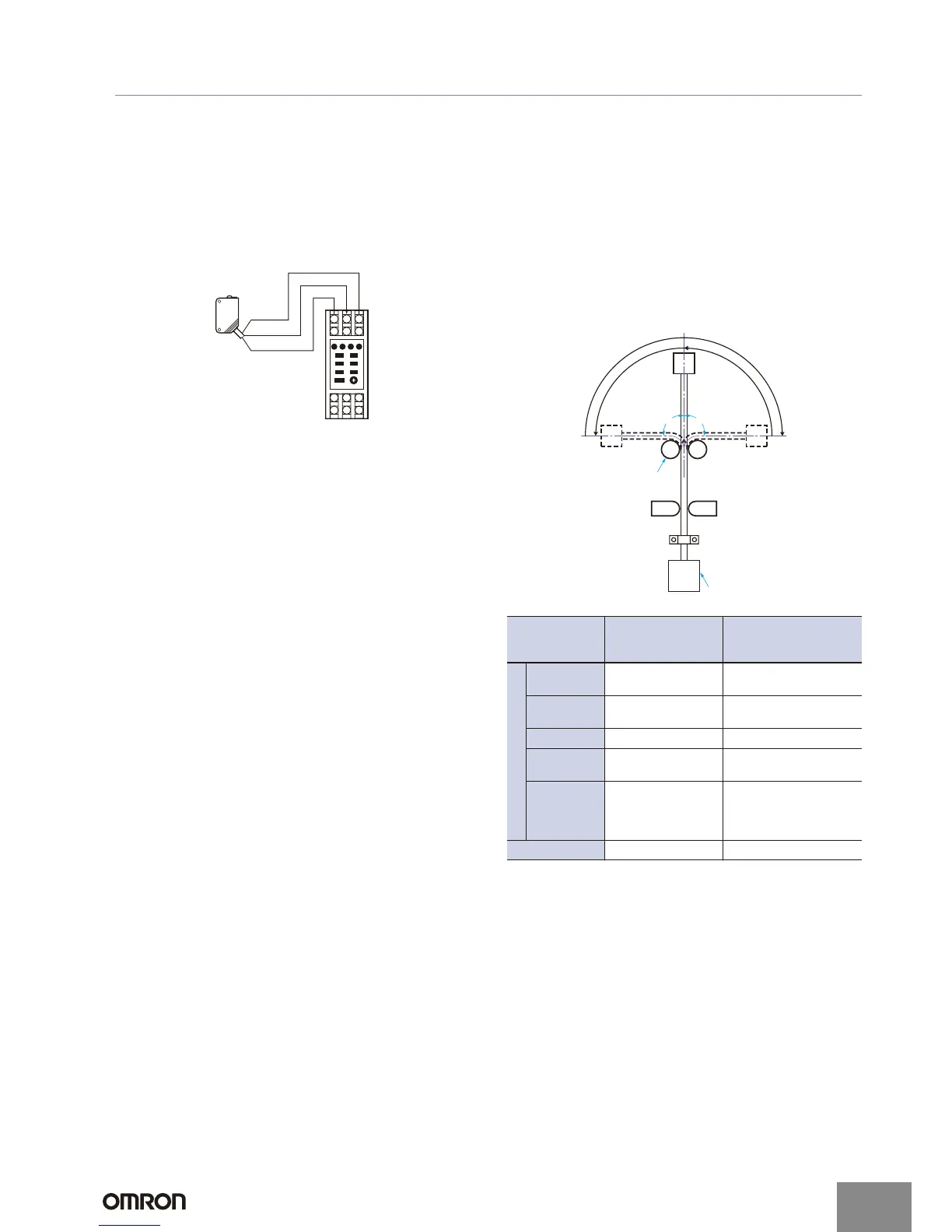

Example of Connection with S3D2 Sensor Controller
DC Three-wire NPN Output Sensors
Reverse operation is possible using the signal input switch on the
S3D2.
● Mounting
Attachment to Moving Parts
To mount the Photoelectric Sensor to a moving part, such as a robot
hand, consider using a Sensors that uses a bending-resistant cable
(robot cable).
Although the bending repetition tolerance of a standard cable is
approximately 13,000 times, robot cable has an excellent bending
tolerance of approximately 500,000 times.
Cable Bending Destruction Test (Tough Wire Breaking
Test)
With current flowing, bending is repeated to check the number of
bends until the current stops.
The testing conditions of the standard cable and robot cable are
different.
Refer to the values in the above table to check bend-resistant
performance under actual working conditions.
5
2
4
1
6
3
11
8
10
7
12
9
S3D2
Blue 0 V
Black OUT
Brown +12 V
Specimen
Standard cable
VR (H) 3 x18/0.12
Robot cable: Strong,
conductive electrical wire
2 x 0.15 mm
2
, shielded
Test
Description/conditions
Bending
angle (θ)
Left/right 90° each Left/right 45° each
Bending
repetitions
--- 60 bends/minute
Weight 300g 200g
Operation
per bending
(1) through (3) in
figure once
(1) through (3) in
figure once
Bending
radius of
support
points (R)
5 mm 2.5 mm
Result Approx. 13,000 times Approx. 500,000 times
Weight
R
(1)
(3)
(2)
θθ
