Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
19

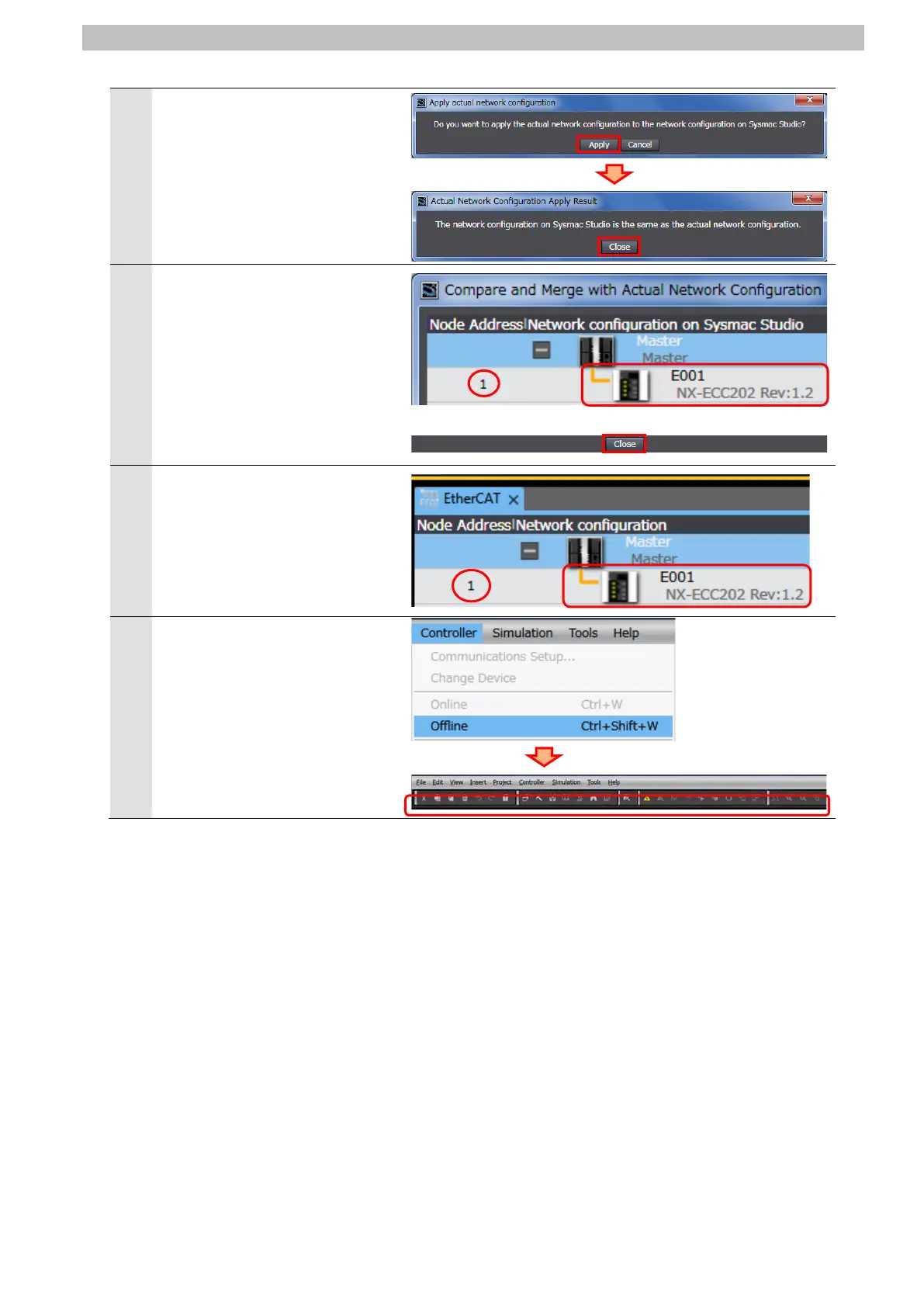

5
A confirmation dialog box is
displayed. Check the contents
and click Apply.
The confirmation dialog box on
the right is displayed. Check the
contents and click Close.
6
As a node address 1 slave,
E001 NX-ECC202 Rev:1.2 is
added to the Network
configuration on Sysmac Studio.
Check that the data above is
added. Click
Close
.
7
Node address 1 and E001
NX-ECC202 Rev:1.2 are added
to the EtherCAT Tab Page in the
Edit Pane.
8
Select Offline from the
Controller Menu.
The yellow bar under the toolbar
disappears.

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
