Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
18

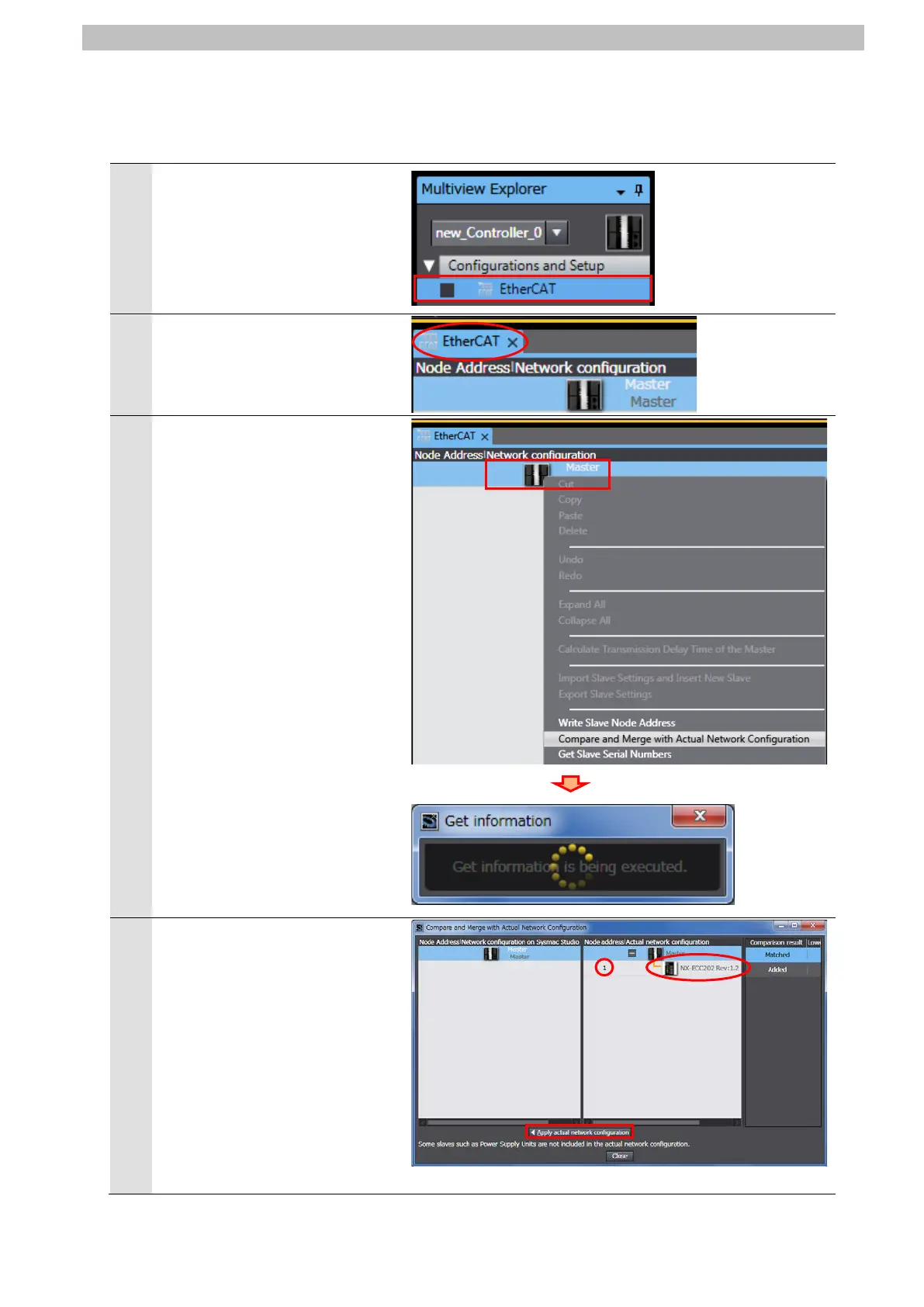

Setting up the EtherCAT Network Configuration 7.3.2.
Set up the EtherCAT network configuration.
1
Double-click EtherCAT under
Configurations and Setup in
the Multiview Explorer.
2
The EtherCAT Tab Page is
displayed in the Edit Pane.
3
Right-click Master on the
EtherCAT Tab Page in the Edit
Pane and select Compare and
Merge with Actual Network
Configuration.
A screen is displayed stating
"Get information is being
executed".
4
The Compare and Merge with
Actual Network Configuration
Dialog Box is displayed.
Node address 1 and
NX-ECC202 Rev:1.2 are added
to the Actual network
configuration after the
comparison.
Click Apply actual network
configuration.

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
