IO-Link Connection Procedure
21
3

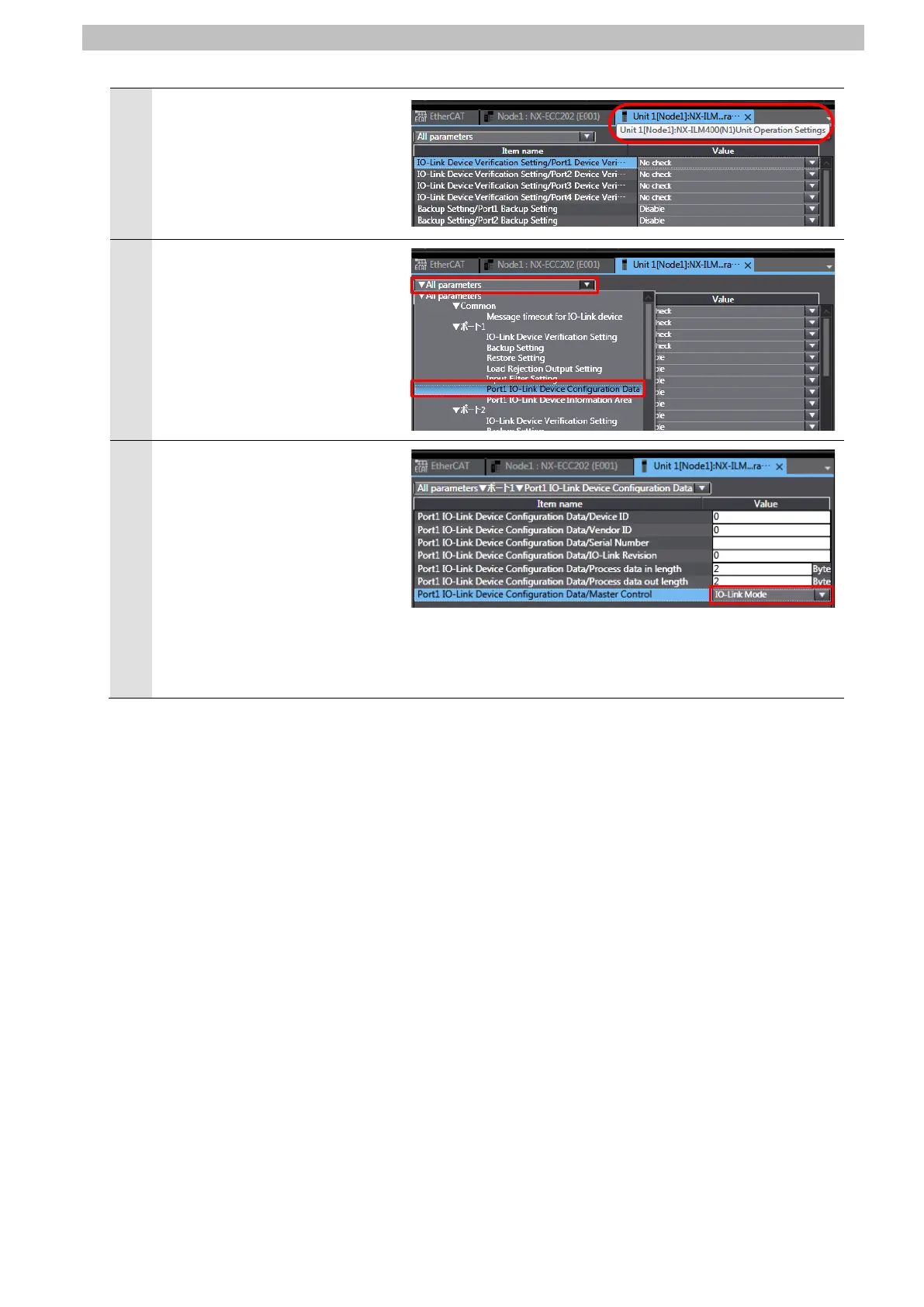

The Unit1[Node1]:NX-ILM400
(N1)Unit Operation Settings Tab
Page is displayed.
4
Select
Port1 - Port1
IO-Link Device Configuration
Data from the pull-down list (just
above the column "Item name")
to narrow down the parameters.
5
A list of Port1 IO-Link Device
Configuration Data is displayed.
Check that IO-Link Mode is
selected as the set value of
Port1 IO-Link Device
Configuration Data/Master
Control.
*If IO-Link Mode is not displayed
in the Value Column, select the
mode from the pull-down list.
