Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
27
9

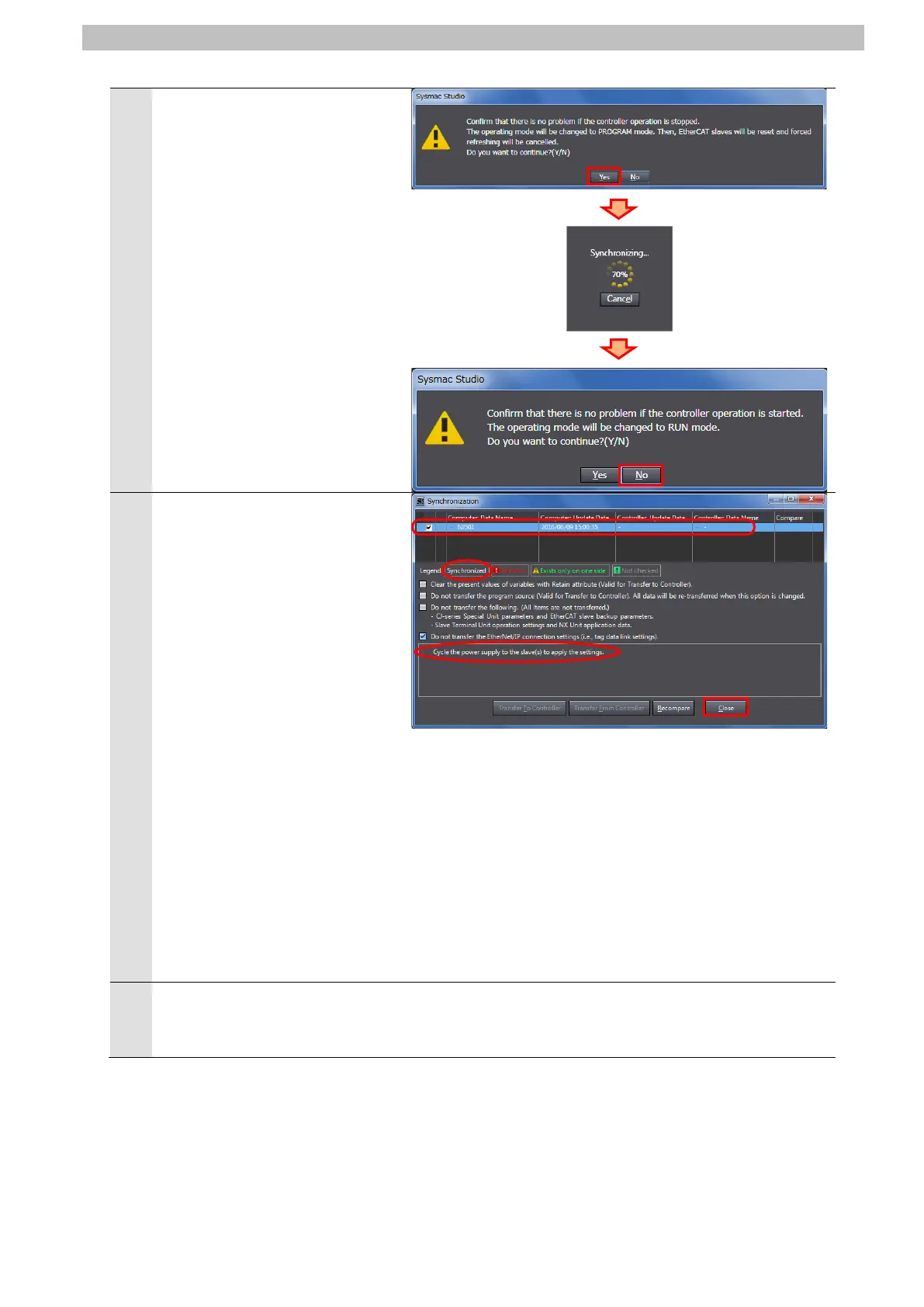

A confirmation dialog box is
displayed. Confirm that there is
no problem, and click Yes.
A screen is displayed stating
"Synchronizing".
A confirmation dialog box is
displayed. Confirm that there is
no problem, and click No.
*Do not return to RUN mode.
10
As shown in the figure on the
right, the font color that is used
to display the text of
synchronized data changes to
the same color as the one used
to specify "Synchronized".
Check that a message is
displayed stating "Cycle the
power supply to the slave(s) to
apply the settings". Click Close.
*When the Sysmac Studio
project data coincides with the
Controller data, the
synchronized data will have the
same font color as the one
used to specify
"Synchronized".
*If the synchronization fails,
check the wiring and repeat
from step 1.
11
To reflect the settings, turn OFF
Unit power supply for Slave
Terminal, then turn it back ON.

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
