Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
38
22

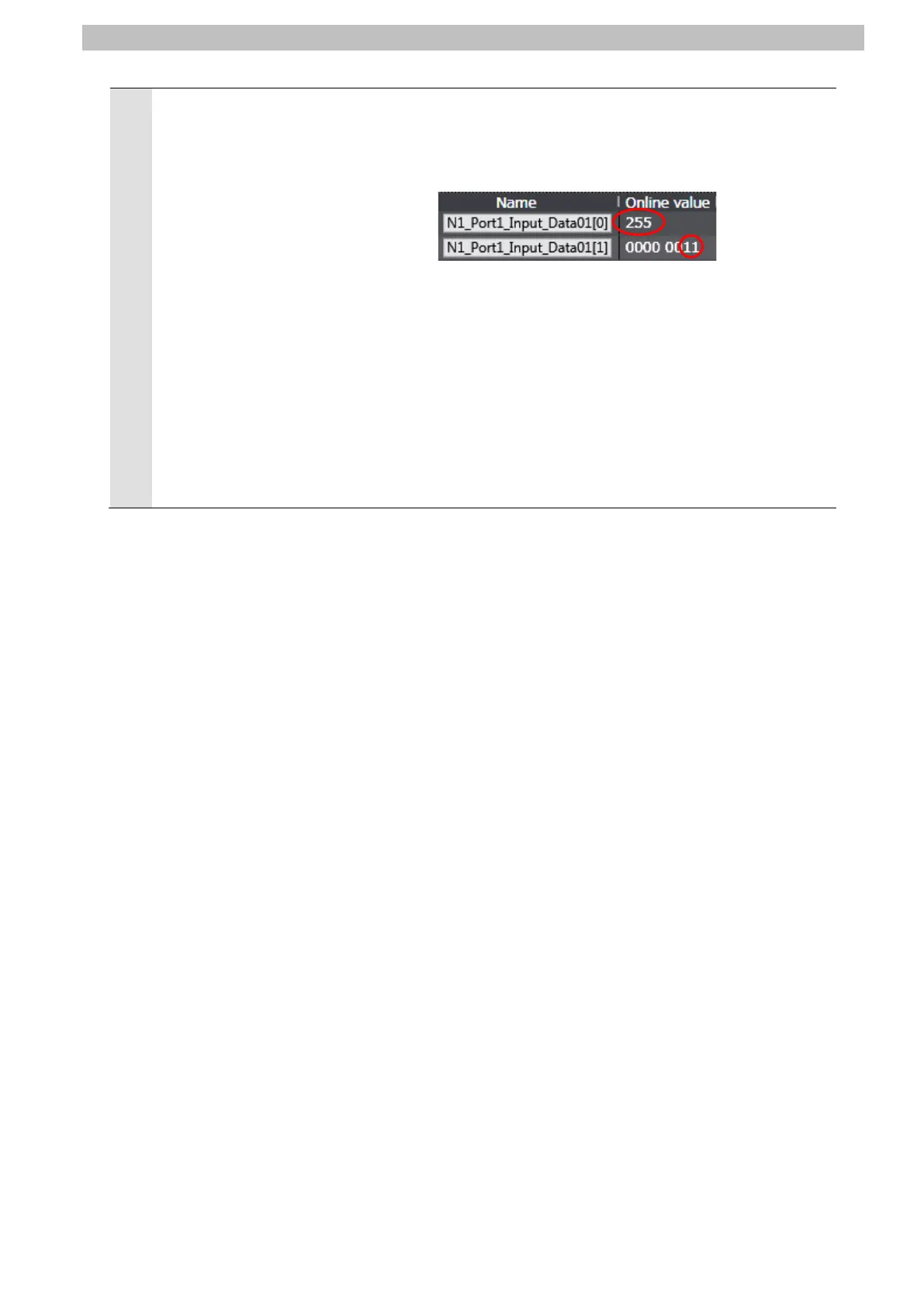

Check that the online values on the
Watch Tab Page of Sysmac Studio
are as shown below.
N1_Port1_Input_Data01[0]
: 255
N1_Port1_Input_Data01[1]
: 0000 0011 (Bits 0 and 1 are 1.)
*For details on each of the
variables, refer to 6.4. Device
Variables.
*You can check that the monitor
output (Detection Level) of Port 1 is
255 and that the control outputs 1
and 2 are ON; these values are the
same as the ones described in
step 21.

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
