Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
37
19

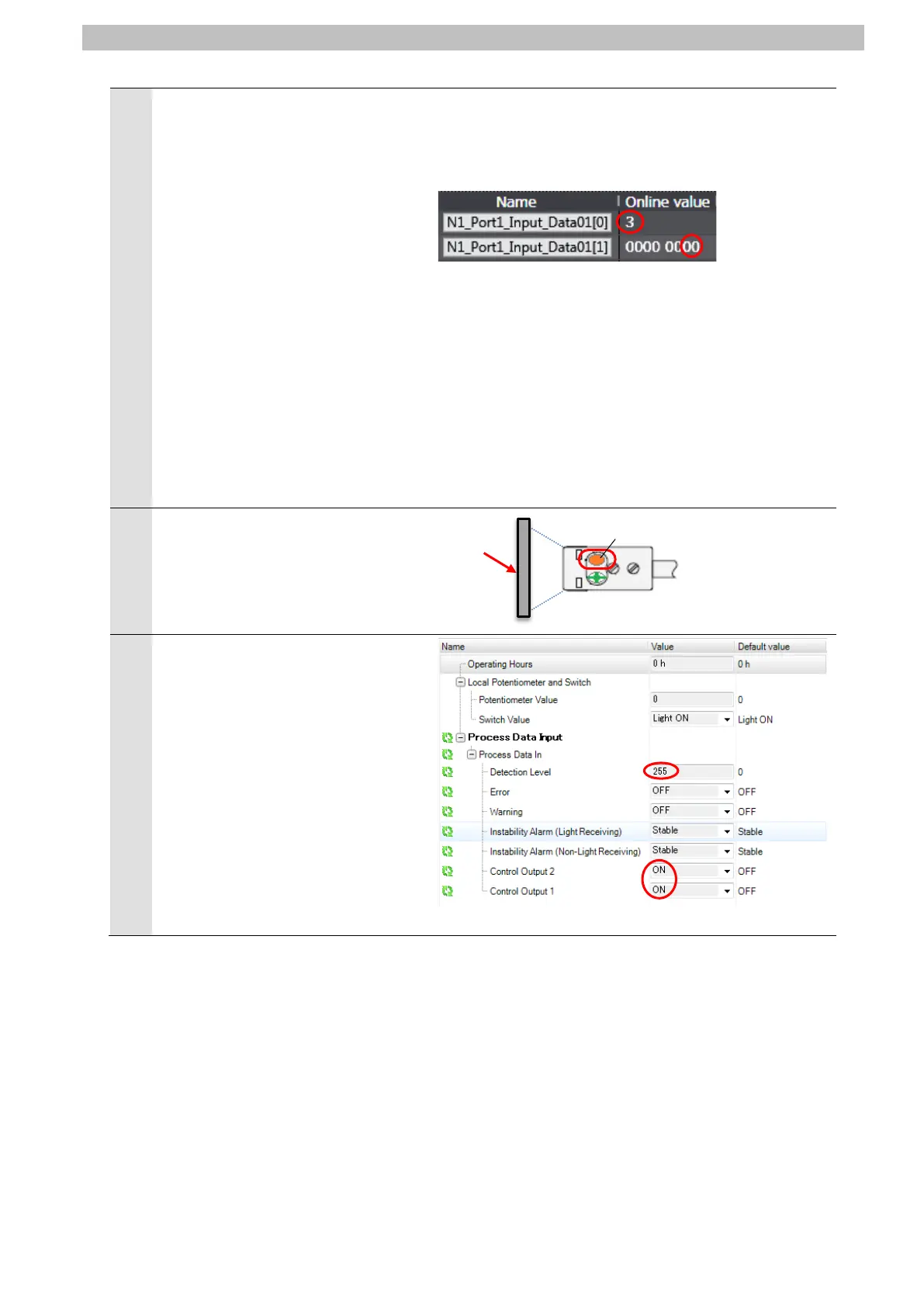

Check that the online values on the
Watch Tab Page of Sysmac Studio
are as shown below.
N1_Port1_Input_Data01[0]
: 3
N1_Port1_Input_Data01[1]
: 0000 0000 (Bits 0 and 1 are 0.)
*For details on each of the
variables, refer to 6.4. Device
Variables.
*You can check that the monitor
output (Detection Level) of Port 1 is
3 and that the control outputs 1
and 2 are OFF; these values are
the same as the ones described in
step 18.
20
Place Sensing object in front of
Photoelectric Sensor and check that
Operation indicator is lit in orange.
21
Check that the values of
Photoelectric Sensor in
CX-ConfiguratorFDT are as shown
below.
Detection Level: 255
Control Output 2: ON
Control Output 1: ON
*The value of the detection level
differs depending on the
environmental settings of
Photoelectric Sensor.
Sensing
object
Operation indicator
<Top view of Photoelectric Sensor>

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
