Omron E3Z series Network Connection Guide

7
．
IO-Link Connection Procedure
36
16

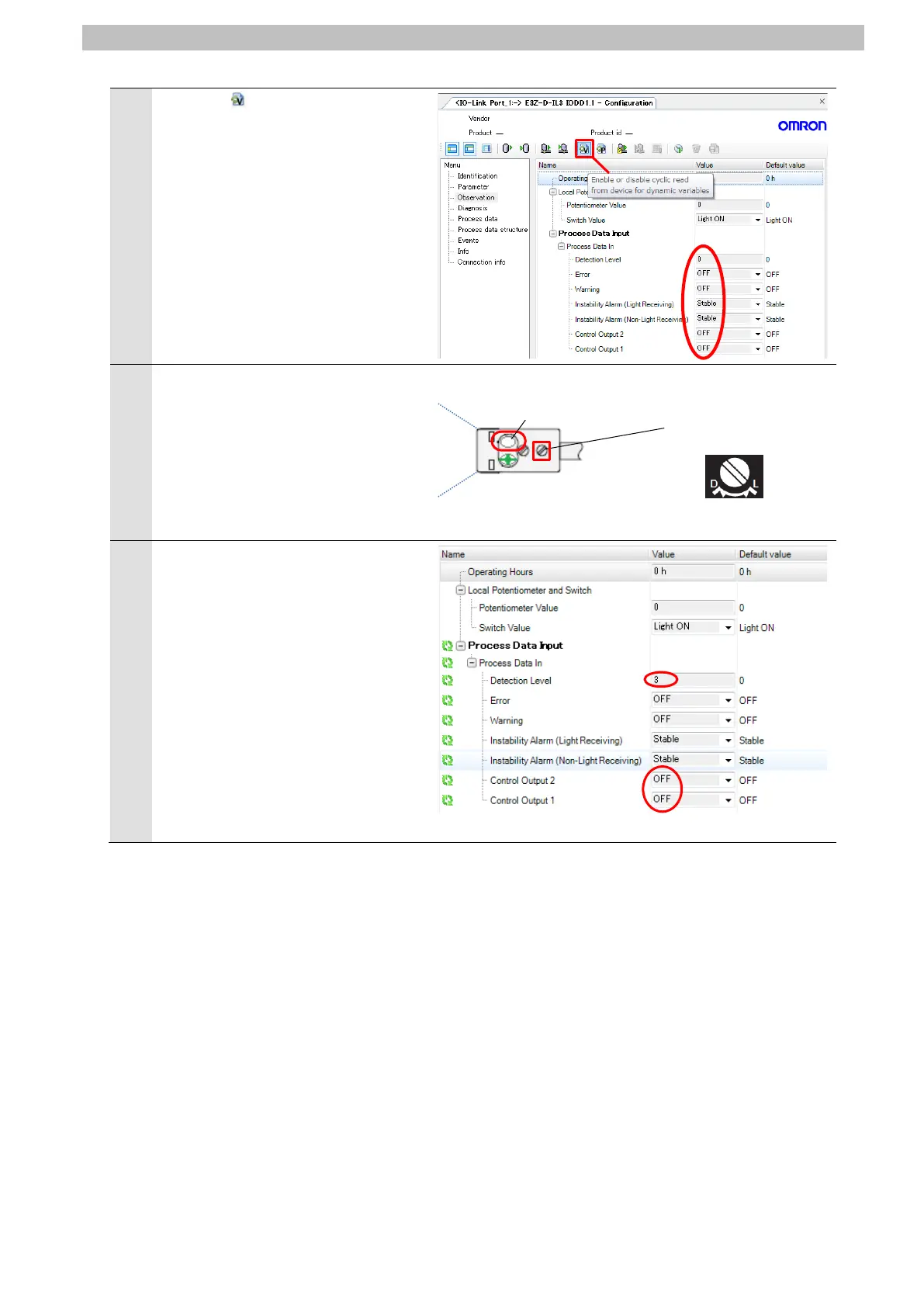

Click the icon (Enable or disable
cyclic read from device for dynamic
variables) on the <IO-Link Port_1:->
E3Z-D-IL3 IODD1.1 - Configuration
Tab Page.
The present values of the process
data for Photoelectric Sensor are
displayed in the Value Column.
17
Check that Operation mode switch
on Photoelectric Sensor is set to
Light ON (factory setting).
Make sure that there is no sensing
object in front of Photoelectric
Sensor and that Operation indicator
is not lit.
18
Check that the values of
Photoelectric Sensor in
CX-ConfiguratorFDT are as shown
below.
Detection Level: 3
Control Output 2: OFF
Control Output 1: OFF
*The value of the detection level
differs depending on the
environmental settings of
Photoelectric Sensor.
Operation indicator
<Top view of Photoelectric Sensor>
Operation mode switch
（
Light ON
）

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
