Omron E3Z series Network Connection Guide

8
．
Initialization method
41

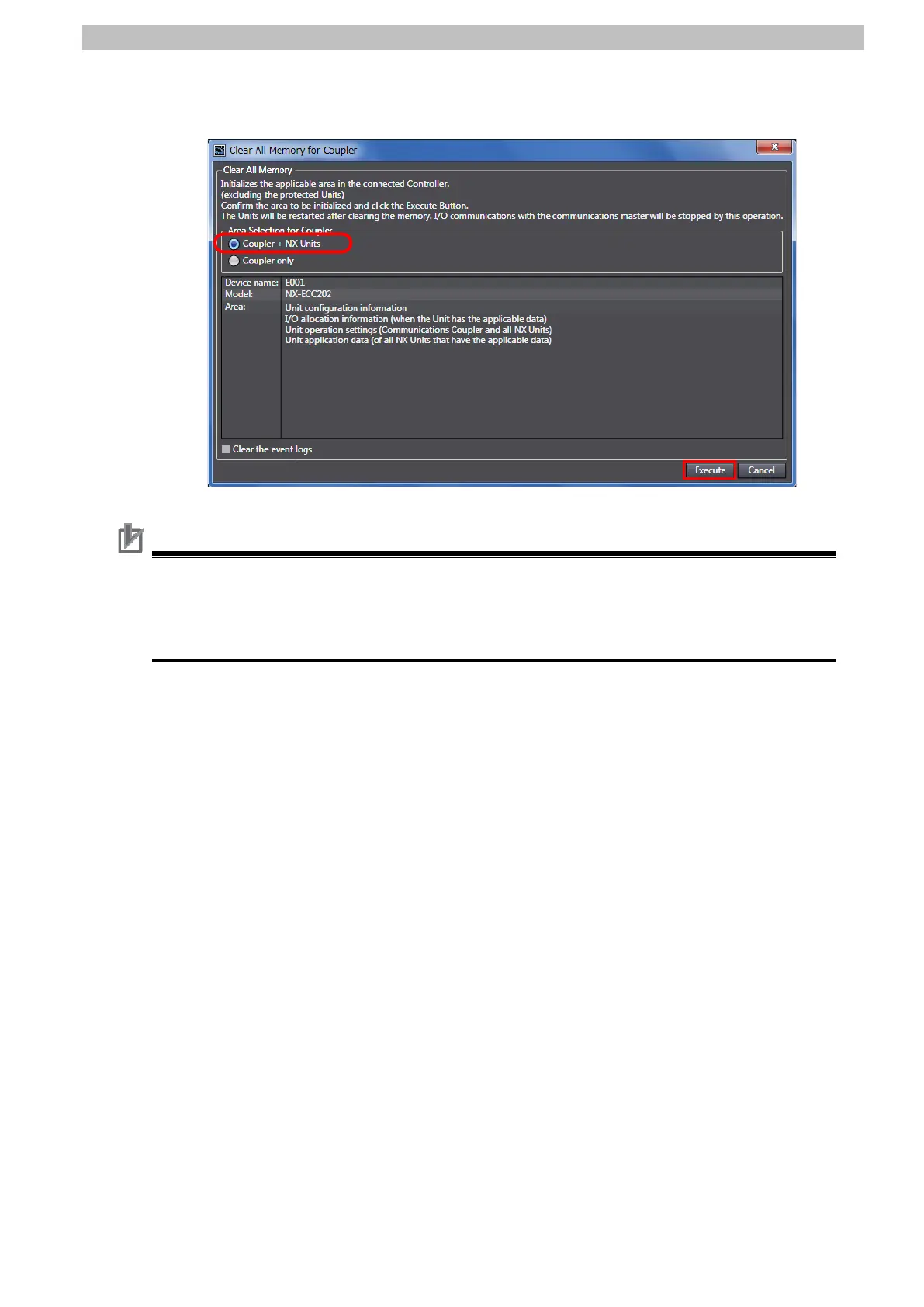

(5) The Clear All Memory for Coupler Dialog Box is displayed. Check that Coupler + NX Units
is selected. Click Execute.
Precautions for Correct Use
In the initialization of Slave Terminal, the backup data for the IO-Link devices that is stored in
IO-Link Master Unit is not cleared. If you need to clear the backup data stored in IO-Link
Master Unit, refer to Clearing Backup Data in 7-4-2 Backing Up Settings of the IO-Link
System User’s Manual (Cat. No. W570) to clear the backup data.

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
