19
Installation Section 2-1
Mounting to the Panel
1,2,3... 1. For waterproof mounting, waterproof packing must be installed on the
Controller. Waterproofing is not possible when group mounting several
Controllers. Waterproof packing is not necessary when there is no need for
the waterproofing function. There is no waterproof packing included with
the E5CZ-U.
2. Insert the E5CZ/E5CZ-U into the mounting hole in the panel.
3. Push the adapter from the terminals up to the panel, and temporarily fasten
the E5CZ/E5CZ-U.
4. Tighten the two fastening screws on the adapter. Alternately tighten the
two screws little by little to maintain a balance. Tighten the screws to a
torque of 0.29 to 0.39 N·m.
Mounting the Terminal Cover
For the E5CZ, make sure that the “UP” mark is facing up, and then fit the ter-
minal cover into the holes on the top and bottom.
E5AZ/EZ
Mounting to the Panel
1,2,3... 1. For waterproof mounting, waterproof packing must be installed on the
Controller. Waterproofing is not possible when group mounting several
Controllers. Waterproof packing is not necessary when there is no need for
the waterproofing function.
2. Insert the E5AZ/E5EZ into the square mounting hole in the panel (thick-
ness: 1 to 8 mm). Attach the Mounting Brackets provided with the product
to the mounting grooves on the top and bottom surfaces of the rear case.
3. Use a ratchet to alternately tighten the screws on the top and bottom
Mounting Brackets little by little to maintain balance, until the ratchet turns
freely.
Mounting the Terminal Cover
Fit the E53-COV11 Terminal Cover over the upper hook. Mount it in the direc-
tion shown in the above diagram. If the terminal cover is mounted in the oppo-
site direction, proper mounting of the fixtures may not be possible.

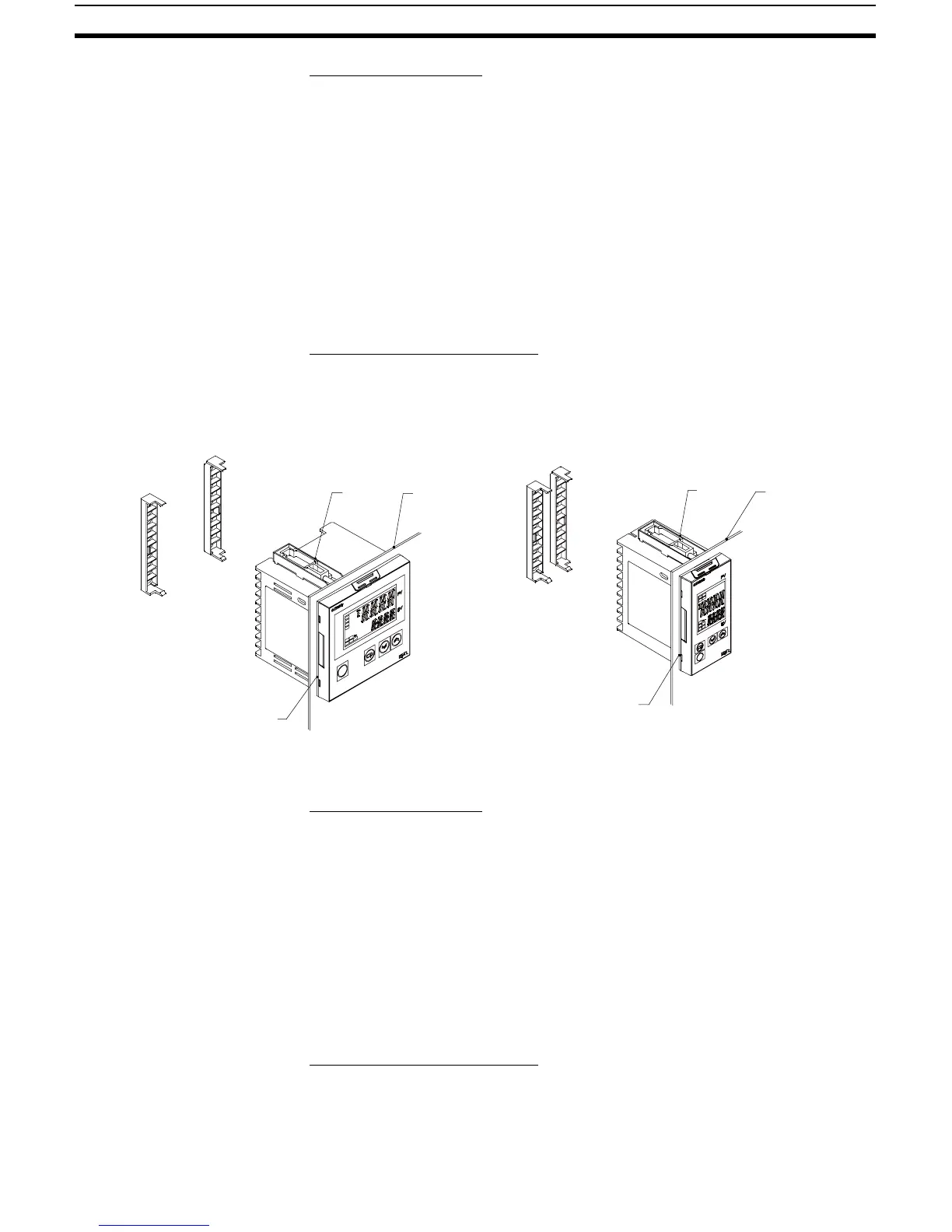

E5AZ
Waterproof packing
(Accessory)
Panel
Terminal Cover
(E53-COV11)
Mounting
Bracket
E5EZ
Terminal Cover
(E53-COV11)
Waterproof packing
(Accessory)
Mounting
Bracket
Panel
To Next Page
