Omron E5CC-800 Specification & Installation Instructions

E5CC-800/E5CC-B-800/E5CC-U-800
14

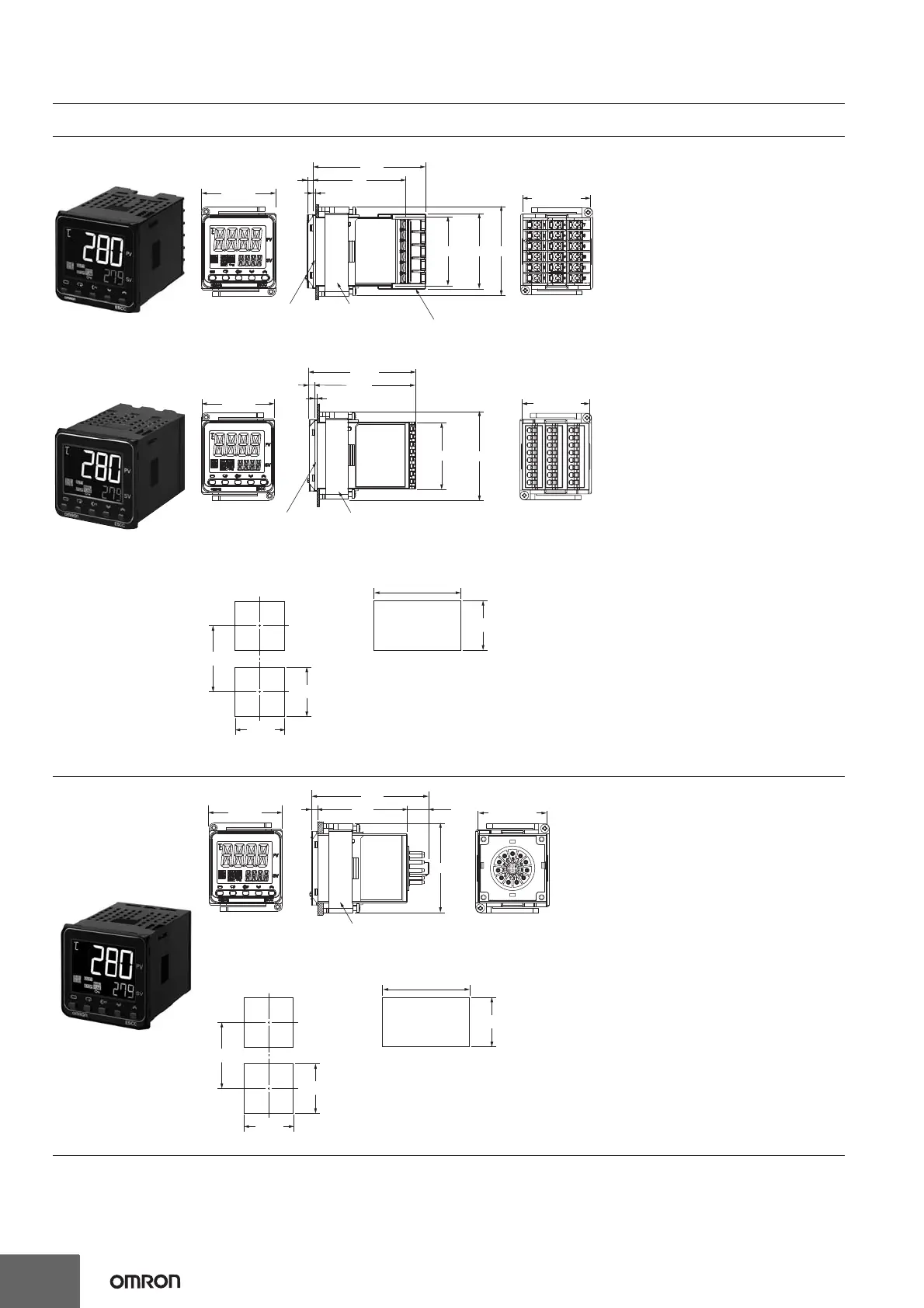

Dimensions (Unit: mm)
Controllers
45
+0.6
0
45
+0.6
0
45
+0.6
0
60 min.
(48 × number of units - 2.5)
+1.0
0
Panel Cutout
Mounted Separately Group Mounted
48 × 48
4
1
73.1
60
Adapter
(Accessory)
Terminal Cover
(E53-COV17)
(Sold separately)
5848.8
Waterproof Packing
(Accessory)
44.8 × 44.8
44.8 × 44.8
E5CC-800
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain
the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the
waterproof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the allowable operating
temperature specified in the specifications.
(71.4)
67.4
4
(1)
58
Adapter
(Accessory)
48 × 48
44.8 × 44.8
44.8 × 44.8
Waterproof Packing
(Accessory)
E5CC-B-800
58
76.8
58.6
4
14.2
48 × 48
Adapter
(Accessory)
44.8 × 44.8
45
+0.6
0
45
+0.6
0
45
+0.6
0
60 min.
(48 × number of units - 2.5)
+1.0
0
Panel Cutout
Mounted Separately Group Mounted
E5CC-U-800
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain
the specified mounting space between Controllers.)
• When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the allowable operating
temperature specified in the specifications.

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
