Omron E5CC-800 Specification & Installation Instructions

E5CC-800/E5CC-B-800/E5CC-U-800
16

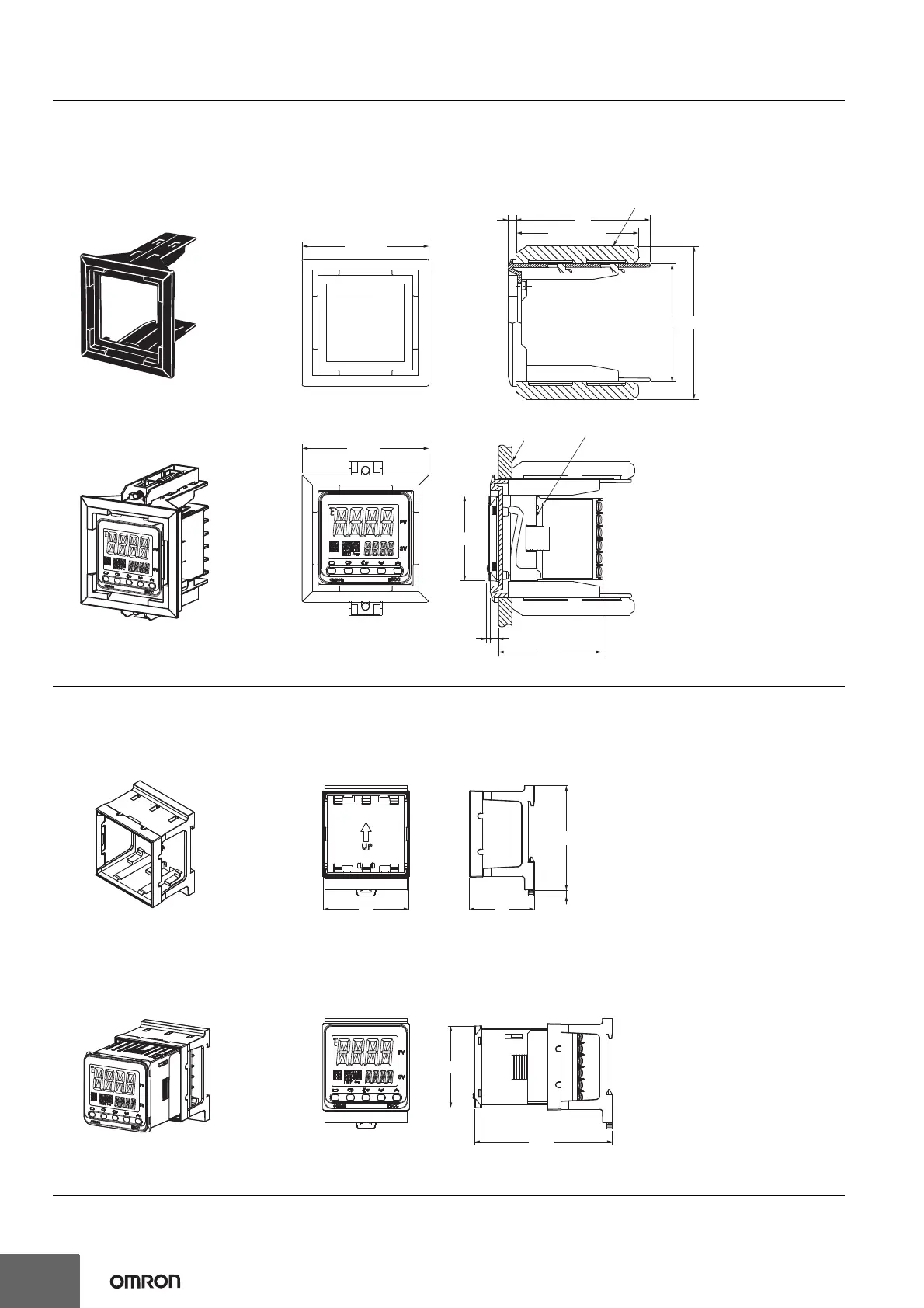

● Adapter
● DIN Track Mounting Adapter
Fixture (Accessory)
69.6 to 77.6
8767 × 67
72 × 72
76
4.7
62.8
To back of the E5CC-800
72 × 72
48 × 48
Panel (1 to 8 mm)
Mounting Adapter
Y92F-30
(Accessory)
2.2 4.7
Y92F-45
Mounted to E5CC-800
Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B@.
2. Only black is available.
50
61
3.5
38
48
80.5
Y92F-52
Mounted to E5CC-800
Note: 1. This Adapter cannot be used together with the Terminal Cover.
Remove the Terminal Cover to use the Adapter.
2. This Adapter cannot be used with the E5CC-B.
This Adapter is used to mount the
E5CC-800 to a DIN Track.
If you use the Adapter, there is no
need for a plate to mount in the
panel or to drill mounting holes in
the panel.

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
