Omron E5CC-800 Specification & Installation Instructions

E5EC-800/E5EC-B-800/E5AC-800
34

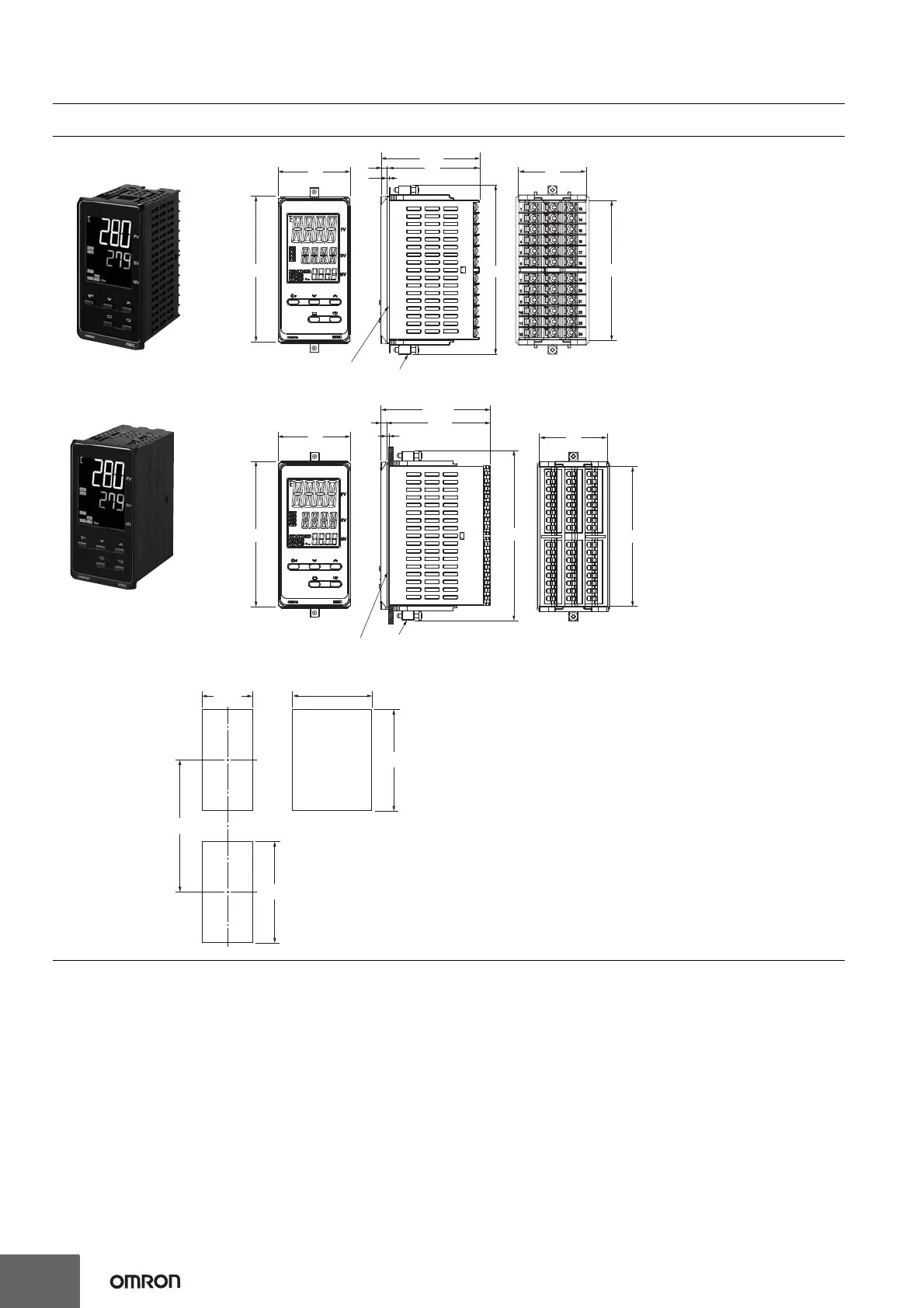

Dimensions (Unit: mm)
Controllers
1
4
Adapter
(Accessory)
Waterproof
Packing (Accessory)
96
48
60
44
91
110
(64)
E5EC-800
92
-0.8
0
92
+0.8
0
45
+0.6
0
120 min.
(48 × number of units − 2.5)
+1.0
0
Group mounting does not
allow waterproofing.
Mounted Separately
Group Mounted
• Recommended panel thickness is 1 to 8 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified
mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the waterproof packing
onto the Controller.
• When two or more Controllers are mounted, make sure that the surrounding
temperature does not exceed the allowable operating temperature specified in
the specifications.
E5EC-B-800
110
67.4
(71.4)
4
(1)
96
48
44
91
Adapter
(Accessory)
Waterproof Packing
(Accessory)

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
