Omron E5CC-800 Specification & Installation Instructions

E5DC-800
49

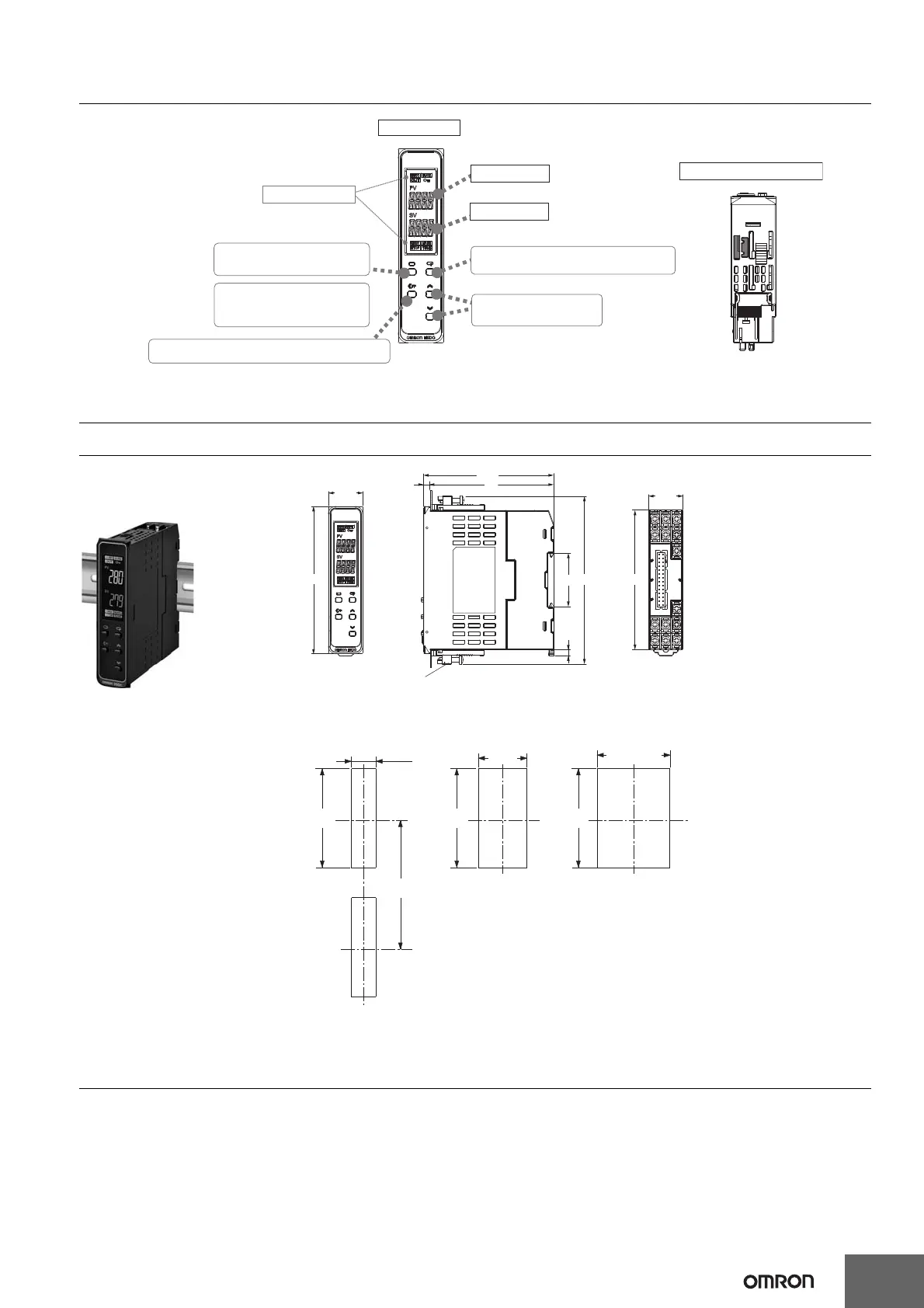

Nomenclature
Dimensions (Unit: mm)
Controllers
Front panel
Bottom View of E5DC-800
Operation indicators
PV or specified parameter
SP or specified parameter value
No.2 display
No. 1 display
Use the M Key to change to another
parameter.
Use the U D Keys to
set the parameter.
Press O Key for at least 3
seconds to go to Initial
Setting Level.
Use S Key to change the digit (default setting).
Press O Key once to go to
Adjustment Level.
E5DC-800
22.7
+0.3
0
120 min
Mounted Separately Two-Unit Mounting Group Mounted
92
+0.8
0
45
+0.6
0
92
+0.8
0
92
+0.8
0
(22.5 × number of units)
+1.0
0
96
110 91
(85)
81
35
22.5
22.5
4
4
Mounting Adapter
(Accessory: Sold separately)
E5DC-800
• Recommended panel thickness is 1 to 8 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• When two or more Digital Termperature Controllers are mounted, make sure that the surrounding temperature does
not exceed the allowable operating temperature specified in the specifications.
The above figure shows the
Terminal Unit attached to
the Main Unit.

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
