E5EC-800/E5EC-B-800/E5AC-800
33

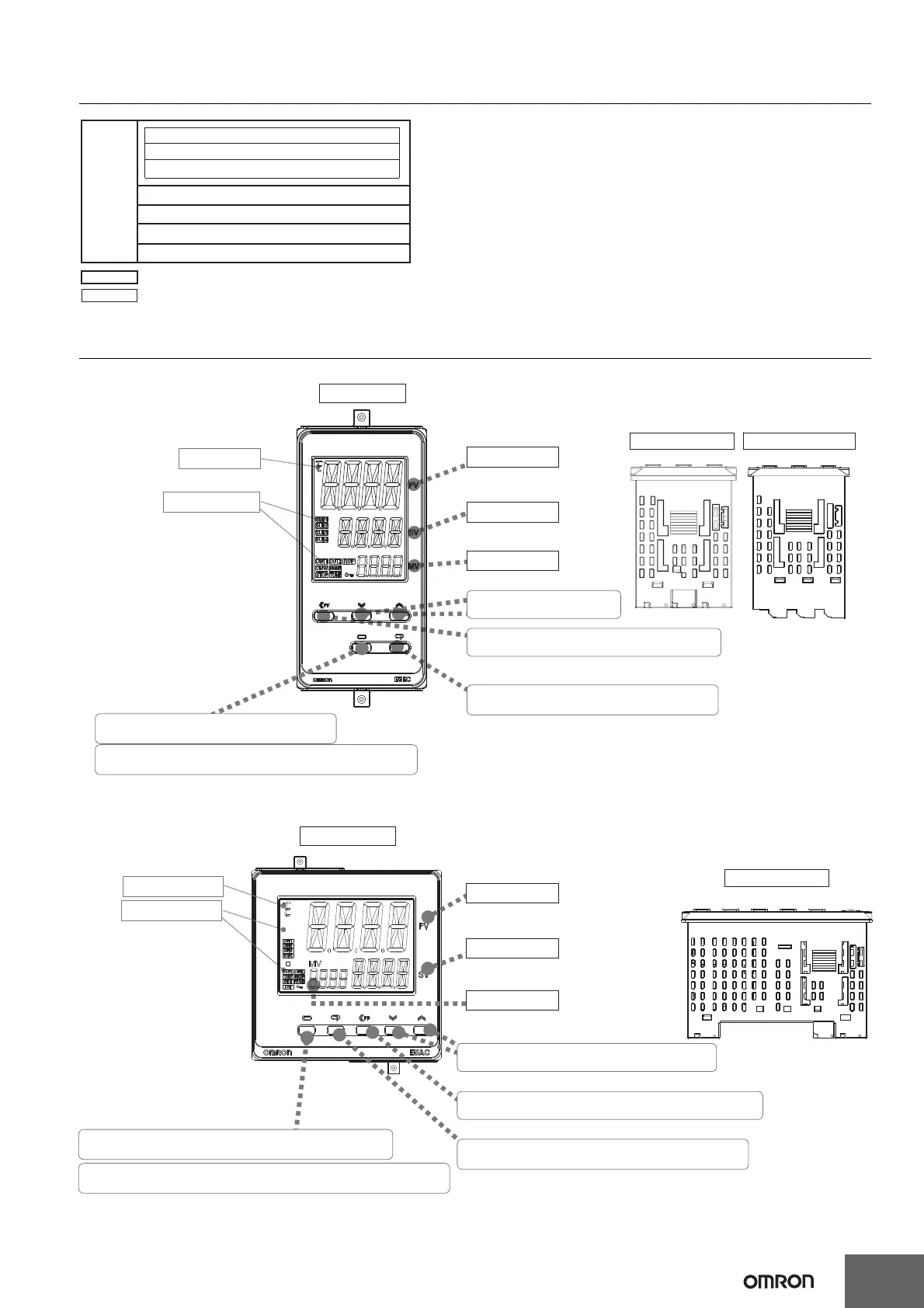

Isolation/Insulation Block Diagrams
Nomenclature
Communications and event inputs
Sensor input, CT input, and potentiometer input
Voltage output (for driving SSR) and linear current output
Relay output
Auxiliary output 1
Auxiliary output 2
: Reinforced insulation
: Functional isolation
Power
Supply
Auxiliary output 3
Operation indicators
Temperature unit
Use S Key to change the digit (default setting).
Use the M Key to change to another parameter.
No. 1 display
No. 2 display
PV or specified parameter
SP or specified parameter value
No. 3 display
Manipulated value or other value
Top View of E5EC-800
Use the U D Keys to set
the parameter.
Front panel
Press O Key once to go to Adjustment Level.
Press O Key for at least 3 seconds to go to Initial Setting Level.
Top View of E5EC-B-800
E5EC-800/E5EC-B-800
Operation indicators
Press the S Key to change the digit (default setting).
Press the M Key to change to another parameter.
No. 1 display
No. 2 display
Press the O Key once to go to the Adjustment Level.
Press the O Key for at least 3 seconds to go to the Initial Setting Level.
PV or specified parameter
SP or specified parameter value
No. 3 display
Manipulated value or other value
Press the U or D Key to set the parameter.
Top View of E5AC-800
Front Panel
Temperature unit
E5AC-800
