Omron E5CC

Simplicity on the Worksite Solutions Guide for FAQs: E5CC/E5EC
Using PID Control
3-2
Using PID Control
You set this parameter in the Initial Setting Level. The parameter is set to ON/OFF control by default.

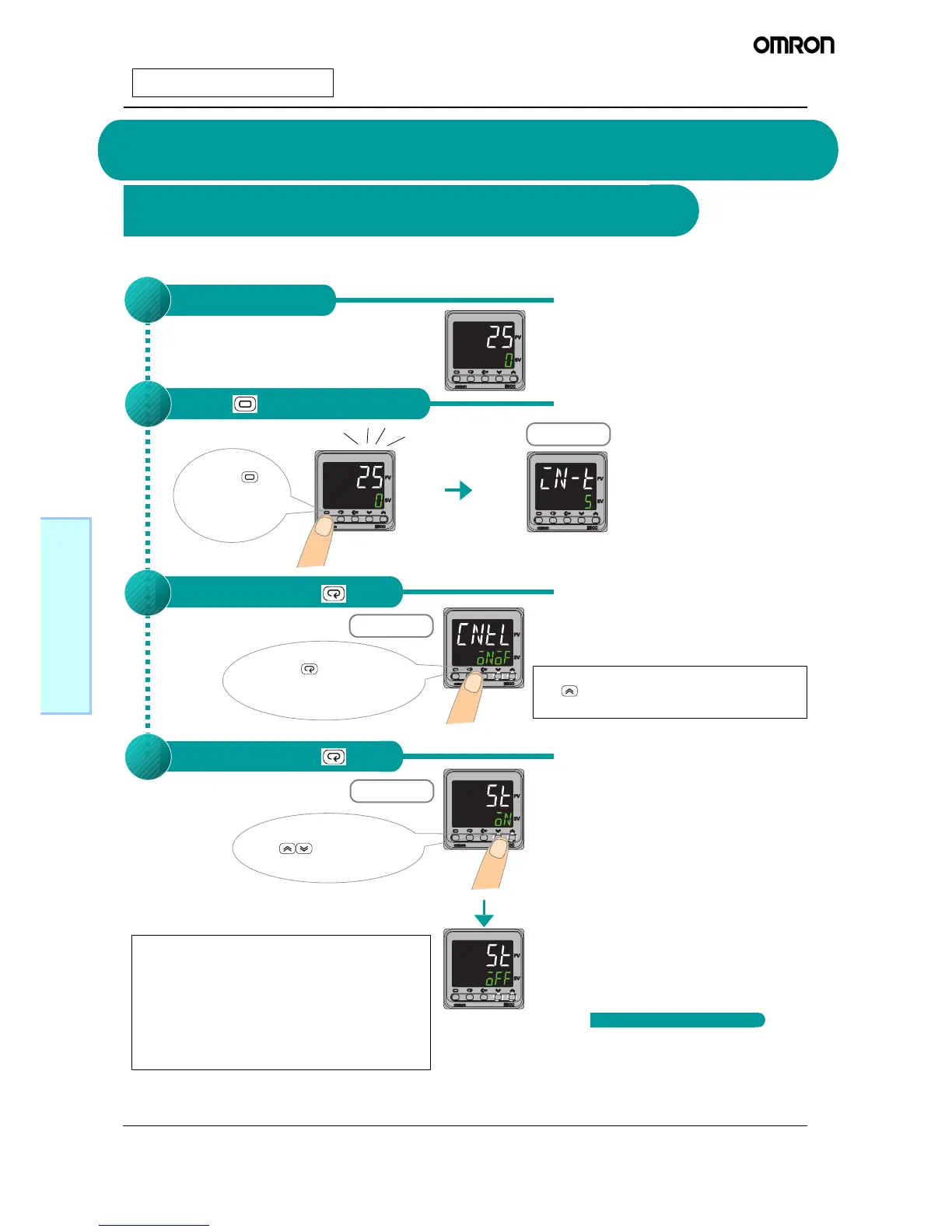

Step 2 Setting PID Control Parameters
1 Setting PID Control
Press the
(Level) Key for at
least 3 seconds.
Press the ( Mode) Key
several times to display cntl
(CNTL).
Change the set value with
the (Up and Down)
Keys.
←
cntl
(CNTL): Indicates the Control Method parameter.
←Default setting is onof (ONOF): ON/OFF control
Initial Setting Level
←in-t (IN-T) will be displayed to
show that the Initial Setting Level
has been entered.
Press the K ey for at least 3 seconds.
←Flashes 3 times.
2
Change the parameter with the Key .
3
Change the parameter with the Key .
4
If
onof
(ON/OFF control) is displayed, press
the ( Up) Key to change to
pid
(PID) (PID
control).
off (OFF):
on
(ON):
Self-tuning disabled. Use this setting to perform
autotuning or to set the PID constants manually.
Self-tuning enabled. Use this setting to perform
self-tuning
←
st
(ST): Indicates the Self-tuning parameter.
←Default setting is on (ON): Enabled.
You cannot set the following parameters while self-tuning (ST)
is enabled.
• Adjustment Level: MV Upper Limit, MV Lower Limit, SP
Ramp Set Value, and SP Ramp Fall Value
• Advanced Function Setting Level: SP Ramp Time Unit
* To set these parameters, first set the st (ST) (self-tuning)
parameter in the Initial Setting Level to off (OFF) to
disable self-tuning.
Initial Setting Level
Initial Setting Level
Turn ON the power supply.
1
* cp (CP): Default setting of control period is 20 seconds for a
relay output (R) and 2 seconds for a voltage pulse output (Q).
(Refer to on page 3-1.)
2. Ad
j
usting PID Constants
