E5@C/E5@C-T
134

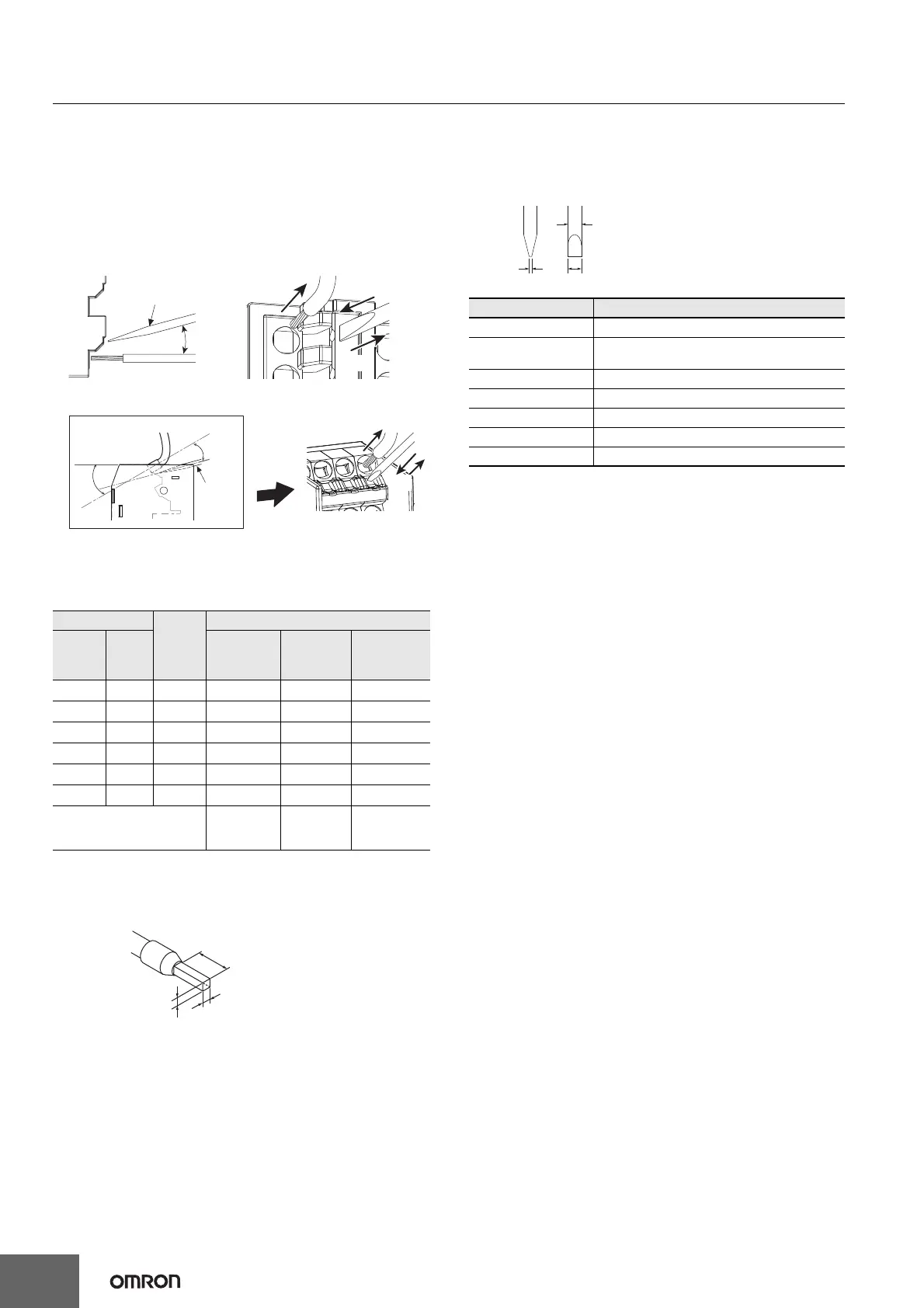

2. Removing Wires from the Push-In Plus Terminal Block
Use the following procedure to remove wires from the terminal block.
The same method is used to remove stranded wires, solid wires, and
ferrules.
1. Hold a flat-blade screwdriver at an angle and insert it into the
release hole.
2. With the flat-blade screwdriver still inserted into the release hole,
remove the wire from the terminal insertion hole.
3. Remove the flat-blade screwdriver from the release hole.
3. Recommended Ferrules and Crimp Tools
Recommended ferrules
Note: 1. Make sure that the outer diameter of the wire coating is
smaller than the inner diameter of the insulation sleeve of
the recommended ferrule.
2. Make sure that the ferrule processing dimensions conform
to the following figures.
Recommended Flat-blade Screwdriver
Use a flat-blade screwdriver to connect and remove wires.
Use the following flat-blade screwdriver.
The following table shows manufacturers and models as of 2015/Dec.
* OMRON's exclusive purchase model XW4Z-00B is available to
order as SZF 0-0,4 x 2,5 (manufactured by Phoenix Contact).
Applicable wire Ferrule
Con-
ductor
length
(mm)
Recommended ferrules
mm
2
AWG
Manufactured
by Phoenix
Contact
Manufactured
by
Weidmuller
Manufactured
by
Wago
0.25 24 8 AI0.25-8
H0.25/12 FE-0.25-8N-YE
0.34 22 8 AI0.34-8
H0.34/12 FE-0.34-8N-TQ
0.5 20 8 AI0.5-8 H0.5/14
FE-0.5-8N-WH
0.75 18 8 AI0.75-8
H0.75/14 FE-0.75-8N-GY
1 18 8 AI1-8 H1.0/14
FE-1.0-8N-RD
1.5 16 8 AI1.5-8 H1.5/14
FE-1.5-8N-BK
Recommended crimp tool
CRIMPFOX6
CRIMPFOX6T-F
CRIMPFOX10S
PZ6 roto
Variocrimp4
10 to 15°
Flat-blade screwdriver
(1)(2)
(3)
E5CC-B/EC-B
∗
Side view
of the product
∗
Side view of the product
Flat-blade
screwdriver
E5DC-B
(1)
(2)
(3)
10 to 15°
30°
2.1 mm max.
2.7 mm max.
8 mm
Model Manufacturer
ESD 0,40✕2,5 Wera
SZS 0,4✕2,5
SZF 0-0,4✕2,5
*
Phoenix Contact
0.4✕2.5✕75 302 Wiha
AEF.2,5✕75 Facom
210-719 Wago
SDIS 0.4✕2.5✕75 Weidmuller
9900 (-2.5✕75) Vessel
FrontSide
0.4 mm
2.5 mm dia.
2.5 mm
