E5CD-800
13

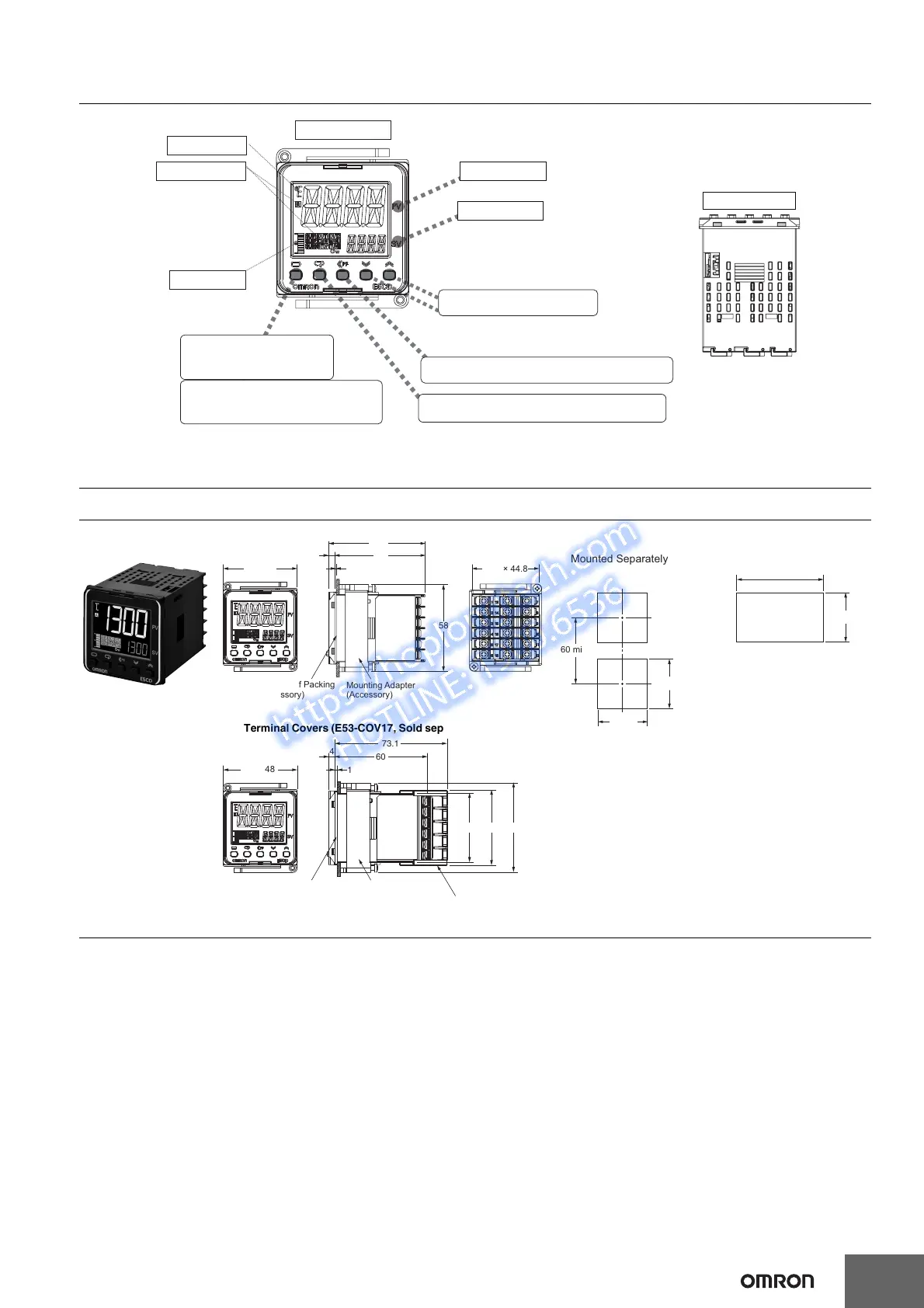

Nomenclature
Dimensions
(Unit: mm)
Controllers
E5CD-800
Front panel
Press O Key once to
go to Adjustment Level.
Press O Key for at least
3 seconds to go to Initial Setting Level.
Use the M Key to change to another parameter.
Operation indicators
No. 1 display
No. 2 display
Temperature unit
Use S Key to change the digit (default setting).
Use the U D Keys to set the
parameter.
PV or specified parameter
SP or specified parameter value
Top View
Bar display
Group mounting does not allow
waterproofing.
45
+0.6
0
45
+0.6
0
45
+0.6
0
60 min.
(48 × number of units - 2.5)
+1.0
0
Panel Cutout
Mounted Separately
Group Mounted
Mounting Adapter
(Accessory)
Waterproof Packing
(Accessory)
44.8 × 44.8
4
1
60
(64)
58
48 × 48
E5CD-800
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Main-
tain the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the water-
proof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the allowable operat-
ing temperature specified in the specifications.
Terminal Cover
(E53-COV17)
(Sold separately)
Mounting Adapter
(Accessory)
Waterproof Packing
(Accessory)
48 × 48
44.8 × 44.8
4
1
73.1
60
5848.8
With Terminal Covers (E53-COV17, Sold separately) Mounted
