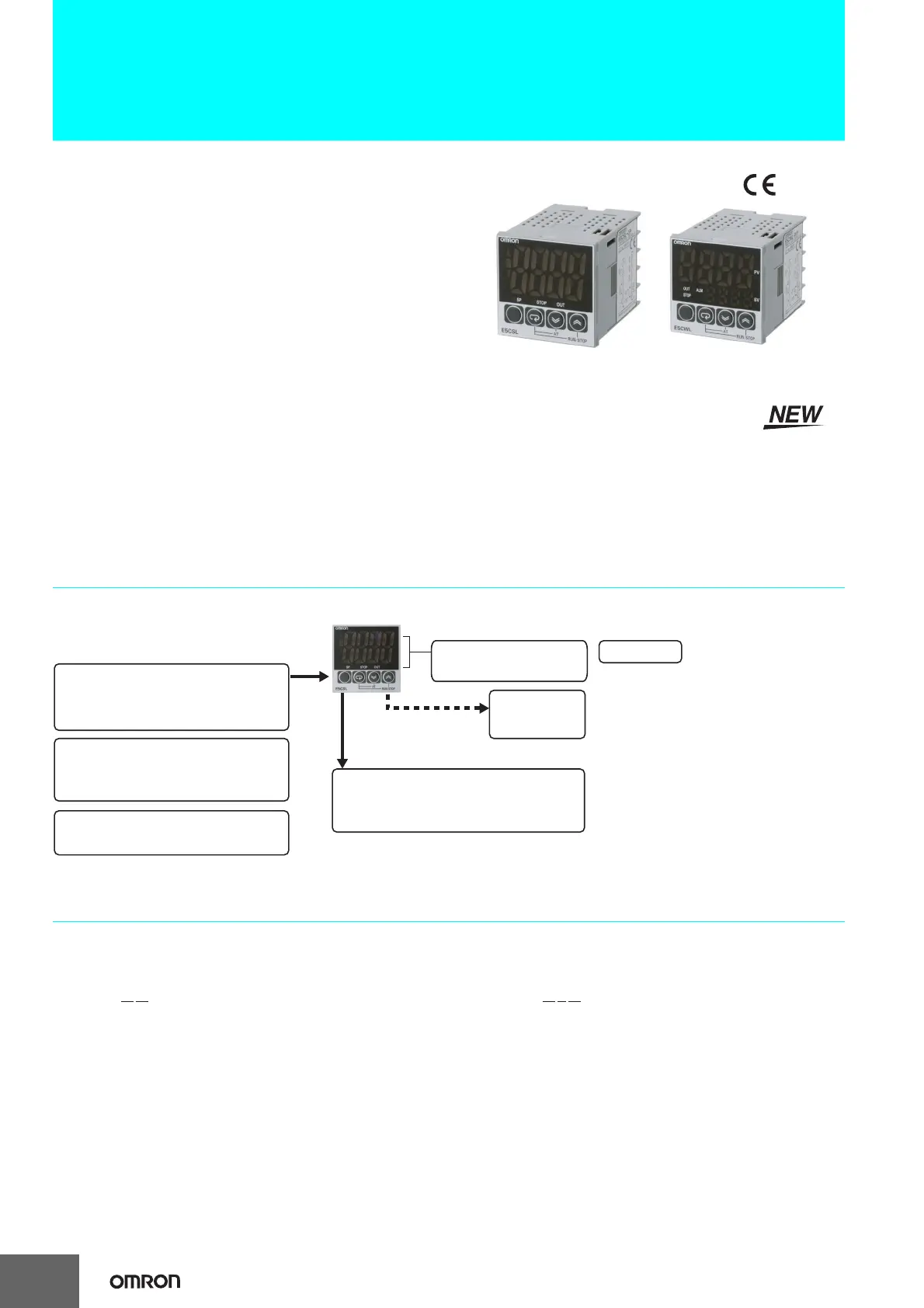

Temperature Controllers
E5CSL/E5CWL
The Simple and New Temperature
Controller is Released that Easily
Achieves the Temperature
Control.
• Easy to Read (Character Height E5CSL: 21.7 mm
E5CWL: 16.2 mm (PV)).
• Depth beyond front panel: Only 60 mm.
• Fewer parameters for simple setup.
• Faster sampling at 250 ms.
Note: Refer to Precautions on page 7.
Main I/O Functions
Model Number Structure
Model Number Legend
Models with Single Display
1. Control Output
R: Relay output: 250 VAC, 3 A
Q: Voltage output (for driving SSR): 12 VDC, 21 mA
2. Sensor type
TC: Thermocouple (K, J, T, R, or S)
P: Platinum resistance thermometer (Pt100)
Models with Dual Display
1. Control Output
R: Relay output: 250 VAC, 3 A
Q: Voltage output (for driving SSR): 12 VDC, 21 mA
2. Alarm (E5CWL only)
1: Relay output: 250 VAC, 1 A (resistive load)
3. Sensor type
TC: Thermocouple (K, J, T, R, or S)
P: Platinum resistance thermometer (Pt100)
48 × 48 mm
E5CSL
48 × 48 mm
E5CWL
Sensor Inputs
• Thermocouple inputs
• Pt inputs
Indication Accuracy
• Thermocouple input: ±0.5% of PV
• Pt input: ±0.5% of PV
Sampling Period
• 250 ms
Control Output 1
• Relay output
• Voltage output (for driving SSR)
Alarm Outputs
• One
Single Display: E5CSL
Dual Display: E5CWL
4-digit Display
E5CSL/E5CWL
*E5CWL only
12
E5CSL-@@
213
E5CWL-@1@
