2 - 65
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-2 Using the Terminals
2
2-2-10 Wiring
E5DC-B
E5GC
Auxiliary Outputs 1 to 4
• If heating/cooling control is selected for the E5CC, E5CC-U, E5CC-B, E5DC or E5DC-B when
there is only one control output, the auxiliary output 2 terminal is assigned as the control output for
cooling. (If the Digital Controller has only one auxiliary output, an output is not automatically
allocated for the control output for cooling.)
• If heating/cooling control is selected for the E5EC, E5EC-B, or E5AC when there is only one
control output, the auxiliary output 4 terminal is assigned as the control output for cooling. (If the
Digital Controller has only two auxiliary outputs, auxiliary output 2 is allocated as the control
output for cooling.)
• When heating/cooling control is selected for the E5GC, auxiliary output 1 is assigned as the
control output for cooling.

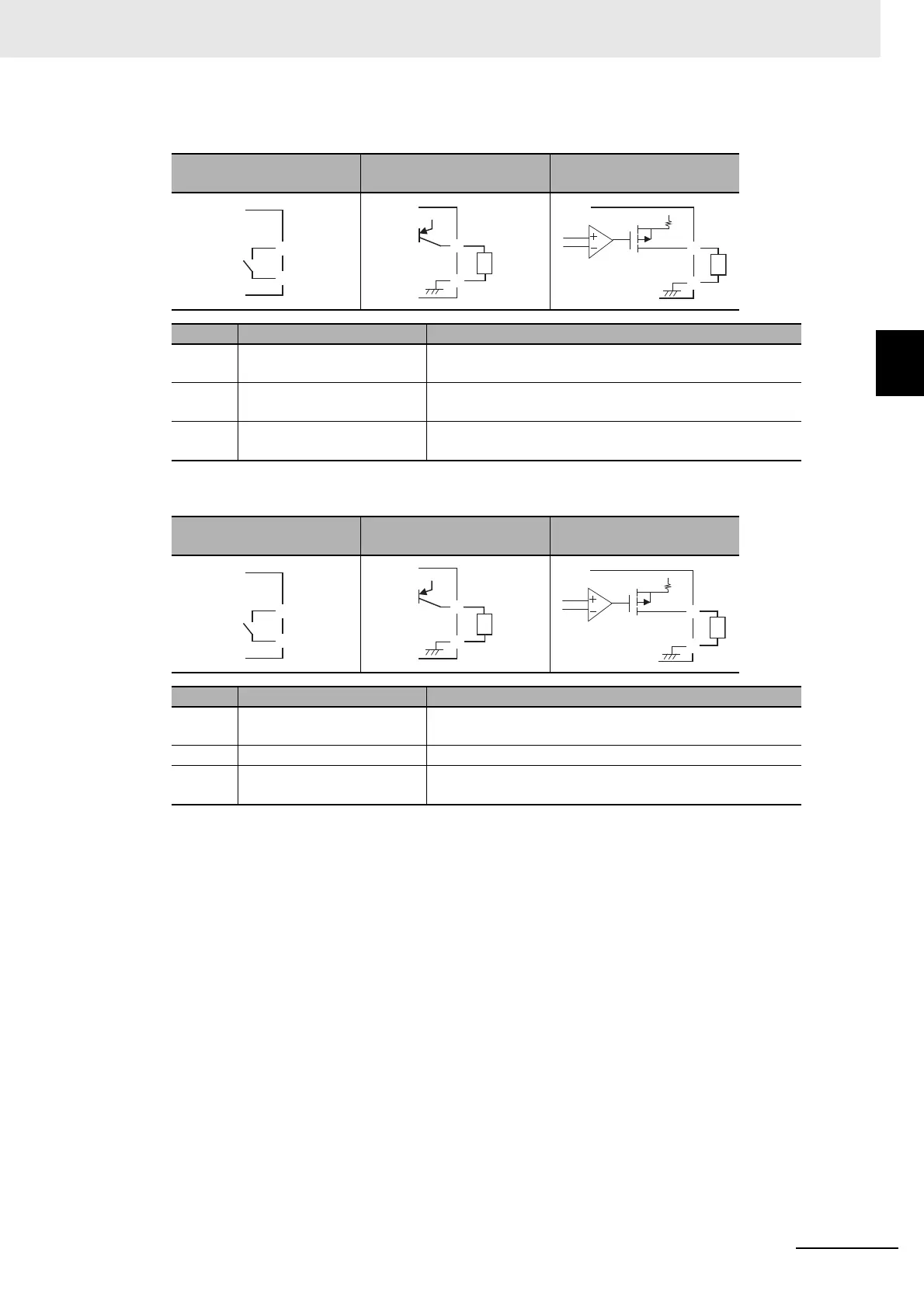

RX (relay output)
QX (voltage output (for
driving SSR))
CX (linear current output)
Code Output type Specification
RX Relay output SPST-NO, 250 VAC, 3 A (resistive load), Electrical life:
100,000 operations
QX Voltage output (for driving
SSR)
PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)
CX Linear current output 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:
Approx. 10,000
RX (relay output)
QX (voltage output (for
driving SSR))
CX (linear current)
Code Output type Specification
RX Relay SPST-NO, 250 VAC, 2 A (resistive load), Electrical
durability: 100,000 operations
QX Voltage (for driving SSR) PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)
CX Linear current 4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω max.
Resolution: Approx. 10,000
C
D
+v
+
-
L
C
D
+v
+
−
L
