5 Advanced Operations

5 - 72

E5@C Digital Temperature Controllers User’s Manual (H174)

Operating Procedure

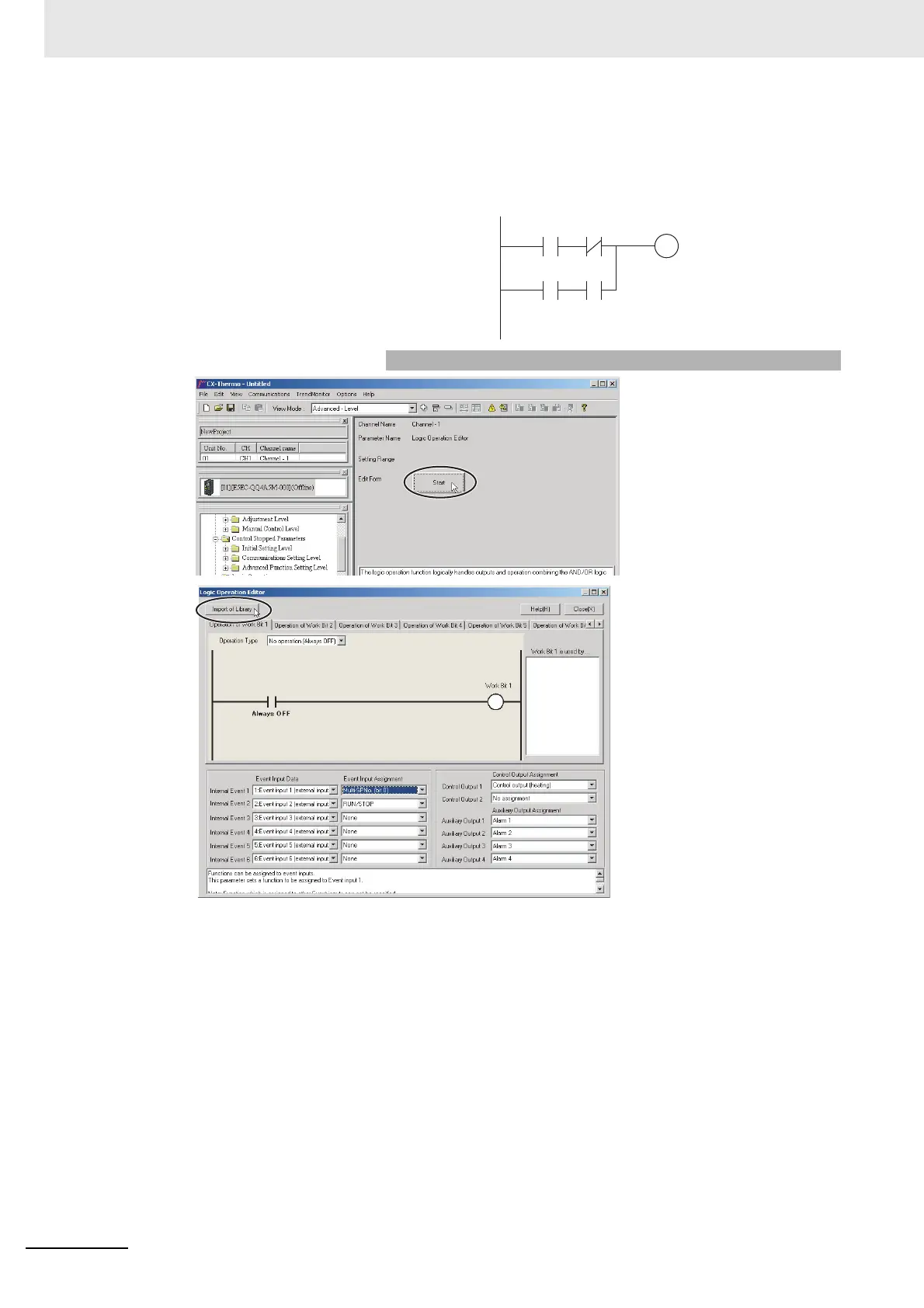

This procedure outputs alarm 1 status to auxiliary output 1 during

operation (RUN). A library object is used to make the setting.

1. Select Logic Operation

Editor from the CX-Thermo

tree, and click the Start

Button.

2. Click the Import of Library

Button.

Alarm 1

RUN/STOP

Work bit 1

Always OFF Always OFF
