Omron E5DC-RX0ASM-015 User Manual

2 - 43
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-2 Using the Terminals
2

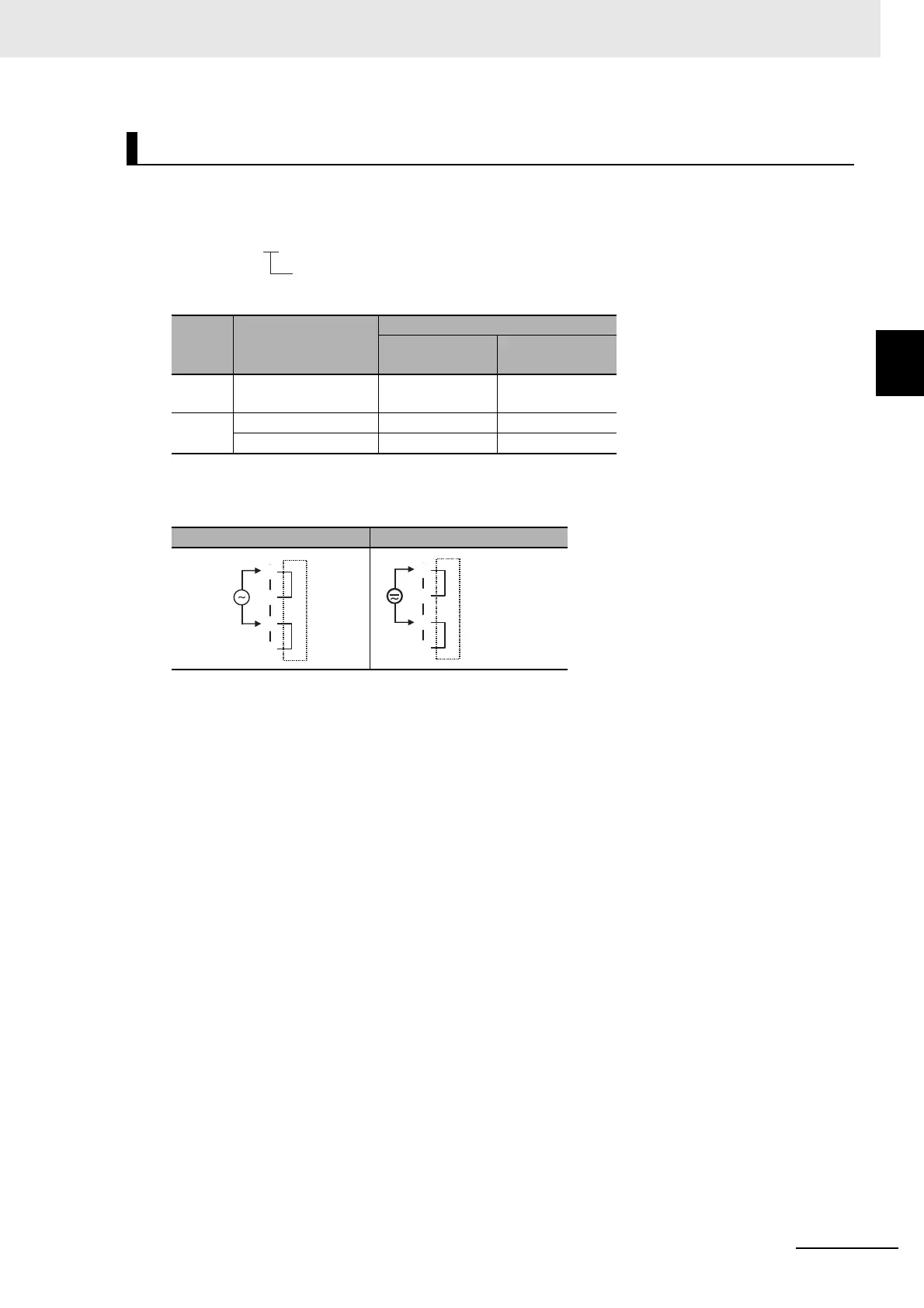

2-2-5 E5EC-B Terminal Block Wiring Example
 Model Numbers
The input power supply specification is given in the following location in the model number.
The codes that are given in the following table show the specification.
 Terminal Details
Details on the input power supply terminals are shown below.
* Common terminals are indicated with asterisks (*). You can use them for crossover wiring.
For crossover wiring, do not exceed the maximum number of Digital Controllers given below.
100 to 240 VAC Controllers: 16 max.
24 VAC/VDC Controllers: 8 max.
Input Power Supply
Code Specification
Power consumption
Options No.:
000
Options No.:
Not 000
A
100 to 240 VAC,
50/60 Hz
6.6 VA max. 8.3 VA max.
D
24 VAC, 50/60 Hz 4.1 VA max. 5.5 VA max.
24 VDC (no polarity) 2.3 W max. 3.2 W max.
100 to 240 VAC 24 VAC/DC
E5EC-@@ @ @ S M-@@@
Input power supply
A
B
C
D
*
*
(No polarity)
A
B
C
D
*
*
