2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-4 Using the Setup Tool Port
2
2-4-2 Connection Method

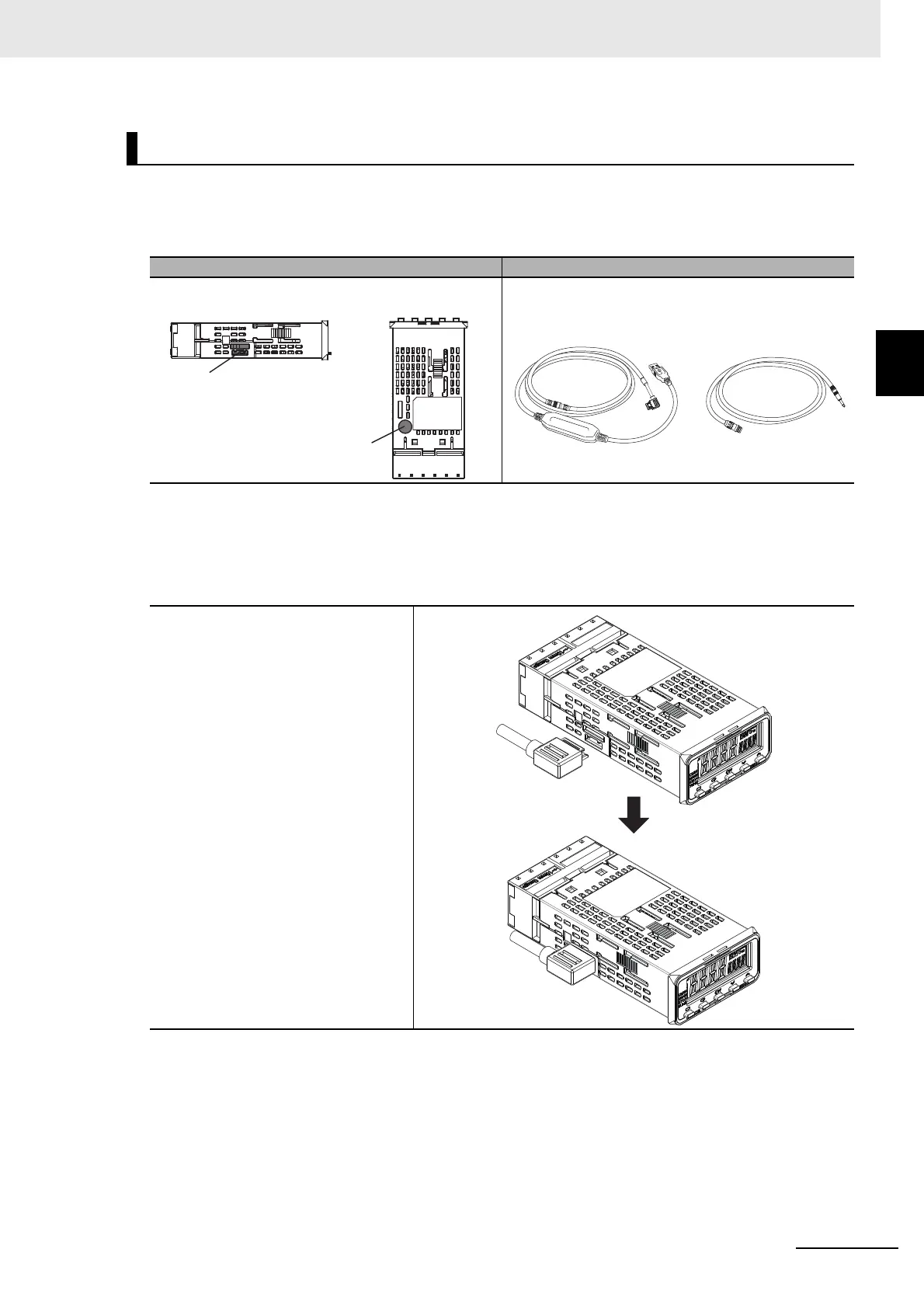

 Setup Tool Port and Connecting Cable
The locations of the Setup Tool ports on the E5GC and the required cables are shown below.
There are Setup Tool ports on both the left side panel and bottom panel of the Digital Controller.
* This Cable is required only to connect to the bottom-panel Setup Tool port.
 Connection Procedure
• Left-panel Port
E5GC
Setup Tool port Connecting cables
1 Connect the serial connector
to the Setup Tool port on the
left side panel of the Digital
Controller.
Digital Controller
Bottom Panel
Digital Controller
Left Side Panel
Left-panel Setup Tool port
Bottom-panel
Setup Tool port
E58-CIFQ2-E
Conversion Cable*
E58-CIFQ2
USB-Serial Conversion Cable
