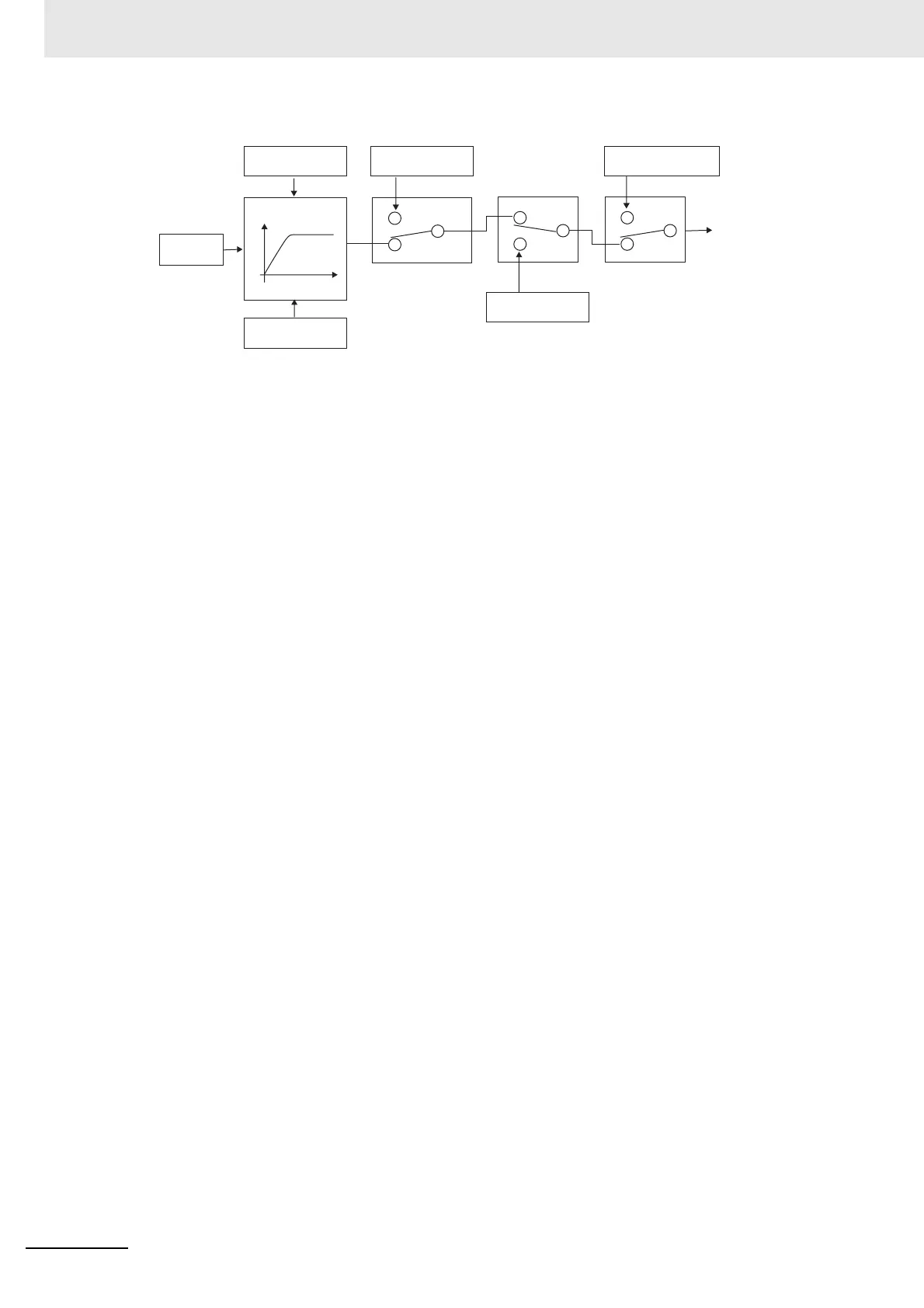

• The order of priority of the MV is illustrated in the following diagram.
* When the Manual MV Limit Enable parameter is set to ON, the setting range will be the MV lower limit to the
MV upper limit.
PID
calculations
MV upper limit
MV
Time
MV lower limit
MV at PV Error
Input error
RSP input error
Potentiometer input
error (close control)
RUN/STOP
MV at Stop
Manual MV*
Auto/Manual
Output
