5 Advanced Operations
5 - 72
E5@C Digital Temperature Controllers
User’s Manual (H174)
Operating Procedure
This procedure outputs alarm 1 stat
us to auxiliary output 1 during
operation (RUN). A library object is used to make the setting.

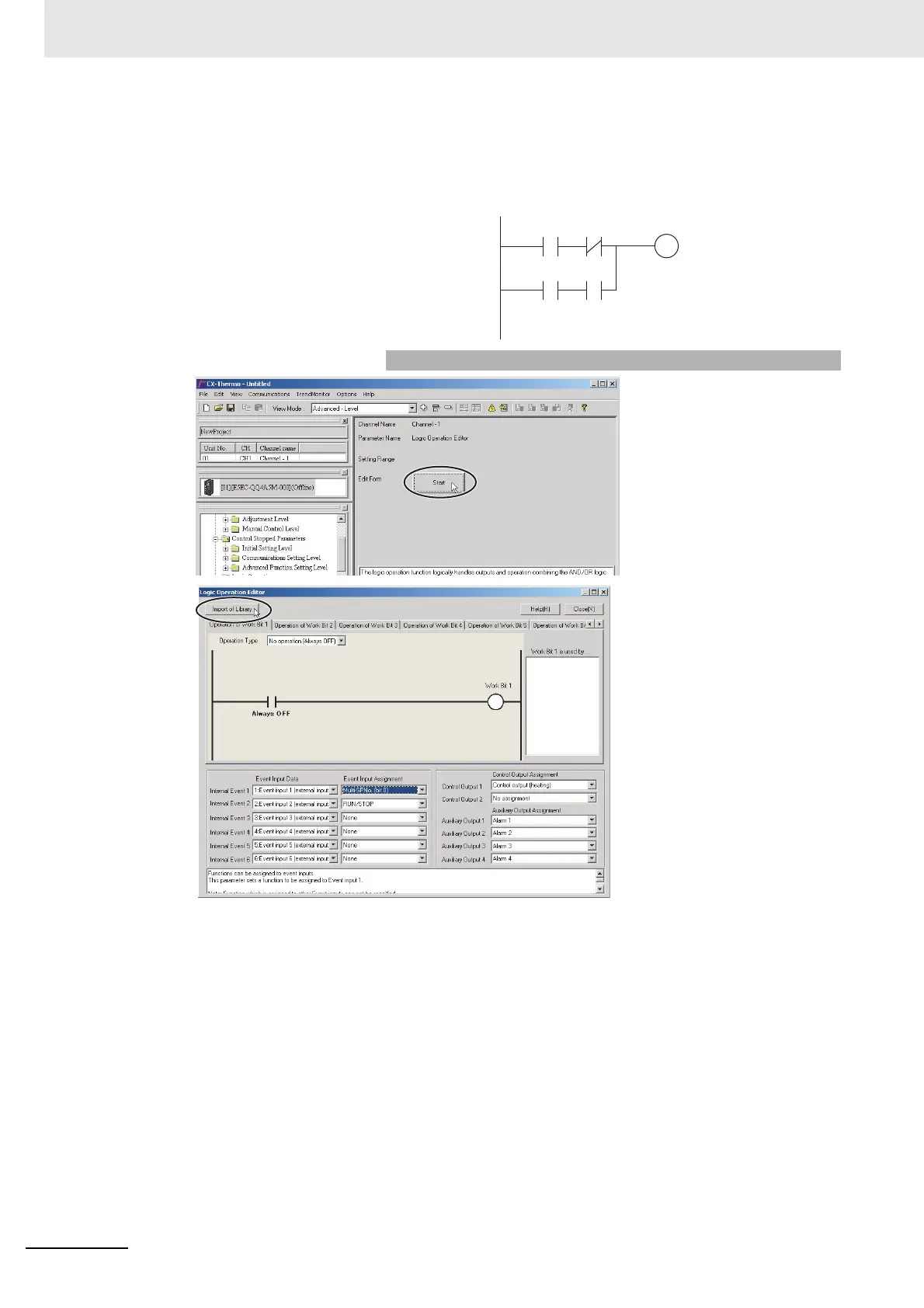

1.
Select
Logic Operation
Editor
from the CX-Thermo
tree, and click the
Start
Button.
2.
Click the
Import of Library
Button.
Alarm 1
RUN/STOP
Work bit 1
Always OFF
Always OFF
265
267
