2 Preparations
2 - 34
E5@C Digital Temperature Controllers User’s Manual (H174)

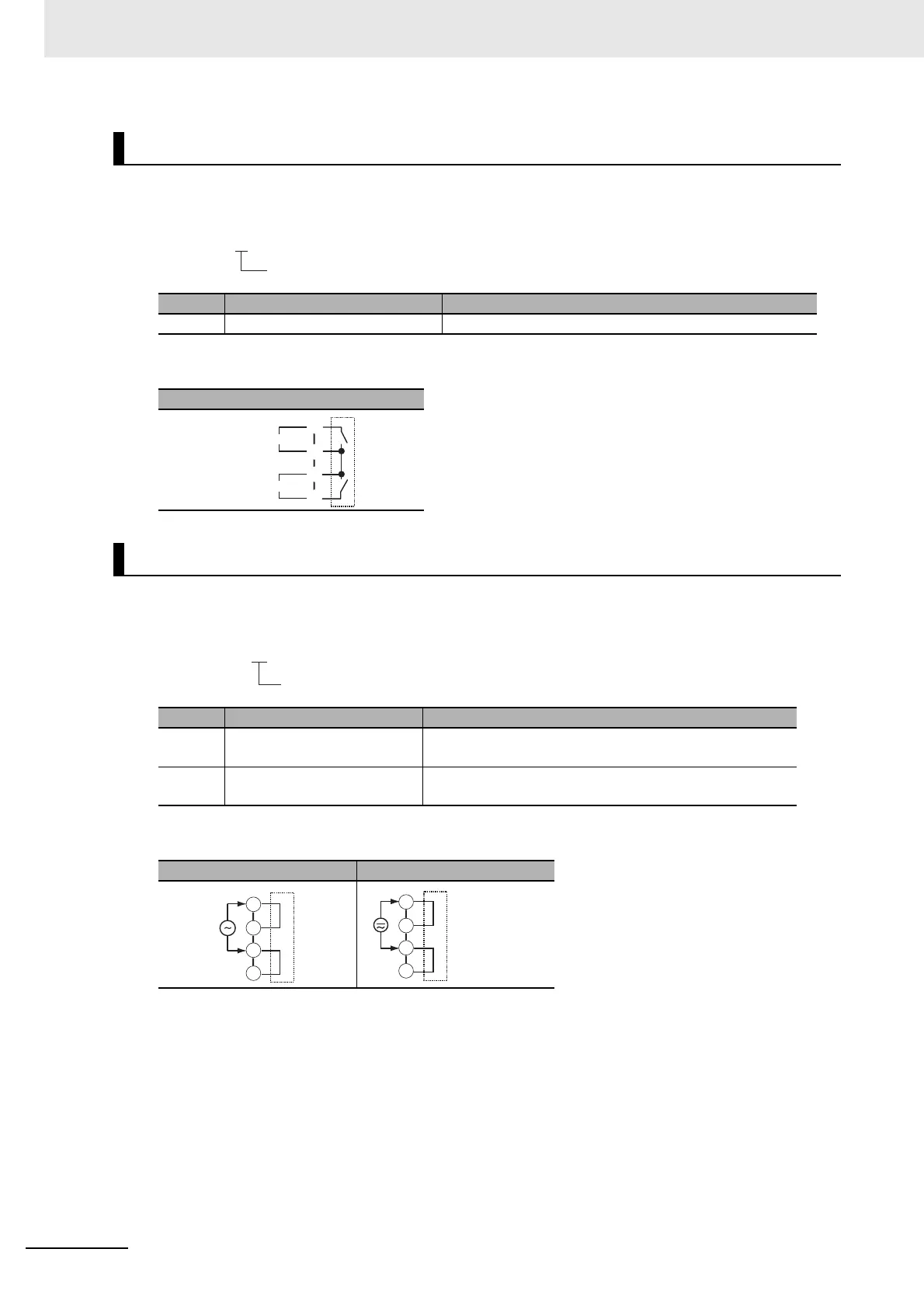

 Model Numbers
The number of auxiliary outputs on the E5CC-B is given in the following location in the model number.
 Terminal Details
* Common terminals are indicated with asterisks (*).
 Model Numbers
The input power supply specification of the E5CC-B is given in the following location in the model number.
 Terminal Details
* Common terminals are indicated with asterisks (*). You can use them for crossover wiring.
For crossover wiring, do not exceed the maximum number of Temperature Controllers given below.
100 to 240 VAC Controllers: 16 max.
24 VAC/VDC Controllers: 8 max.
Auxiliary Outputs
Code Auxiliary outputs Specification
2 Model with 2 auxiliary outputs SPST-NO, 250 VAC, 2 A
Model with 2 auxiliary outputs
Input Power Supply
Code Specification Power consumption
A 100 to 240 VAC, 50/60 Hz Option number 000: 5.2 VA max.
Other option numbers: 6.5 VA max.
D 24 VAC, 50/60 Hz
24 VDC (no polarity)
Option number 000: 3.1 VA max./1.6 W max.
Other option numbers: 4.1 VA max./2.3 W max.
100 to 240 VAC 24 VAC/DC
E5CC-@@ @ @ B M-@@@
No. of auxiliary outputs
I
K
J
L
*
Auxiliary output 2
Auxiliary output 1
E5CC-@@ @ @ B M-@@@
Input power supply
*
*
13
14
15
16
(No polarity)
*
*
13
14
15
16
