2 Preparations
2 - 60
E5@C Digital Temperature Controllers User’s Manual (H174)

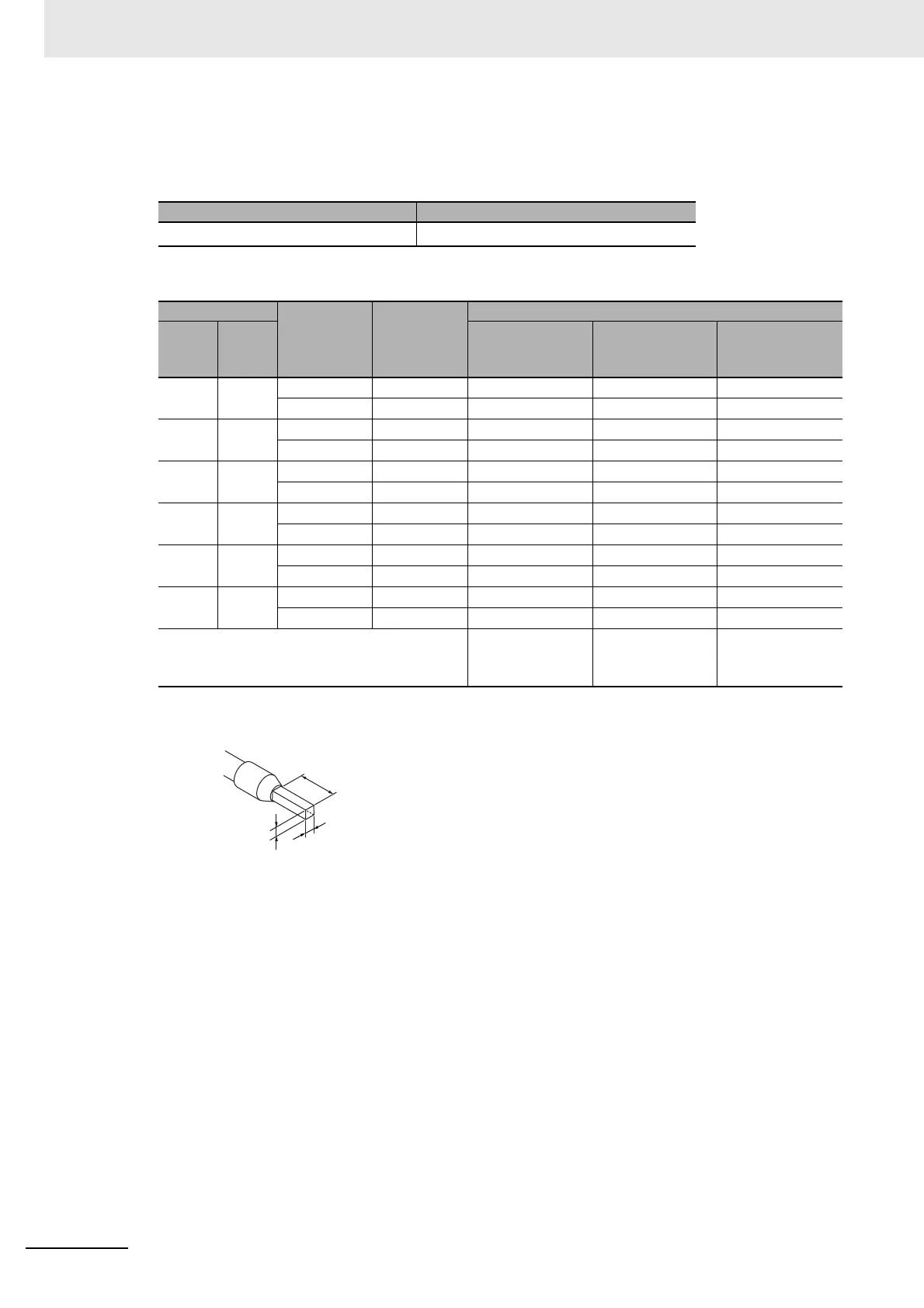

3. Recommended Wires, Ferrules and Crimp Tools
Recommended Wires (stranded or solid wires)
Recommended Ferrules
Note1: Make sure that the outer diameter of the wire coating is smaller than the inner diameter of the insulation
sleeve of the recommended ferrule.
2: Make sure that the ferrule processing dimensions conform to the following figures.
Recommended wires Stripping length (ferrules not used)
AWG24 to AWG16 (0.25 to 1.5 mm
2
)
8 mm
Applicable wire Ferrule
conductor
length
(mm)
Stripping
length (mm)
(ferrules
used)
Recommended ferrules
(mm
2
)
(AWG)
Manufactured by
Phoenix Contact
Manufactured by
Weidmuller
Manufactured by
Wago
0.25 24 8 10 AI0,25-8 H0.25/12 FE-0.25-8N-YE
10 12 AI0,25-10 --- ---
0.34 22 8 10 AI0,34-8 H0.34/12 FE-0.34-8N-TQ
10 12 AI0,34-10 --- ---
0.5 20 8 10 AI0,5-8 H0.5/14 FE-0.5-8N-WH
10 12 AI0,5-10 H0.5/16 FE-0.5-10N-WH
0.75 18 8 10 AI0,75-8 H0.75/14 FE-0.75-8N-GY
10 12 AI0,75-10 H0.75/16 FE-0.75-10N-GY
1 or
1.25
18 or
17
8 10 AI1-8 H1.0/14 FE-1.0-8N-RD
10 12 AI1-10 H1.0/16 FE-1.0-10N-RD
1.25 or
1.5
17 or
16
8 10 AI1,5-8 H1.5/14 FE-1.5-8N-BK
10 12 AI1,5-10 H1.5/16 FE-1.5-10N-BK
Recommended crimp tool
CRIMPFOX6
CRIMPFOX6T-F
CRIMPFOX10S
PZ6 roto Variocrimp4
8 to 10 mm
1.9 mm max.
2.6 mm max.
