2 Preparations

2 - 14

E5@C Digital Temperature Controllers User’s Manual (H174)

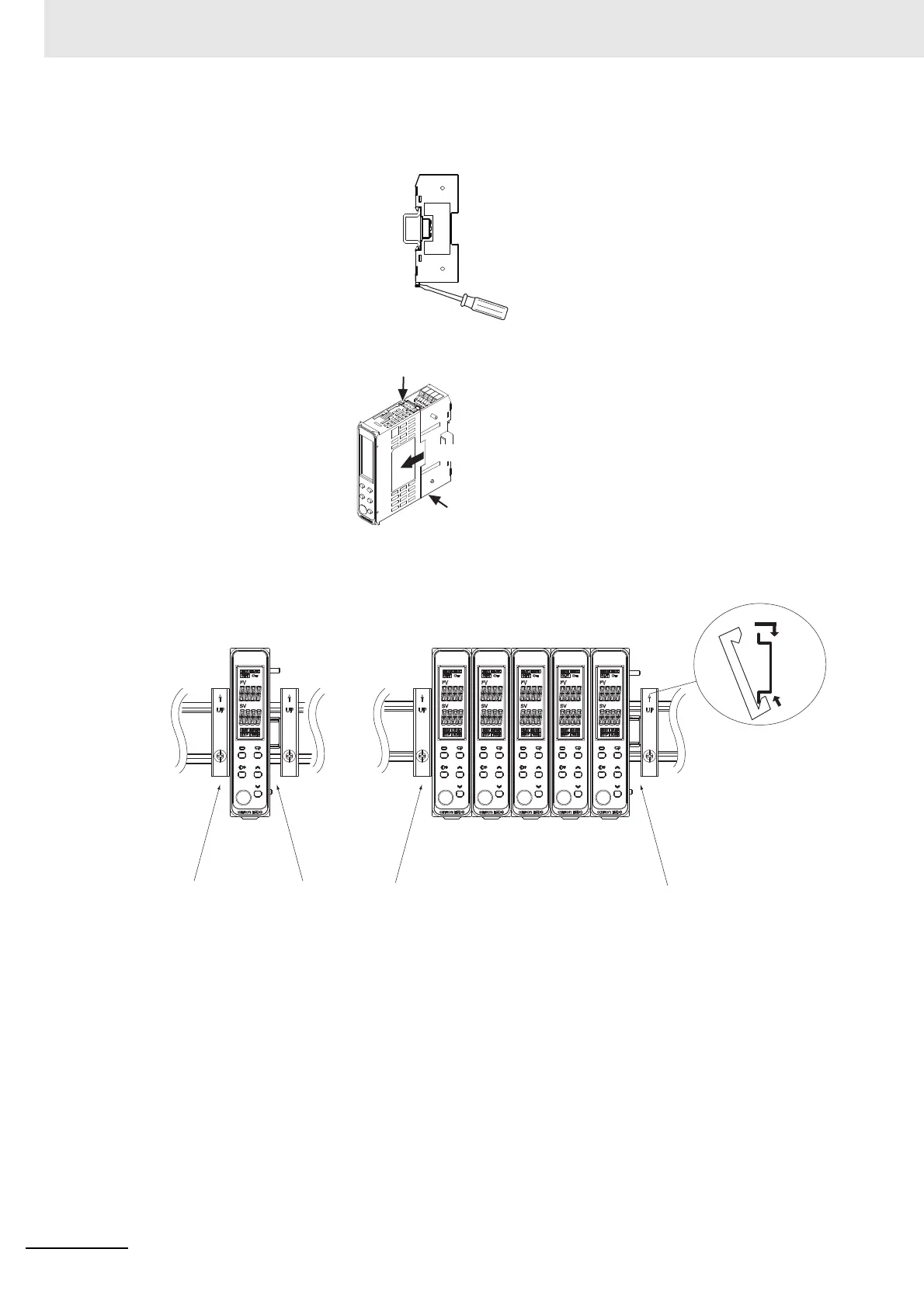

• Removing a Unit

Pull down on the DIN Track Hook with a flat-blade screwdriver and lift up the Unit.

 Removing the Main Unit

 End Plate Installation

Make sure to attach PFP-M End Plates to the ends of the Units.

 Mounting the DIN Track

Refer to Mounting the DIN Track on page 2-13.

(1)

(1) Push in the hooks.

(2) Pull out the Main Unit.

Individual Mounting Group Mounting

(1)

(2)
