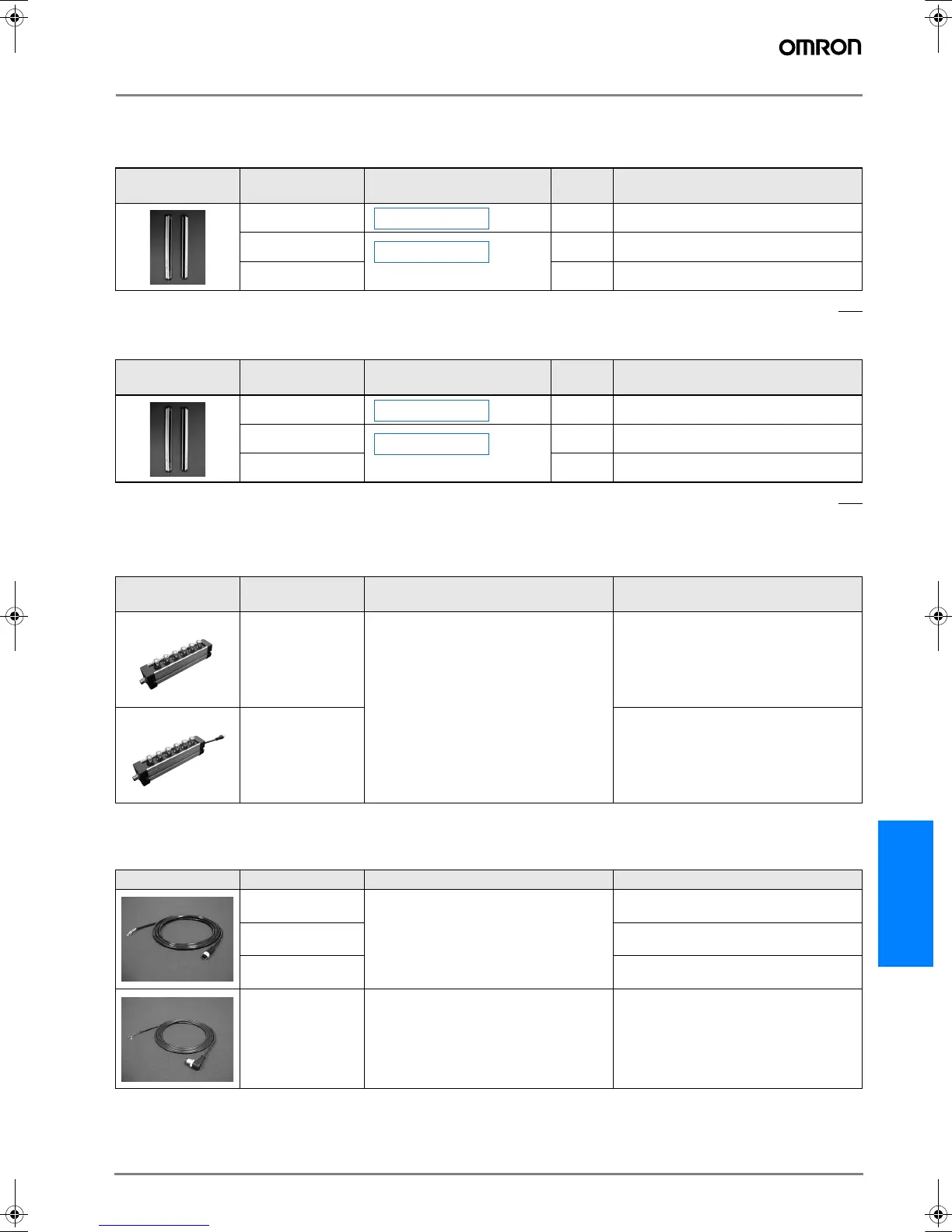

G-51F3S-TGR-SB@C series
F3S-TGR
List of Models
Safety Multi beam Sensors
F3S-TGR-SB2-K@C Mirror Reflection Type (Type 2)
F3S-TGR-SB4-K@C Mirror Reflection Type (Type 4)
Muting Connecting Box (Order Separately)
Flexible Connecting Box
Accessories (Order Separately)
Connector Cable
Shape Number of optical
axes
Sensing Distance Beam
Pitch
Model
2 500 F3S-TGR-SB2-K2C-500(MTL)*
*. If you want to have a ONE WAY direction Type, (see Page D-26) Please add the MTL behind of Model Name. Ex. F3S-TGR-SB4-K2C-500MTL
3 400 F3S-TGR-SB2-K3C-800(MTL)*
4 300 F3S-TGR-SB2-K4C-900(MTL)*
Shape Number of optical
axes
Sensing Distance Beam
Pitch
Model
2 500 F3S-TGR-SB4-K2C-500(MTL)*
*. If you want to have a ONE WAY direction Type, (see Page D-26) Please add the MTL behind of Model Name. Ex. F3S-TGR-SB4-K2C-500MTL
3 400 F3S-TGR-SB4-K3C-800(MTL)*
4 300 F3S-TGR-SB4-K4C-900(MTL)*
Appearance SLC Connection
Type
Other connection Model
M12 8pin connector
without cable
4 x Muting sensor connection (4pin)
1 x Muting Lamp M12 (4pin)
1 x Override/Test input M12 (4pin)
1 x cabinet connection M12 (8pin)
F39-TGR-SB-CMB1
M12 8pin connector
with 100 mm cable
F39-TGR-SB-CMB2
0.5 to 6 m
0.5 to 5 m
0.5 to 6 m
0.5 to 5 m
Appearance Cable length Specification Model
2 m
M12 connector (8pin Socket)
For cabinet connection
(From F3S-TGR-SB@-K@C or F3S-TGR-
SB-CMB@)
F39-TGR-SB4-CVLB2R
5 m F39-TGR-SB4-CVLB5R
10 m F39-TGR-SB4-CVLB10R
2 m
M12 connector (4pin Plug)
For Muting sensor, Muting Lamp connec-
tion and Override/Test connection
F39-TGR-SB4-CVLB2MC
